EVAL-BFBLUET-EZEXT

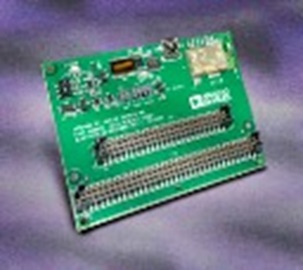

The Blackfin Bluetooth extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the Blackfin evaluation system by providing a connection to a Bluetooth module and isolating the low-level configuration and communication tasks of integrating Bluetooth and radio frequency (RF) wireless technologies. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

顶部

优势和特点

Analog Devices AD1836 –96 kHz audio codec
Five 3.5 mm audio jacks, stacked in one connector
Analog Devices ADV7179 video encoder
Analog Devices ADV7183B video decoder
Connection to Flat panel display Interface

产品详情

Blackfin Bluetooth EZ-Extender®子板可插至兼容的EZ-Board、EZ-KIT Lites和STAMP板上。 Blackfin Bluetooth EZ-Extender通过提供蓝牙模块连接来扩展Blackfin板的功能，同时隔离低层次配置，以及将蓝牙和射频(RF)无线技术集成到Blackfin板设计中的通信工作。

Bluetooth EZ-Extender可配合运行开源Linux操作系统(OS)的EZ-Board、EZ-KIT Lite或STAMP板使用。有关在Blackfin处理器上运行Linux操作系统的更多信息，请访问blackfin.uclinux.org/gf.

产品型号：
ADZS-BFBLUET-EZEXT

工具支持：
Blackfin uClinux

Contact Support

包装内含

Bluetooth EZ-Extender
(plugs directly onto an EZ-KIT Lite supporting the STAMP interface or an EZ-Board/EZ-Kit Lite supporting the expansion interface II connector)

系统需求

Windows^® 2000 SP4, Windows XP SP2, Windows Vista^™ or (from update 7) Windows 7 Business/Enterprise/Ultimate editions
Intel Pentium^® processor (x86 compatible), 1 GHz or faster
512 MB RAM and 2 GB available hard disk space
Linux kernel development host
