AD7641
PRODUCTION18-Bit, 2 MSPS SAR ADC
- Part Models
- 3
- 1ku List Price
- Starting From $38.79
Part Details
- 18-bit resolution with no missing codes
- 2.5 V internal low drift reference
Throughput:
2 MSPS (Warp mode)
1.5 MSPS (Normal mode) - Differential input range: ± VREF (VREF up to 2.5 V)
- INL: ±2 LSB typical
- No pipeline delay (SAR architecture)
- Parallel (18-, 16-, or 8-bit bus)
- Serial 5 V/3.3 V/2.5 V interface
- SPI®/QSPI™/MICROWIRE™/DSP compatible
- On-board low drift reference with buffer and temperature sensor
- See datasheet for additional features

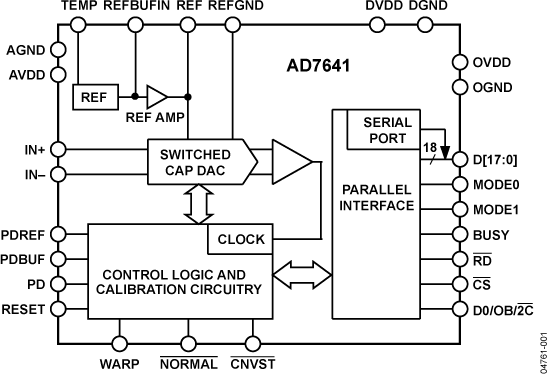

The AD7641 is a 18-bit, 2 MSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates from a single 2.5 V power supply. The part contains a high-speed 18-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. It features a very high sampling rate mode (Warp) and a fast mode (Normal) for asynchronous conversion rate applications.
The AD7641 is hardware factory calibrated and comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD) in addition to the more traditional dc parameters of gain, offset and linearity.
Operation is specified from −40°C to +85°C.
PRODUCT HIGHLIGHTS
- Fast Throughput.
The AD7641 is a 2 MSPS, charge redistribution, 18-bit SAR ADC. - Superior Linearity.
The AD7641 has no missing 18-bit code. - Internal Reference.
The AD7641 has a 2.048 V internal reference with a typical drift of ±10 ppm/°C and an on-chip TEMP sensor. - Single-Supply Operation.
The AD7641 operates from a 2.5 V single supply. - Serial or Parallel Interface.
Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.
APPLICATIONS
- Medical instruments
- High dynamic data acquisition
- Instrumentation
- Spectrum analysis
- ATE
Documentation
Data Sheet 1
Application Note 2
Technical Articles 1
Product Highlight 1
Frequently Asked Question 1
Product Highlight 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7641BCPZ | 48-Lead LFCSP (7mm x 7mm x 0.85mm w/ EP) | ||
| AD7641BSTZ | 48-Lead LQFP (7mm x 7mm) | ||
| AD7641BSTZRL | 48-Lead LQFP (7mm x 7mm) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jun 9, 2021 - 20_0126 Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea |
||
| AD7641BCPZ | PRODUCTION | |
|
Sep 13, 2017 - 16_0077 CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea. |
||
| AD7641BCPZ | PRODUCTION | |
|
Oct 18, 2016 - 16_0034 Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin |
||
| AD7641BSTZ | PRODUCTION | |
| AD7641BSTZRL | PRODUCTION | |
|
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages |
||
| AD7641BSTZ | PRODUCTION | |
| AD7641BSTZRL | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Differential Amplifiers 3 | ||
| AD8139 | RECOMMENDED FOR NEW DESIGNS | Low Noise, Rail-to-Rail, Differential ADC Driver |
| ADA4930-1 | RECOMMENDED FOR NEW DESIGNS |
Ultralow Noise Drivers for Low Voltage ADCs |
| AD8475 | PRODUCTION | Precision, Selectable Gain, Fully Differential Funnel Amplifier |
| Operational Amplifiers 6 | ||
| AD8031 | PRODUCTION | 2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier |
| AD8032 | PRODUCTION | 2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Dual Amplifier |
| ADA4841-1 | PRODUCTION | Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier |
| AD8021 | PRODUCTION | Low Noise, High Speed Amplifier for 16-Bit Systems |
| ADA4899-1 | PRODUCTION | Unity-Gain Stable, Ultralow Distortion, 1 nV/√Hz Voltage Noise, High Speed Op Amp |
| AD8022 | PRODUCTION | Dual High Speed, Low Noise Op Amp |
| Voltage References 5 | ||
| ADR291 | PRODUCTION | Low Noise Micropower Precision Voltage Reference (2.5 V) |
| ADR421 | PRODUCTION | Ultraprecision, Low Noise, 2.500 V XFET® Voltage References |
| ADR431 | PRODUCTION | Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
| AD780 | PRODUCTION | 2.5 V/3.0 V High Precision Reference |
| AD1582 | PRODUCTION | 2.5V Micropower, Precisions Series Mode Voltage References |
| Parts | Product Life Cycle | Description |
|---|---|---|
| AD4003 | PRODUCTION | 18-Bit, 2 MSPS/1 MSPS/500 kSPS, Easy Drive, Differential SAR ADCs |
Evaluation Kits
AD7641 Evaluation Board
Resources
Software
Latest Discussions
No discussions on AD7641 yet. Have something to say?
Start a Discussion on EngineerZone®
