ADGM1001

RECOMMENDED FOR NEW DESIGNS

0 Hz/DC to 34 GHz, SPDT MEMS Switches

Data Sheet (Rev. A) Product Selection Table

Viewing:

Part Details

ADGM1001: DC to 34 GHz
Insertion loss
- 0.8 dB (typical) at 18 GHz
- 1.5 dB (typical) at 34 GHz
IIP3: 76 dBm (typical)
Maximum RF power: 33 dBm
On resistance: 3.4 Ω (typical)
Maximum dc current: 200 mA
Actuation lifetime: 100 million cycles (minimum)

On switching time (t_ON): 200 μs (typical)
Integrated 3.3 V driver for simple control with parallel and SPI
Independently controllable switches
Space-saving integrated passive components

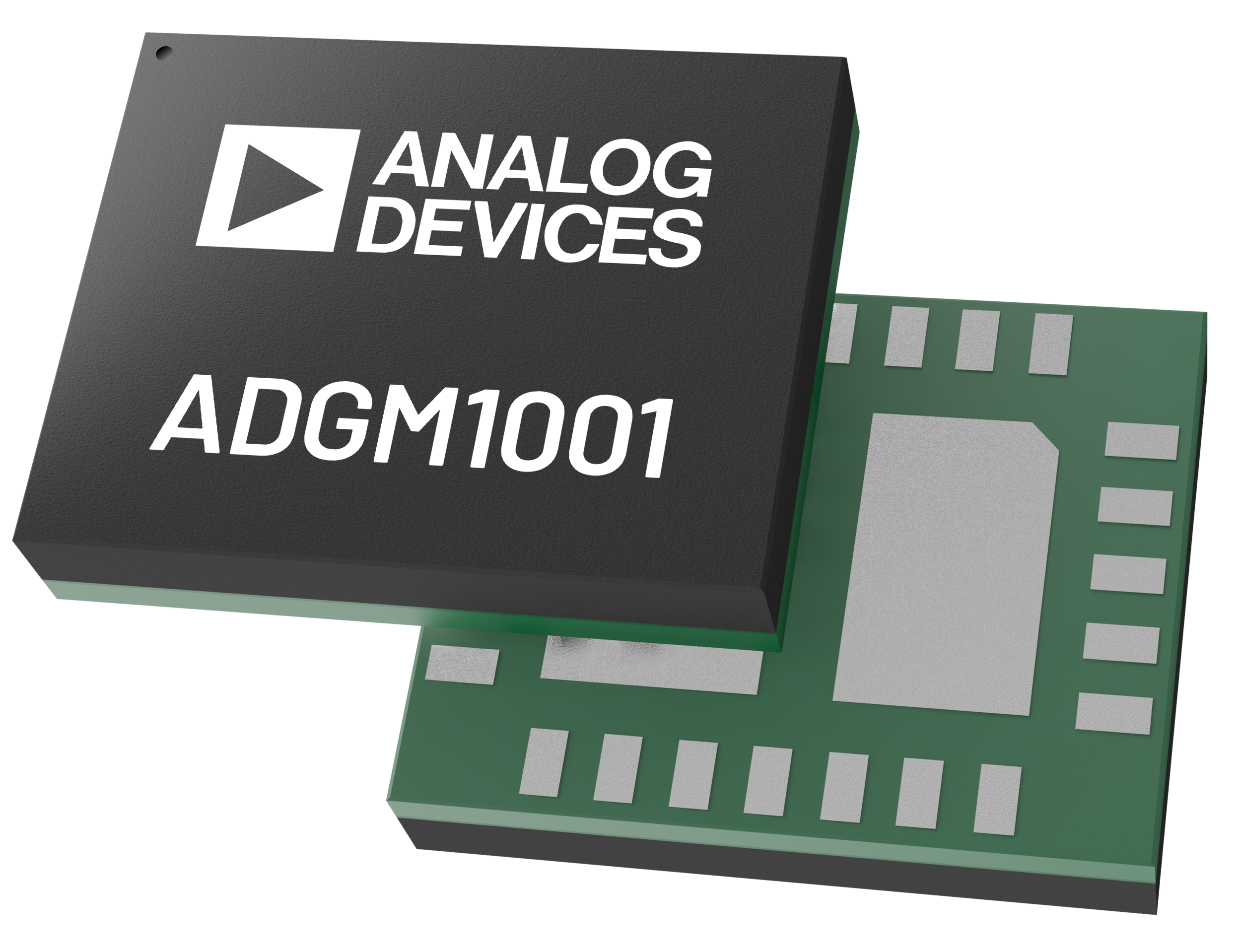

Small, 5.00 mm × 4.00 mm × 0.90 mm, 24-lead LGA package
Temperature range: –40°C to +85°C

The ADGM1001/ADGM1002/ADGM1003 is a wideband, single-pole, two-throw (SP2T) switch, fabricated using Analog Devices, Inc., micro-electromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0 Hz/dc, making it an ideal solution for a wide range of RF and precision equipment switching needs. The device is packaged in a 24-lead, 5.00 mm × 4.00 mm × 0.90 mm, land grid array (LGA) package.

An integrated control chip generates the high voltage necessary to electrostatically actuate the switch via a complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible parallel interface. All switches are independently controllable.

Multifunction pin names may be referenced by their relevant function only.

ADGM1001/ADGM1002/ADGM1003 Key Specifications
Model	Bandwidth	Maximum RF Power (dBm)	DC Signal Range (V)	Maximum DC Current (mA)
ADGM1001	DC to 34 GHz	33	±6	200
ADGM1002	DC to 20 GHz	30	±5	150
ADGM1003	DC to 16 GHz	27	±3	75

APPLICATIONS

ATE load and probe boards
DC and high speed loop back testing
Relay replacements
Reconfigurable filters and attenuators
Military and microwave radios
Cellular infrastructure: 5G mmWave
Supports digital standards: PCIe Gen4/Gen5/Gen6, USB 3 and USB 4, and PAM 4

Documentation

Data Sheet 1

ADGM1001/ADGM1002/ADGM1003: 0 Hz/DC to 34 GHz, SPDT MEMS Switches Data Sheet (Rev.A) 02/03/2023

User Guide 1

UG-2031: Evaluating the ADGM1001 0 Hz/DC to 34 GHz, SPDT, MEMS Switch (Rev.0) 04/13/2022

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Automatic Test Equipment (ATE) 1
AD5522	PRODUCTION	Quad Parametric Measurement Unit With Integrated 16-Bit Level Setting DACs
LDO Linear Regulators 3
LT3045-1	RECOMMENDED FOR NEW DESIGNS	20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator with VIOC Control
LT1962	RECOMMENDED FOR NEW DESIGNS	300mA, Low Noise, Micropower LDO Regulators
ADP7142	RECOMMENDED FOR NEW DESIGNS	40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator

MEMS Switches 2
ADGM1304	RECOMMENDED FOR NEW DESIGNS	0 Hz/dc to 14 GHz, Single-Pole, Four-Throw MEMS Switch with Integrated Driver
ADGM1004	RECOMMENDED FOR NEW DESIGNS	0 Hz/DC to 13 GHz, 2.5 kV HBM ESD, SP4T, MEMS Switch with Integrated Driver

Tools & Simulations

LTspice 1

ADGM1001 - Switches and Multiplexers

Models for the following parts are available in LTspice:

ADGM1001

S-Parameter 1

ADGM1001 s-parameter

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADGM1001 0 Hz/DC to 34 GHz, SPDT, MEMS Switch

Buy Now View Details

Features and Benefits

Single-supply voltage: 3.3 V
Wide frequency range: DC to 34 GHz
SMA connectors for RF signals
Parallel interface and SPI
On-board CALIBRATION THRU transmission line for analyzer calibration

Product Details

The user guide describes the EVAL-ADGM1001SDZ evaluation board for the ADGM1001, a dual-chip, RF switching solution containing a single-pole, two-throw (SPDT), microelectromechanical systems (MEMS) switch, and a control chip copackaged in a compact, 5.00 mm × 4.00 mm × 0.90 mm, LGA package.

The SPDT switch uses Analog Devices, Inc., MEMS switch technology, providing optimum performance in terms of bandwidth, power handling capability, and linearity for RF applications. The control chip generates the high voltage signals needed for the MEMS switch and allows the user to control its operation through a simple and flexible complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compliant parallel interface as well as via a serial peripheral interface (SPI). It is possible to daisy-chain multiple ADGM1001 devices together to enable the configuration of multiple devices with a minimal number of digital lines.

For SPI, the EVAL-ADGM1001SDZ connects to the USB port of a PC via the SDP board. The EVAL-SDP-CB1Z board (SDP-B controller board) is available to order at via the Analog Devices website at www.analog.com/SDP-B.

The EVAL-ADGM1001SDZ comes fitted with connectors for RF and control signals as well as links to control the operation of the switch and evaluate its performance.

For full details on the ADGM1001, see the ADGM1001 data sheet, which should be consulted in conjunction with the user guide when using the EVAL-ADGM1001SDZ evaluation board.
