ADRF5347
RECOMMENDED FOR NEW DESIGNSHigh Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz
- Part Models
- 3
- 1ku List Price
- Starting From $11.80
Part Details
- Low insertion loss
- 0.35 dB to 2.8 GHz typical
- 0.42 dB to 3.8 GHz typical
- High input linearity, IP3: 84 dBm typical
- High power handling at TCASE = 105°C
- Long-term (>10 years) average
- Continuous wave power: 39 dBm
- LTE signal
- Average power: 39 dBm
- Peak power: 49 dBm
- Fast 0.1 dB settling time : 720 ns typical
- ESD ratings
- HBM: 1000 V, Class 1B
- CDM: 750 V, Class C4
- Positive control, LVCMOS-/LVTTL- compatible

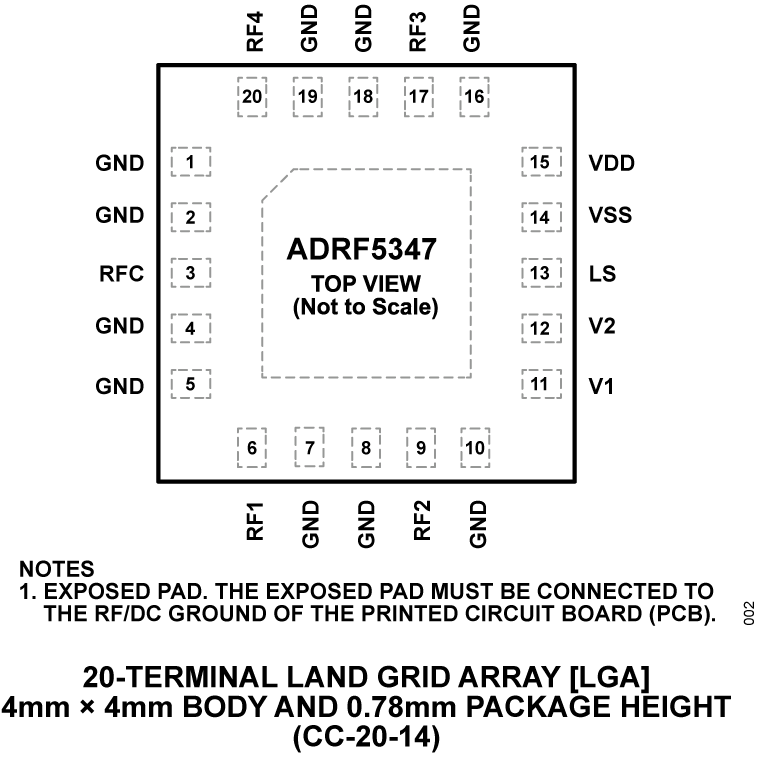

- 4 mm x 4 mm, 20-terminal LGA package

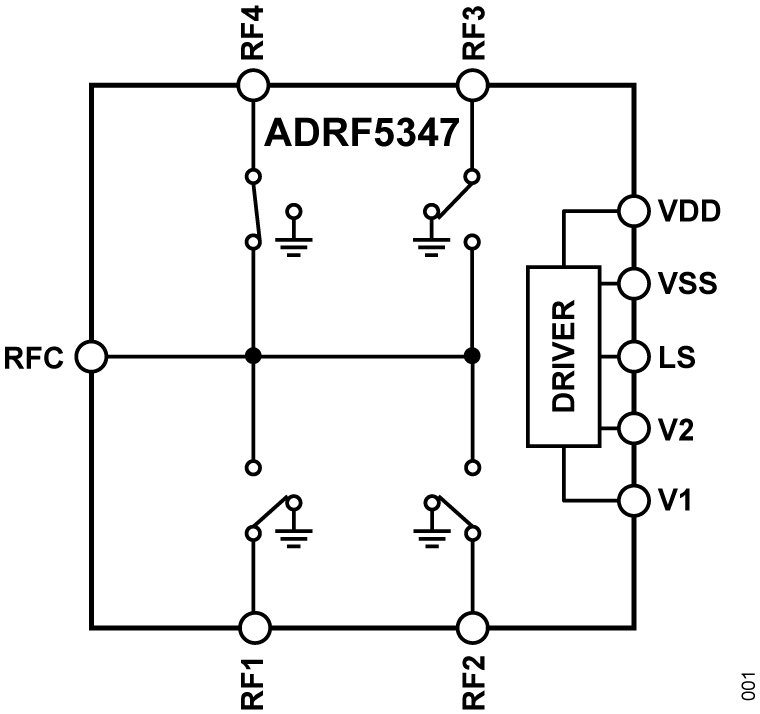

The ADRF5347 is a high linearity, reflective, single-pole, four-throw (SP4T) switch manufactured in the silicon process.
The ADRF5347 operates from 1.8 GHz to 3.8 GHz with a typical insertion loss lower than 0.42 dB and a typical input IP3 of 84 dBm. The device has an RF input power handling capability of 39 dBm for continuous wave signals and 39 dBm average and 49 dBm peak for long-term evolution (LTE) signals.
The ADRF5347 draws a current of 2.5 mA on the positive supply of +5.0 V and 0.4 mA on the negative supply of −3.4 V. The device employs low voltage complementary metal-oxide semiconductor (LVCMOS)-/low voltage transistor-to-transistor logic (LVTTL)- compatible controls.
The ADRF5347 comes in a 4 mm × 4 mm, 20-terminal, RoHS-compliant, land grid array (LGA) package and operates between −40°C to +105°C.
Excellent return loss and IP3 enable ADRF5347 to be used in back-to-back configuration for phase shifting architectures. See the Back-to-Back Phase Shifter Reference Design section for more information.
APPLICATIONS
- 5G antenna tilting and beamforming
- Wireless infrastructure
- Military and high reliability applications
- Test equipment
- Pin diode replacement
Documentation
Data Sheet 1
User Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADRF5347BCCZN | 20-Terminal LGA (4 mm × 4 mm w/ EP) | ||
| ADRF5347BCCZN-R7 | 20-Terminal LGA (4 mm × 4 mm w/ EP) | ||
| ADRF5347BCCZN-RL | 20-Terminal LGA (4 mm × 4 mm w/ EP) |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
S-Parameter 1
Evaluation Kits

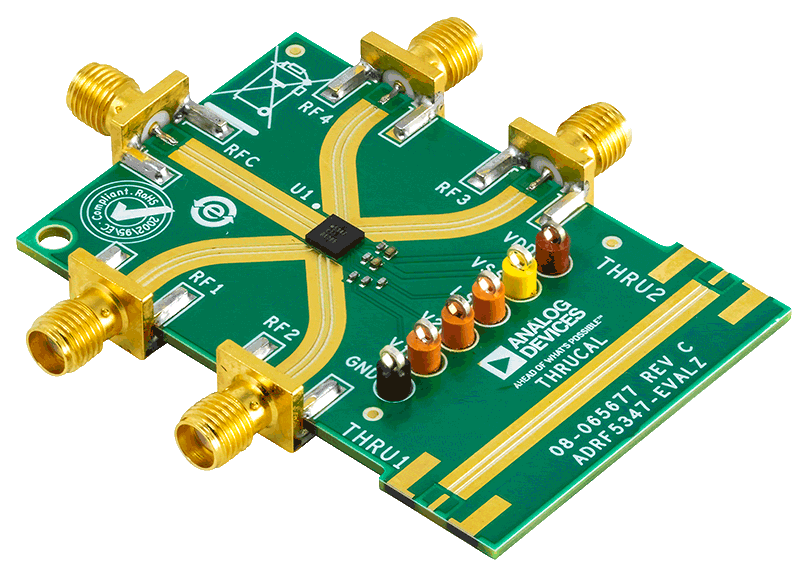

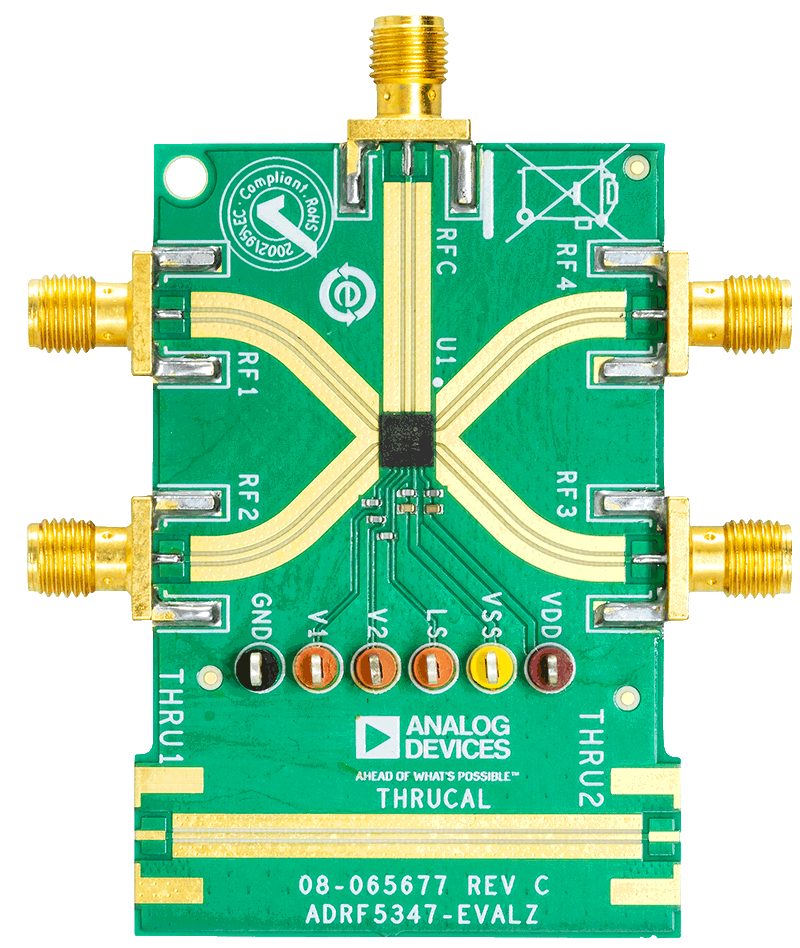

Evaluation of the ADRF5347 High Linearity, Silicon SP4T Switch, 1.8 GHz to 3.8 GHz
