ADSD3030

RECOMMENDED FOR NEW DESIGNS

VGA, CMOS, Time of Flight, Backside Illumination Sensor

Viewing:

Part Details

  • 512 (horizontal) × 640 (vertical) pixel array
  • 3.5 μm × 3.5 μm square pixels
  • 1/6 inch optical format
  • 4-wire SPI or 2-wire I2C serial interface
  • MIPI CSI-2 transmitter interface with support for 1 or 2 data lanes, programmable up to 2.5 Gbps per lane
  • Dual, 3.3 V and 1.2 V external supplies, 1.8 V input and output section
  • Die size: 3.749 mm± 0.01 mm × 6.4544 mm ± 0.01 mm
ADSD3030
VGA, CMOS, Time of Flight, Backside Illumination Sensor

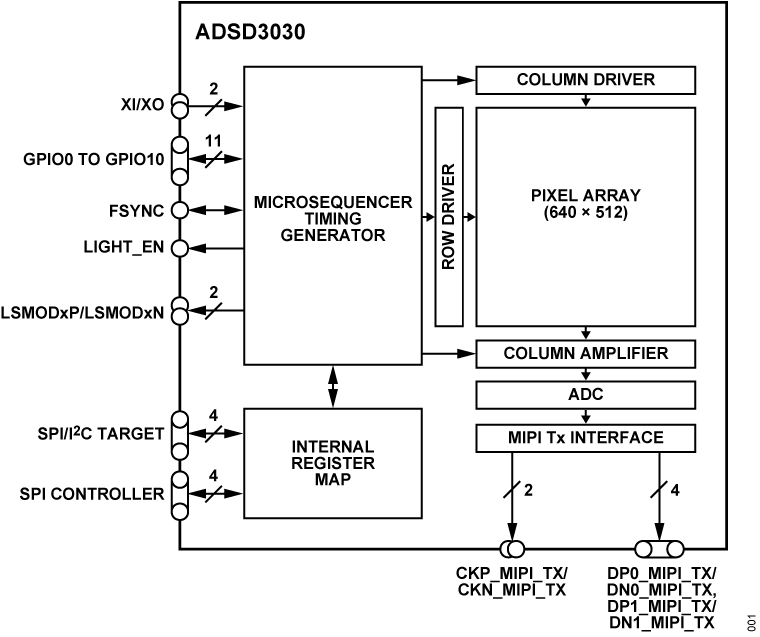

ADSD3030 Chip Image ADSD3030 Functional Block Diagram
