ADV3227

PRODUCTION

750 MHz, 16 × 16 Analog Crosspoint Switch

Data Sheet (Rev. B)

Part Models: 1
1ku List Price: Starting From $62.97

Viewing:

Part Details

16 × 16 high speed, nonblocking switch array
Pinout and functionally equivalent to the AD8114 / AD8115
Complete solution
- Buffered inputs
- Programmable high impedance outputs
- 16 output amplifiers, G = +1 (ADV3226), G = +2 (ADV3227)
- Drives 150 Ω loads
Operates on ±5 V supplies
Low power: 1.3 W

Excellent ac performance
- −3 dB bandwidth, 200 mV p-p:
  - 200 mV p-p: 820 MHz (ADV3226), 750 MHz (ADV3227)
  - 2 V p-p: 600 MHz (ADV3226), 750 MHz (ADV3227)
- Slew rate: 2150 V/μs (ADV3226), 2950 V/μs (ADV3227)
Serial or parallel programming of switch array

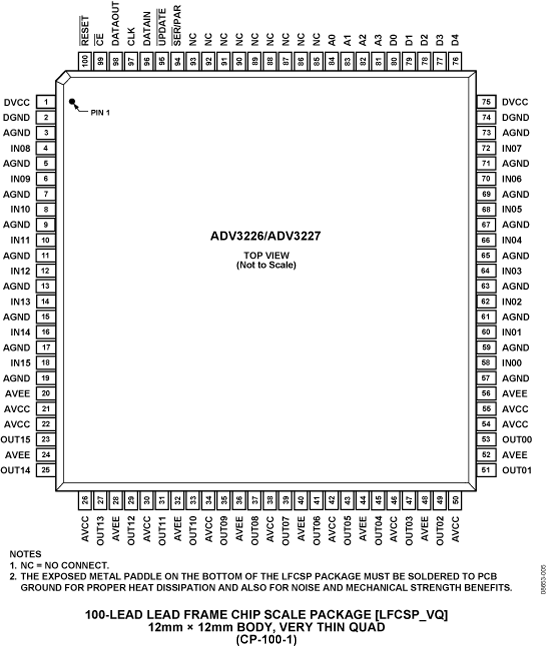

100-lead LFCSP (12 mm × 12 mm)

Part Models: 1
1ku List Price: Starting From $62.97

Documentation

Data Sheet 1

ADV3226/ADV3227: 750 MHz, 16 × 16 Analog Crosspoint Switch Data Sheet (Rev.B) 07/22/2024

User Guide 1

UG-767: Evaluation Board for the ADV3226/ADV3227 Analog Crosspoint Switches 03/11/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADV3227ACPZ	100-Lead LFCSP (12mm x 12mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 13, 2016 - 15_0027 Assembly Transfer of Large Body Punched LFCSP Products to Amkor Philippines
		PCN15_0027_Form Material_Report Qualification Results Summary Qualification Results Summary
ADV3227ACPZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

ADV3227 Evaluation Board

Buy Now View Details

Features and Benefits

Full-featured evaluation board for the ADV3226/ADV3227
On-board USB port for inputs and outputs control
±5 V operation

Product Details

The ADV3227 is a high speed, 16 × 16 analog crosspoint switch matrice. It offers a −3 dB signal bandwidth of greater than 750 MHz and channel switch times of less than 20 ns with 1% settling.

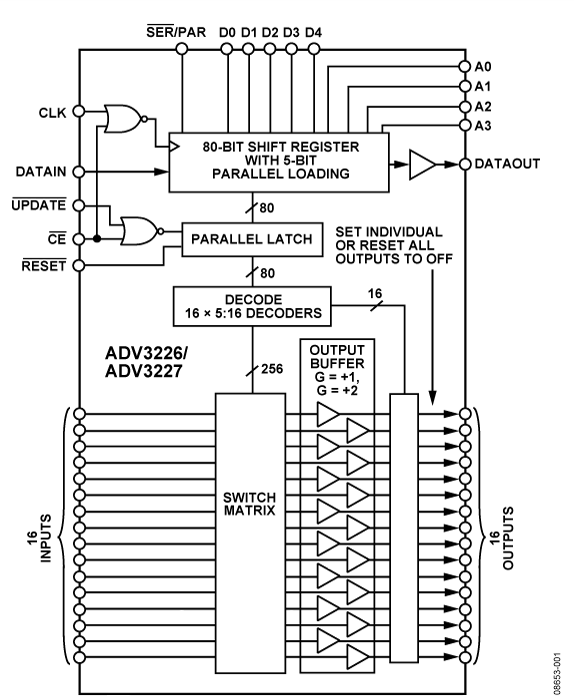

The ADV3227 include 16 independent output buffers that can be placed into a high impedance state for paralleling crosspoint outputs to prevent off channels from loading the output bus. The ADV3227 has a gain of +2. They both operate on voltage supplies of ±5 V while consuming only 133 mA of idle current. Channel switching is performed via a serial digital control that can accommodate the daisy chaining of several devices or via a parallel control to allow updating of an individual output without reprogramming the entire array.

The ADV3227 are available in 100-lead LFCSP packages over the extended industrial temperature range of −40°C to +85°C. Some applications of these analog crosspoint switches include routing high speed video signals (NTSC, PAL, SECAM, YUV, RGB, MPEG, and wavelet), data communications, and telecommunications.

Full specifications on the ADV3226/ADV3227 are available in the product data sheet, which should be consulted in conjunction with this user guide when working with the evaluation board.
