ADV3228

PRODUCTION

750 MHz, 8 × 8 Analog Crosspoint Switch

Data Sheet (Rev. B)

Part Models: 1
1ku List Price: Starting From $21.77

Viewing:

Part Details

8 × 8 high speed, non-blocking switch array
Pinout and functionally equivalent to the AD8108/AD8109
Drop-in compatible with ADV3224/ADV3225 16 x 8 array
Complete solution
Buffered inputs
Programmable high impedance outputs
8 output amplifiers, G = +1 (ADV3228), G = +2 (ADV3229)
Drives 150 Ω loads
Operates on ±5 V supplies
Low power: 0.5 W
Excellent ac performance - Please see data sheet for additional information.
Serial or parallel programming of switch array
72-lead LFCSP (10 mm x 10 mm)

Part Models: 1
1ku List Price: Starting From $21.77

Documentation

Data Sheet 1

ADV3228/ADV3229: 750 MHz, 8 × 8 Analog Crosspoint Switch Data Sheet (Rev.B) 11/23/2010

User Guide 1

UG-766: Evaluation Board for the ADV3224/ADV3225/ADV3228/ADV3229 Analog Crosspoint Switch 12/08/2014

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADV3228ACPZ	72-Lead LFCSP (10mm x 10mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

ADV3228 Evaluation Board

Buy Now View Details

Features and Benefits

Full featured evaluation board for theADV3224/ADV3225/ADV3228/ADV3229
On-board USB port for inputs and outputs control
±5 V operation

Product Details

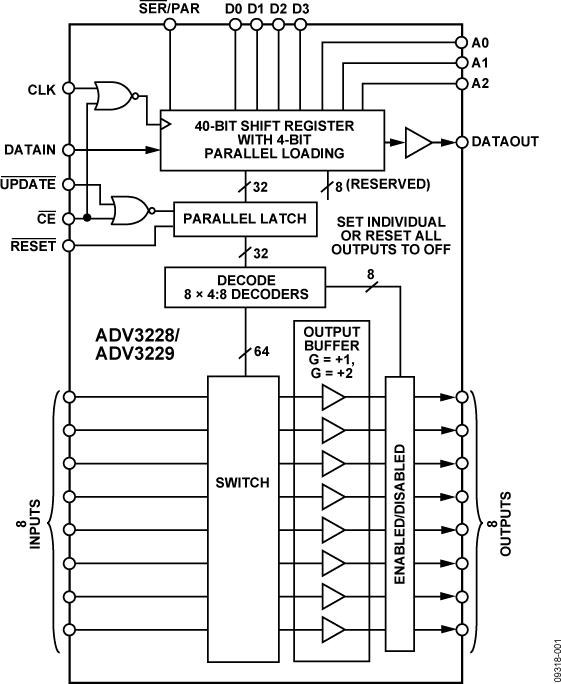

The ADV3228 is a 8 × 8, analog crosspoint switch matrice. This device offer a −3 dB signal bandwidth of greater than 750 MHz and a high slew rate of greater than 2500 V/µs.

The ADV3228 include eight independent output buffers that can be placed into a high impedance state for paralleling crosspoint outputs to prevent off channels from loading the output bus. The ADV3228 have a gain of 1, and device operate on voltage supplies of ±5 V. Channel switching is performed via a serial digital control that accommodates the daisy chaining of several devices, or via a parallel control to allow updating of an individual output without reprogramming the entire array.

The ADV3228 are available in a 72-lead LFCSP package over the extended industrial temperature range of −40°C to +85°C. Applications of these analog crosspoint switches include routing high speed video signals (NTSC, PAL, SECAM, YUV, RGB, MPEG, and wavelet), data communications, and telecommunications.

Full specifications on these products are available in the ADV3224/ADV3225 and ADV3228/ADV3229 data sheets, which should be consulted in conjunction with this user guide when working with the evaluation board.
