HMC661

RECOMMENDED FOR NEW DESIGNS

Ultra Wideband 4 GS/s Track-and-Hold Amplifier, DC - 18 GHz

Data Sheet Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

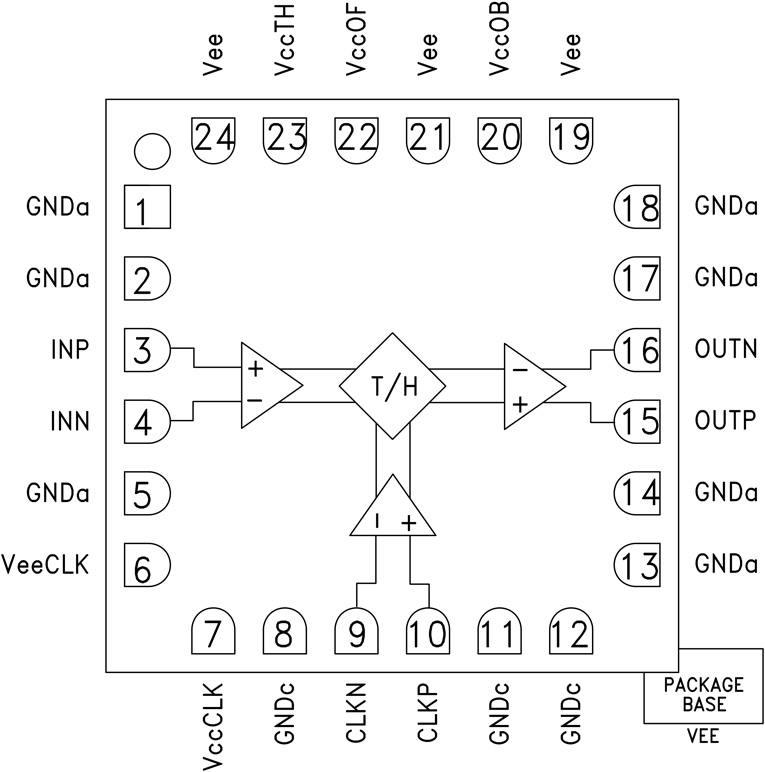

Part Details

18 GHz Input bandwidth (1 Vp-p Full Scale)
4 GS/s Maximum Sampling Rate
68 dB SFDR (4 GHz / 0.5 Vp-p Input, CLK = 1 GS/s)
57 dB SFDR (4 GHz / 1 Vp-p Input, CLK = 1 GS/s)
Direct-Coupled I/O

Ultra-Clean Output Waveforms, Minimal Glitching
>60 dB Hold Mode Feedthrough Rejection
1.05 mV RMS Hold Mode Output Noise
Single / Dual Rank Evaluation Boards are Available
RoHS Compliant 4x4 mm SMT Package

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC661 Data Sheet 07/16/2015

Application Note 2

AN-1474: HMC661LC4B and HMC760LC4B THA Noise Characteristics and Analysis (Rev.0) 02/27/2018

AN-1472: General Guidelines and Procedures for Using the HMC661LC4B and HMC1061LC5 with an ADC (Rev.0) 02/27/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC661LC4B	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC661LC4BTR	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
HMC661LC4BTR-R5	24-Lead LCC (4mm x 4mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
