LT1009 Series
PRODUCTION2.5V Reference
- Part Models
- 13
- 1ku List Price
- Starting From $1.82
Part Details
- Maximum Initial Tolerance: 0.2%

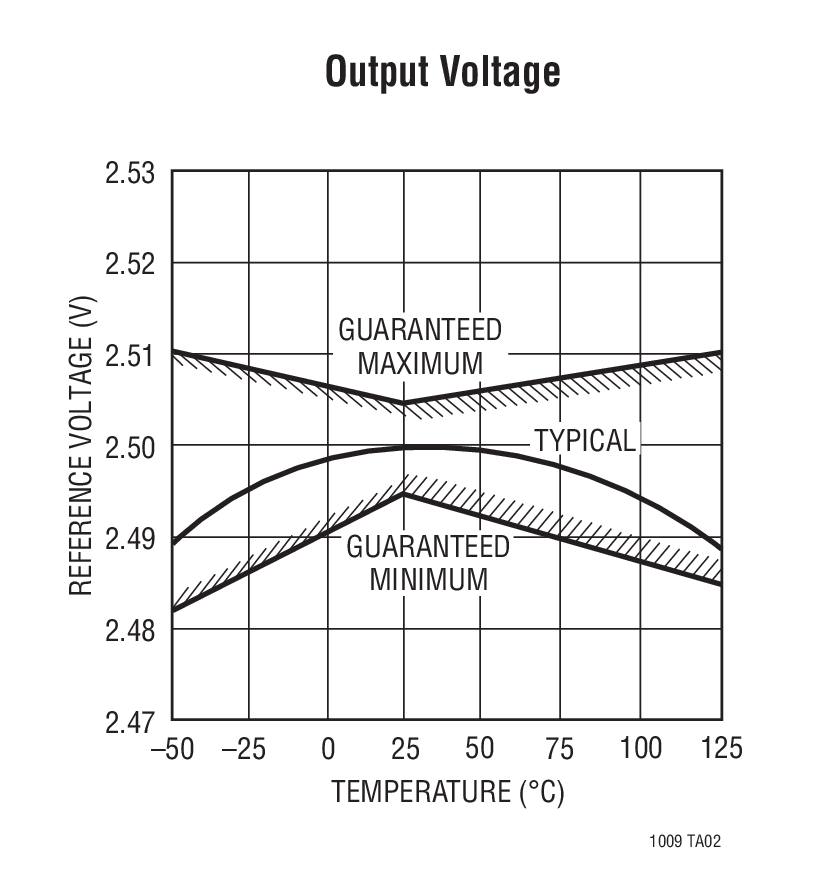

- Guaranteed Temperature Stability
- Maximum 0.6Ω Dynamic Impedance
- Wide Operating Current Range
- Directly Interchangeable with LM136 for Improved Performance
- No Adjustments Needed for Minimum Temperature Coefficient

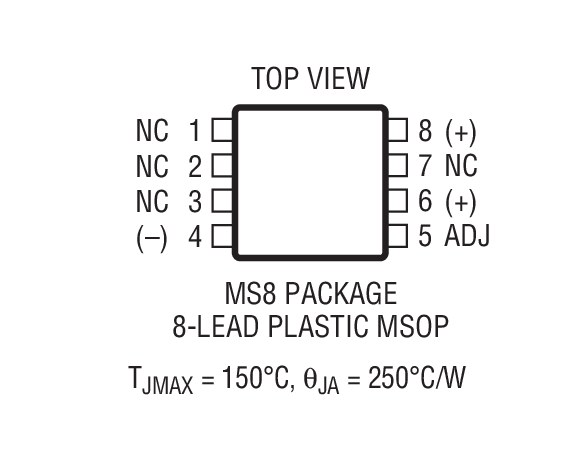

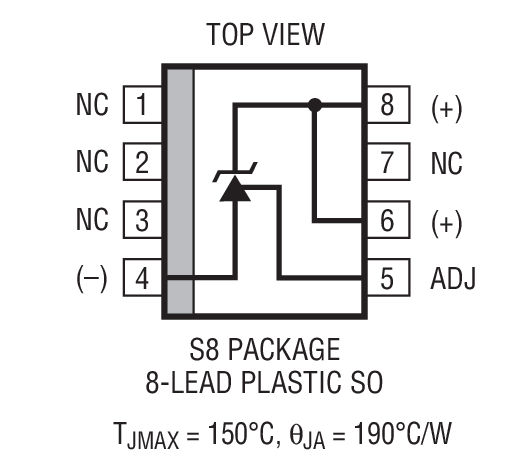

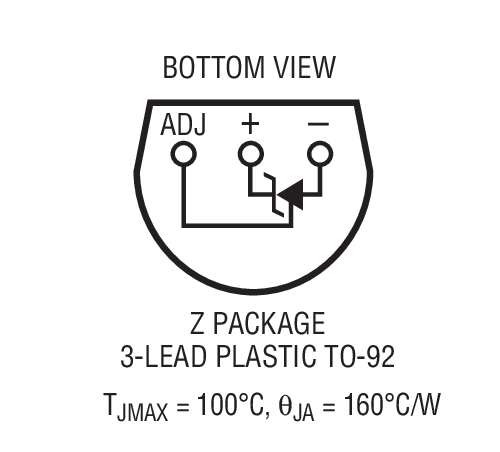

- Available in 8-Lead SO and MSOP Packages and 3-Lead TO-92 Package
The LT1009 is a precision trimmed 2.5V shunt regulator diode featuring a maximum initial tolerance of only ±5mV. The low dynamic impedance and wide operating current range enhances its versatility. The 0.2% reference tolerance is achieved by on-chip trimming which not only minimizes the initial voltage tolerance but also minimizes the temperature drift.
Even though no adjustments are needed with the LT1009, a third terminal allows the reference voltage to be adjusted ±5% to calibrate out system errors. In many applications, the LT1009 can be used as a pin-to-pin replacement of the LM136 and the external trim network eliminated.
For a lower drift 2.5V reference, see the LT1019 data sheet.
Applications
- Reference for 5V Systems
- 8-Bit A/D and D/A Reference
- Digital Voltmeters
- Current Loop Measurement and Control Systems
- Power Supply Monitor
Documentation
Data Sheet 1
Reliability Data 1
Application Note 13
Design Note 4
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| 5962-8961001XA | 3-Lead TO-46 | ||
| LT1009CDICE | CHIPS OR DIE | ||
| LT1009CDICE#MILDICE | CHIPS OR DIE | ||
| LT1009CMS8#PBF | 8-Lead MSOP | ||
| LT1009CMS8#TRPBF | 8-Lead MSOP | ||
| LT1009CZ#PBF | 3-Lead TO-92 | ||
| LT1009CZ#TRPBF | 3-Lead TO-92 | ||
| LT1009IS8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LT1009IS8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LT1009IZ#PBF | 3-Lead TO-92 | ||
| LT1009IZ#TRPBF | 3-Lead TO-92 | ||
| LT1009S8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LT1009S8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) |
