LT1210

PRODUCTION

1.1A, 35MHz Current Feedback Amplifier

Data Sheet (Rev. C) Product Selection Table

Part Models: 10
1ku List Price: Starting From $7.95

Viewing:

Part Details

1.1A Minimum Output Drive Current
35MHz Bandwidth, A_V = 2, R_L = 10Ω
900V/μs Slew Rate, A_V = 2, R_L = 10Ω
High Input Impedance: 10MΩ
Wide Supply Range: ± 5V to ±15V (TO-220 and DD Packages)
Enhanced θ_JA SO-16 Package for ±5V Operation
Shutdown Mode: I_S < 200μA
Adjustable Supply Current
Stable with C_L = 10,000pF
Operating Temperature Range: –40°C to 85°C

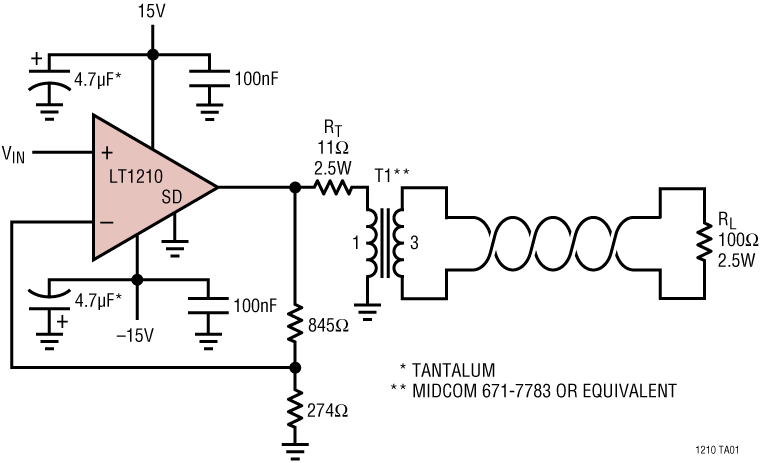

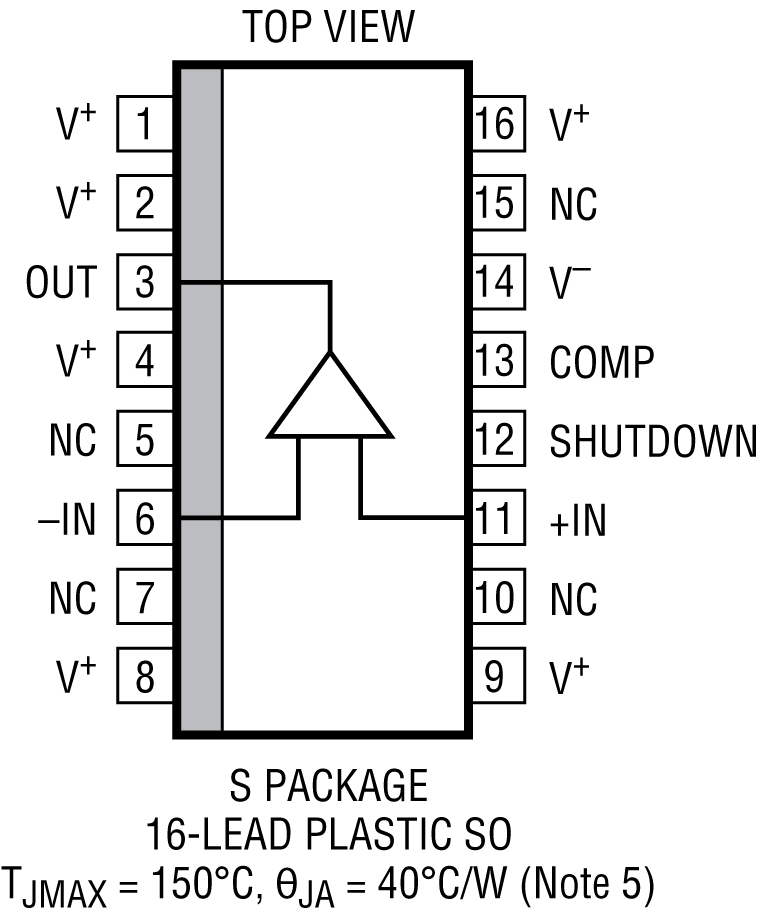

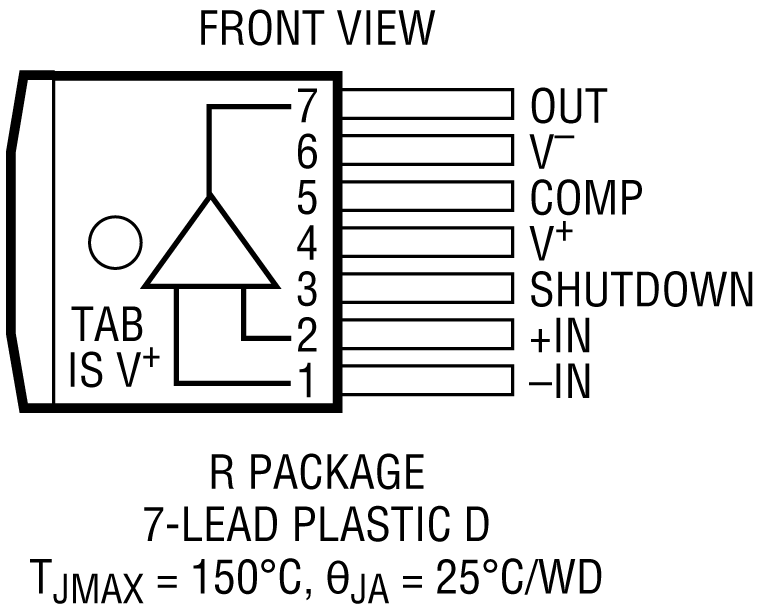

Available in 7-Lead DD, TO-220 and 16-Lead SO Packages

Part Models: 10
1ku List Price: Starting From $7.95

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1210CR#PBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CR#TRPBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CT7#06PBF	7-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CT7#37PBF	7-Lead TO-220 (Flow 37)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CT7#44PBF	7-Lead TO-220 (Flow 44)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210CT7#PBF	7-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210IR#PBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1210IR#TRPBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 10, 2022 - 22_0175 Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark
		PCN22_0175_Form Material_Report Delta Qualification Matrix
LT1210CR#PBF	PRODUCTION
LT1210CR#TRPBF	PRODUCTION
LT1210CT7#06PBF	PRODUCTION
LT1210CT7#37PBF	PRODUCTION
LT1210CT7#44PBF	PRODUCTION
LT1210CT7#PBF	PRODUCTION
LT1210IR#PBF	PRODUCTION
LT1210IR#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0252 Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package
		PCN22_0252_Form Material_Report Qualification Results Summary
LT1210CS#PBF	PRODUCTION
LT1210CS#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LT1210CS#PBF	PRODUCTION
LT1210CS#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT1210 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT1210

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT1361CS8, LT1210CR | Mobile-CPU VRM Tester, 1 Input, 3 Output with 15A Load Pulser

Buy Now View Details

Product Details

DC296A Demo Board for:
LT1361 Dual and Quad 50MHz, 800V/µs Op Amps
LT1210 1.1A, 35MHz Current Feedback Amplifier (CFA)

Resources

DC296A - Demo Manual
9/24/2009

DC296A - Schematic
9/24/2009

DC296A - Design File
9/24/2009
