LT1716

PRODUCTION

SOT-23, 44V, Over-The-Top, Micropower, Precision Rail-to-Rail Comparator

Data Sheet (Rev. B) Product Selection Table

Part Models: 8
1ku List Price: Starting From $1.32

Viewing:

Part Details

Operates from 2.7V to 44V
Over-The-Top^®: Input Common Mode Range Extends 44V Above V^–, Independent of V⁺
Micropower: 35µA I_Q
Offset Voltage: 1.5mV Max

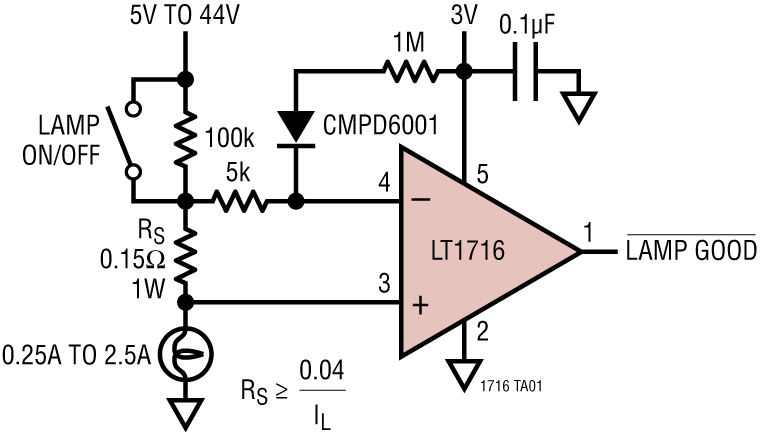

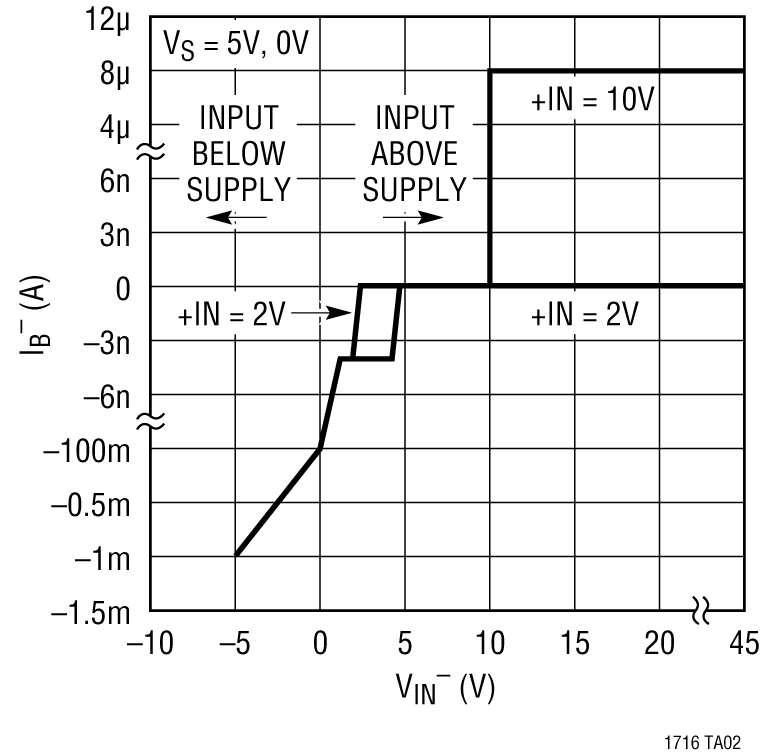

Valid Output with Either Input 5V Below V^–

Rail-to-Rail Output Swing
Output Can Drive Loads Above V⁺
Internal Pull-Up Current
–40°C to 125°C Operating Temperature Range

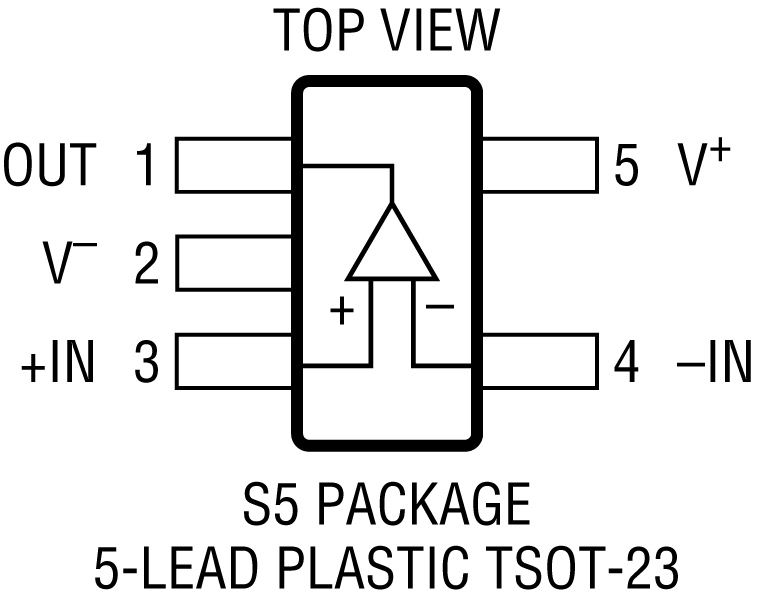

Low Profile (1mm) SOT-23 (ThinSOT^™) Package
AEC-Q100 Qualified for Automotive Applications

Part Models: 8
1ku List Price: Starting From $1.32

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1716CS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716CS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716HS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716HS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716HS5#WTRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716HS5#WTRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716IS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1716IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
