LT6604-15

RECOMMENDED FOR NEW DESIGNS

Dual Very Low Noise, Differential Amplifier and 15MHz Lowpass Filter

Data Sheet Product Selection Table

Part Models: 4
1ku List Price: Starting From $7.73

Viewing:

Part Details

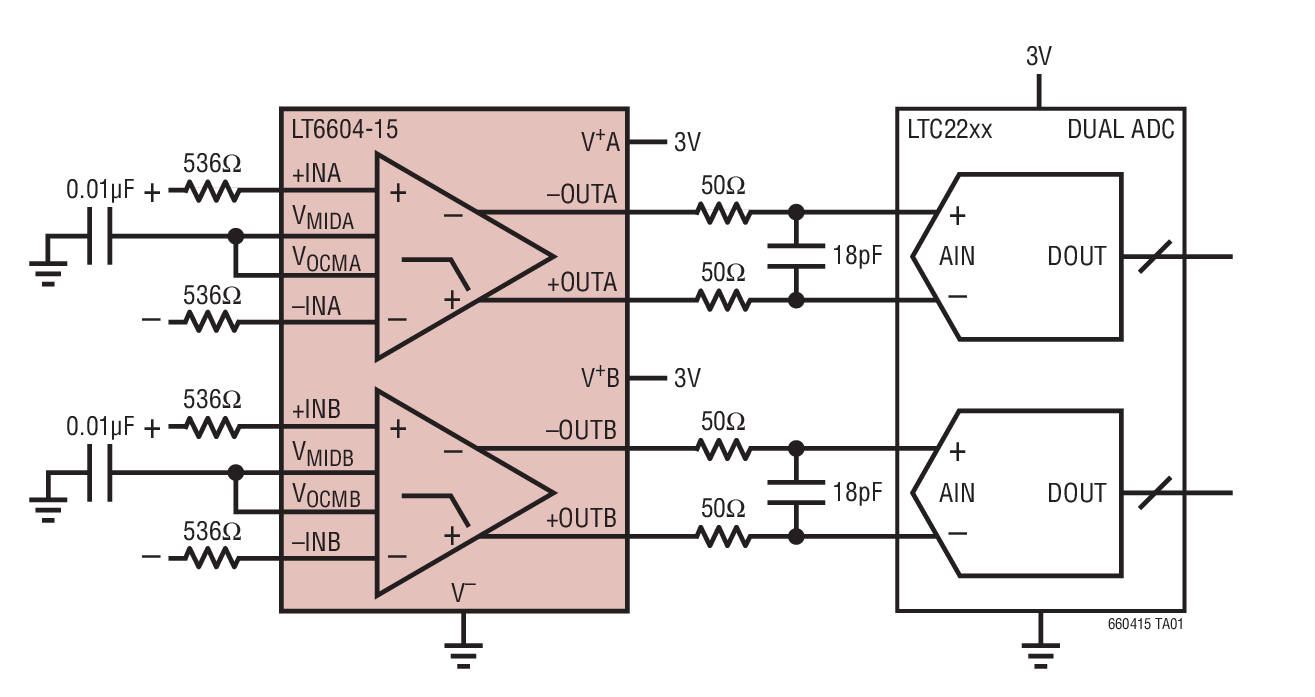

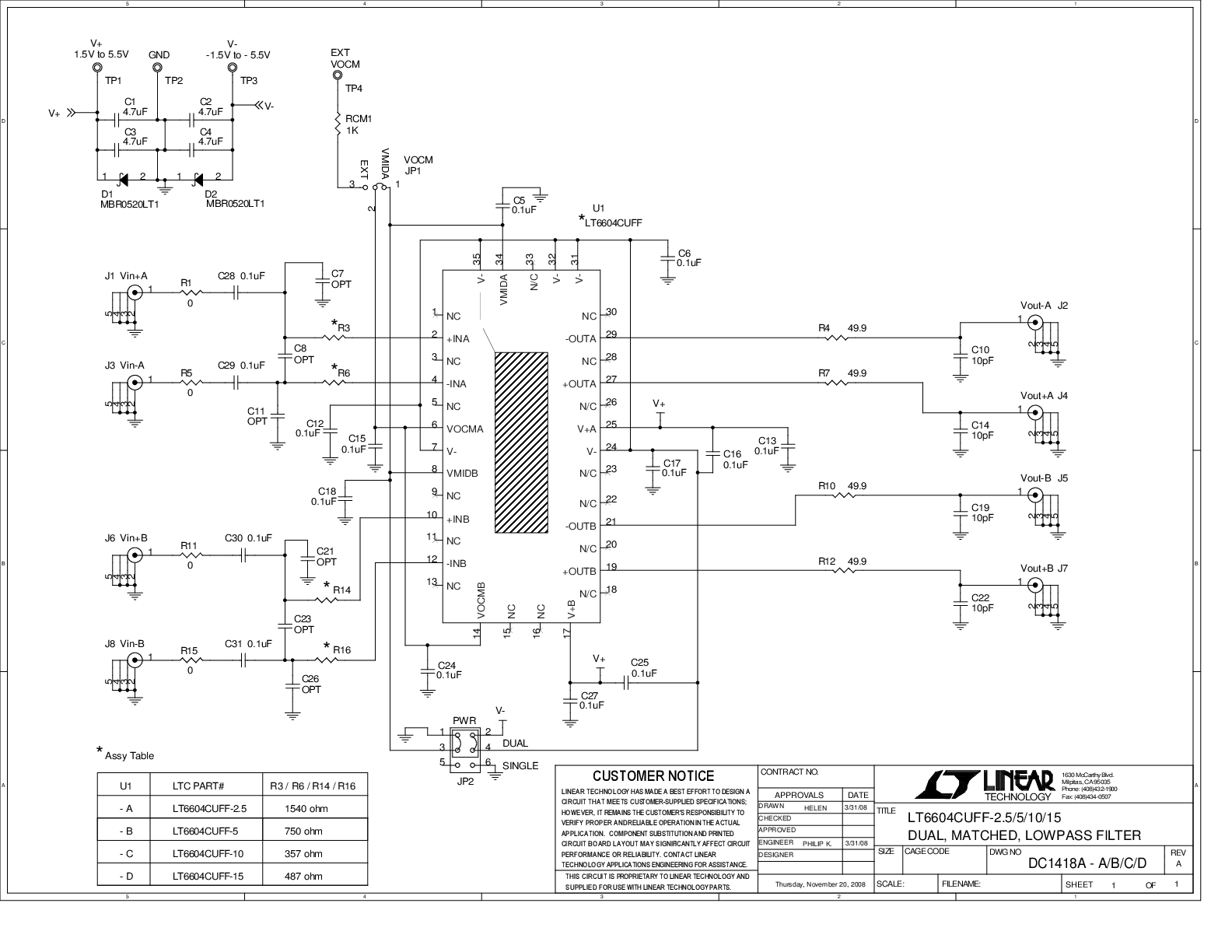

Dual Differential Ampliﬁer with 15MHz Lowpass Filters
- 4th Order Filters
- Approximates Chebyshev Response

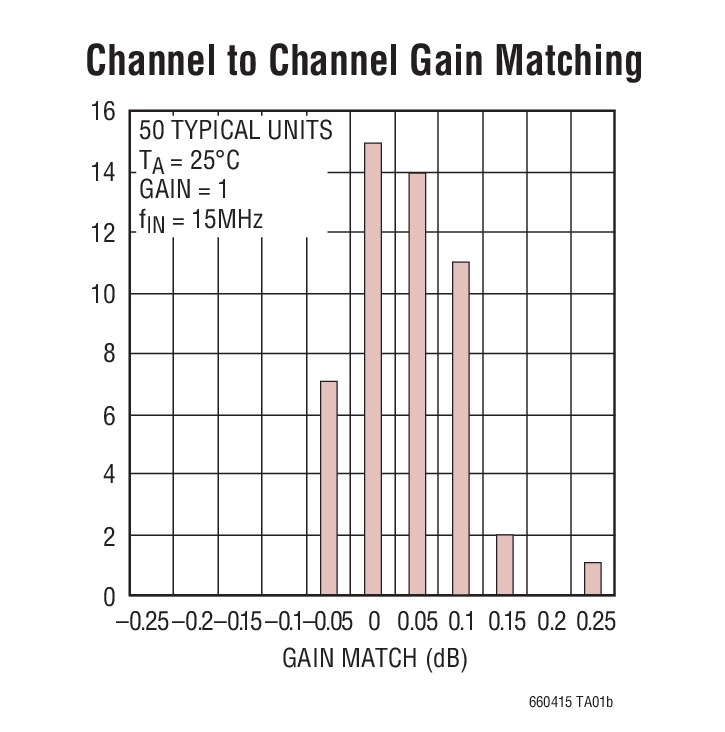

- Guaranteed Phase and Gain Matching
- Resistor-Programmable Differential Gain
76dB Signal-to-Noise (3V Supply, 2V_P-P Output)
Low Distortion, 2V_P-P, 800Ω Load, V_S = 3V
- 1MHz: 86dBc 2nd, 90dBc 3rd
- 10MHz: 63dBc 2nd, 69dBc 3rd
Speciﬁed for Operation with 3V, 5V and ±5V Supplies
Fully Differential Inputs and Outputs
Adjustable Output Common Mode Voltage

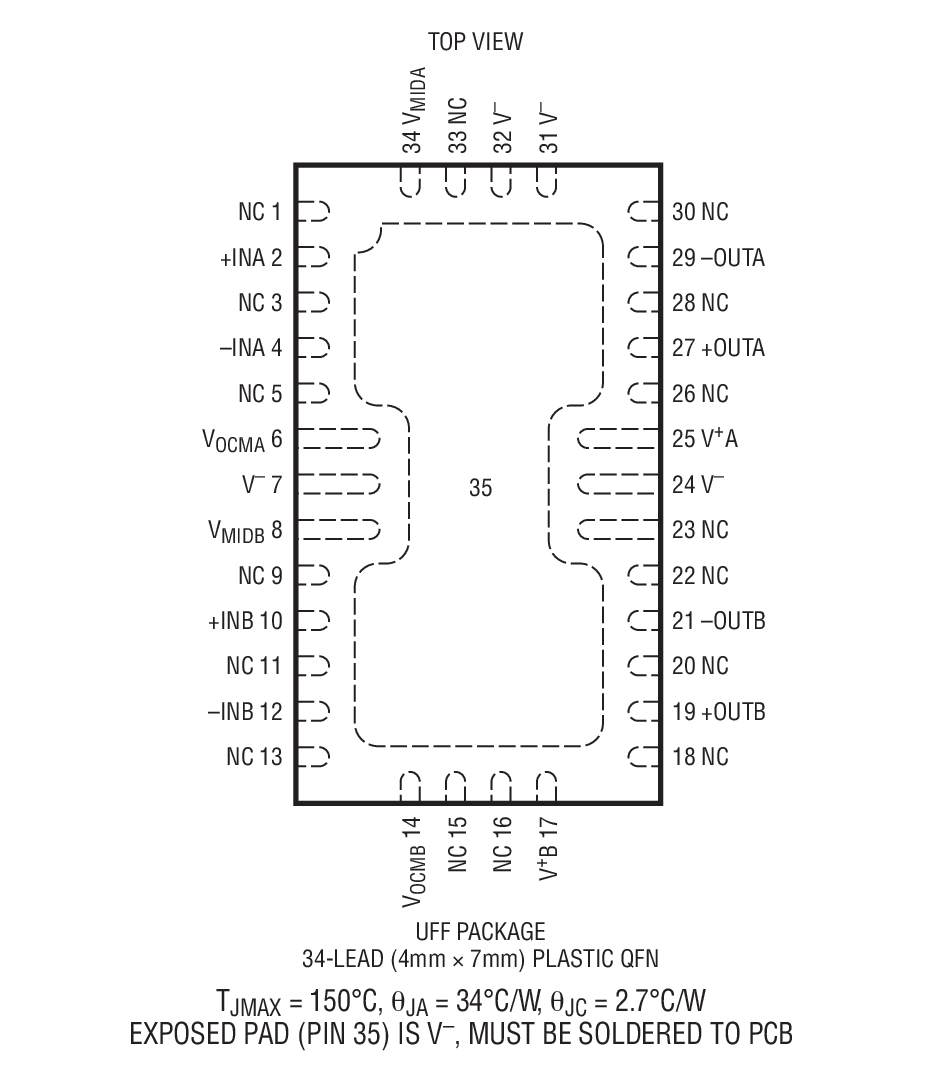

Small 4mm × 7mm × 0.75mm QFN Package

Part Models: 4
1ku List Price: Starting From $7.73

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT6604CUFF-15#PBF	32-Lead QFN (4mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6604CUFF-15#TRPBF	32-Lead QFN (4mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6604IUFF-15#PBF	32-Lead QFN (4mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6604IUFF-15#TRPBF	32-Lead QFN (4mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
