LTC1385

PRODUCTION

3.3V Low Power EIA/TIA-562 Transceiver

Data Sheet Product Selection Table
Viewing:

Part Details

  • Operates from a Single 3.3V Supply
  • Low Supply Current: ICC = 200µA
  • ICC = 35µA in Driver Disable Mode
  • ICC = 0.2µA in Shutdown Mode
  • ESD Protection Over ±10kV
  • Uses Small Capacitors: 0.1µF
  • Operates to 120kBaud
  • Output Overvoltage Does Not Force Current Back into Supplies
  • EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage
  • Pin Compatible with LT 1180A
LTC1385
3.3V Low Power EIA/TIA-562 Transceiver

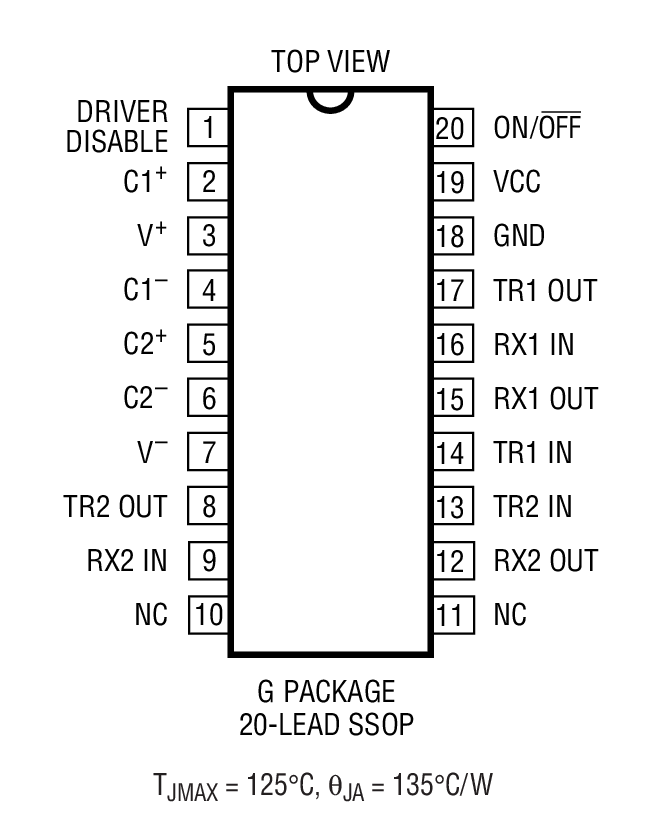

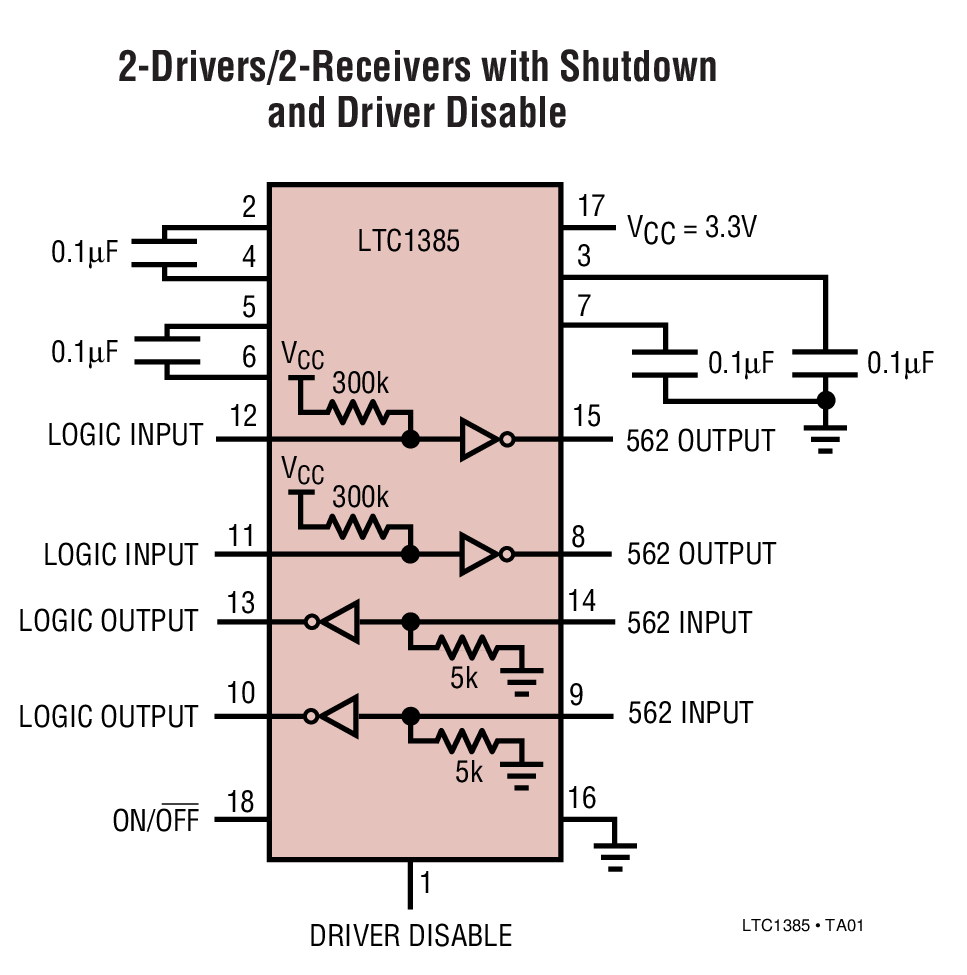

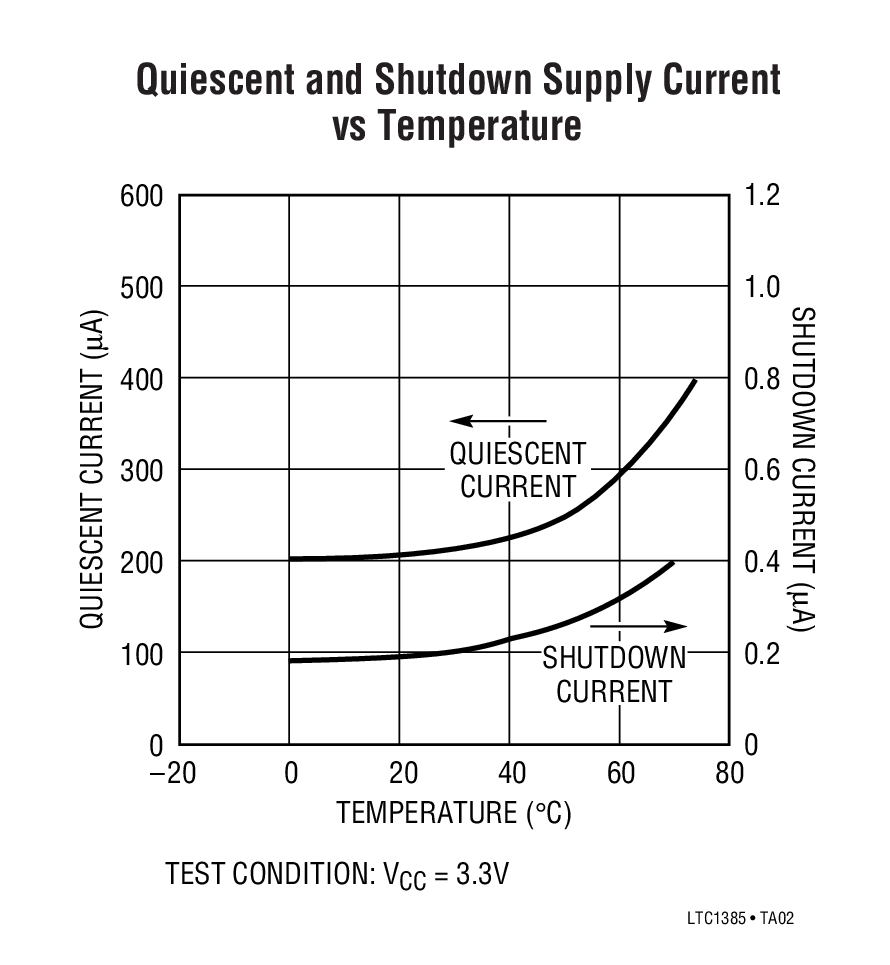

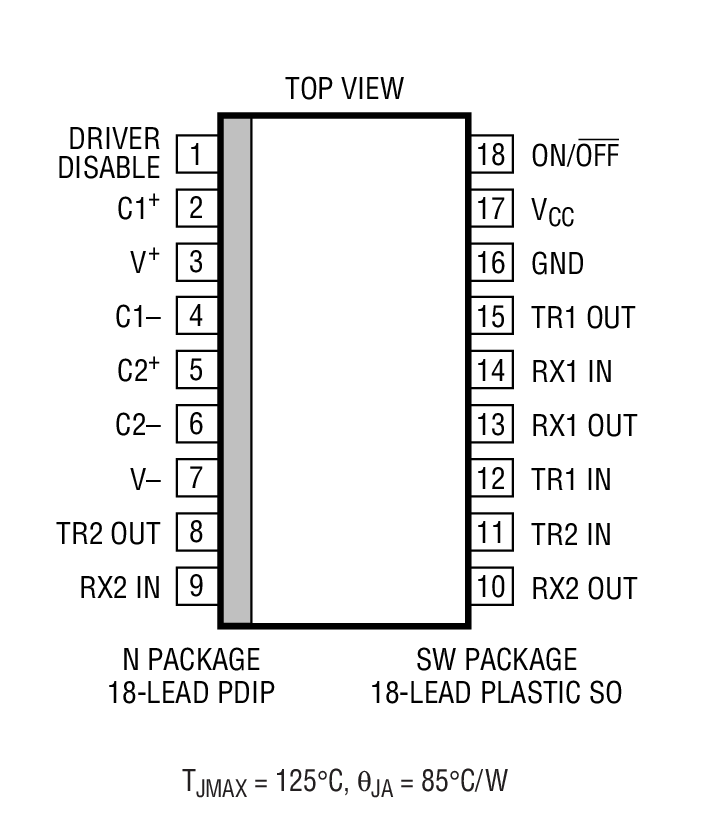

2-Drivers/2-Receivers with Shutdown and Driver Disable Quiescent and Shutdown Supply Current vs Temperature Product Package 1 Product Package 2
