RH6016S

PRE-RELEASE

Aerospace, Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp Channel

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Part Details

Input Common Mode Range: V– to V– + 76V
Rail-to-Rail Input and Output
VOS: ±50μV (Maximum)
Input noise: (nV/rtHz): 18 nV/rtHz

CMRR, PSRR: 126dB
Gain Bandwidth Product: 3.2MHz
Specified on 5V and ±15V Supplies
High Voltage Gain: 1000V/mV

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

RH6016S: Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp Data Sheet (Rev.0) 08/24/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

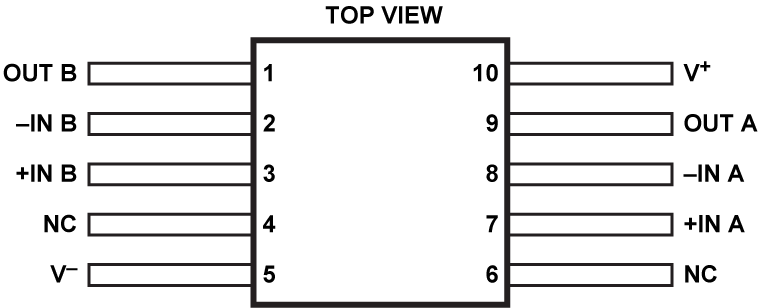

RH6016MW	CER. FLATPACK WITH LEADS	Material Declaration Reliablity Data	Ultra Librarian SamacSys
RH6016MW-EMX	CER. FLATPACK WITH LEADS	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
