Reference Design Using the MAX15026 for an Auxiliary Power Supply for LCD TVs or Set-Top Boxes

Mar 3 2023

Description

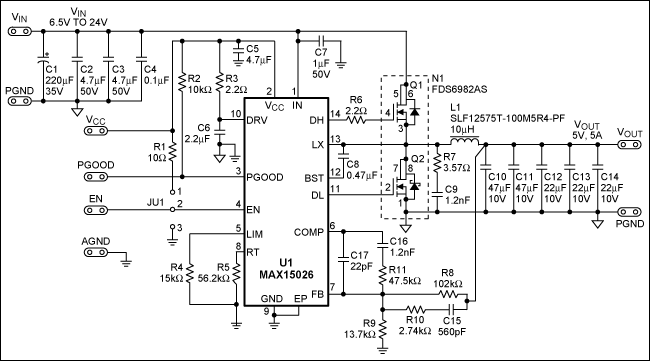

Key specifications for the reference design are listed below, along with a detailed schematic (Figure 1) and the bill of materials (Table 1) needed for this application.

Specifications:

  • Input Voltage Range: 6.5V to 24V
  • Output Voltage: 5V
  • Output Current: 5A
  • Output Voltage Ripple (pk-pk): 50mV
  • Switching Frequency of Converter: 300kHz
  • Overcurrent Protection Limit: 6A
  • Efficiency: > 90% for Normal Operation
