AD8205

PRODUCTION

Single Supply 42 V System Difference Amplifier

Data Sheet (Rev. D)

Part Models: 8
1ku List Price: Starting From $2.13

Viewing:

Part Details

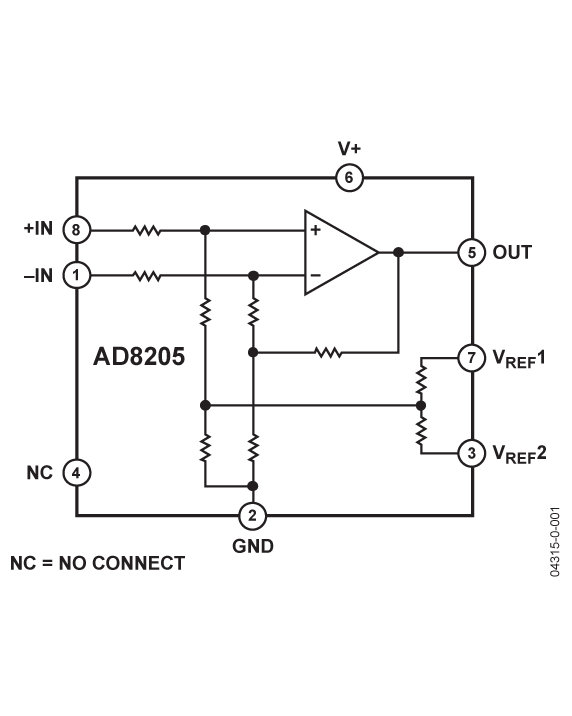

Ideal for current shunt applications
High Common-mode voltage range
−2 V to +65 V operating
−25 V to +75 V survival
Gain = 50 V/V
Wide operating temperature range
−40°C to +125°C: Y and W grade
−40°C to +150°C: H grade
Bidirectional operation
Available in 8-Lead SOIC.
EXCELLENT AC AND DC
PERFORMANCE
15 µV/°C offset drift
30 ppm/°C gain drift
80 dB CMRR dc to 20 kHz
Qualified for Automotive Applications

Part Models: 8
1ku List Price: Starting From $2.13

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8205WHRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205WHRZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205WYRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205WYRZ-R7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205WYRZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205YRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205YRZ-R7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8205YRZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 20, 2012 - 12_0105 Halogen Free Material Change for Select SOIC Narrow and Wide Body Products Assembled at Amkor
		PCN12_0105_Form Material_Report Qualification Report Summary
AD8205WYRZ	PRODUCTION
AD8205WYRZ-R7	PRODUCTION
AD8205WYRZ-RL	PRODUCTION
AD8205YRZ	PRODUCTION
AD8205YRZ-R7	PRODUCTION
AD8205YRZ-RL	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
AD8411A	RECOMMENDED FOR NEW DESIGNS	−2 V to 70 V Wide Input Voltage Range, 2.7 MHz High Bandwidth, Current-Sense Amplifier with PWM Rejection and Gain 50 V/V

Tools & Simulations

LTspice 1

AD8205 - Specialty Amplifiers

Models for the following parts are available in LTspice:

AD8205

SPICE Model 1

AD8205 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
