ADAR4000

PRE-RELEASE

2 GHz to 18 GHz Single Beam/4 Channel Broadband Transmit True Time Delay Unit

Part Models
2
1ku List Price
price unavailable
Viewing:

Part Details

  • 2 GHz to 18 GHz frequency range
  • Programmable gain: 6-bit resolution
    • 31.1 dB adjustment range
    • 0.5 dB step size
  • Programmable Time Delay: 7-bit resolution
  • Programmable Time Delay Modes
    • TD_Mode0 : 0 to 508ps range, 4ps resolution
    • TD_Mode1 : 0 to 254ps range, 2ps resolution
  • Programmable amplifier bias settings
  • 3-wire and 4-wire SPI
  • Package: 6mm × 6mm LFCSP
ADAR4000
2 GHz to 18 GHz Single Beam/4 Channel Broadband Transmit True Time Delay Unit

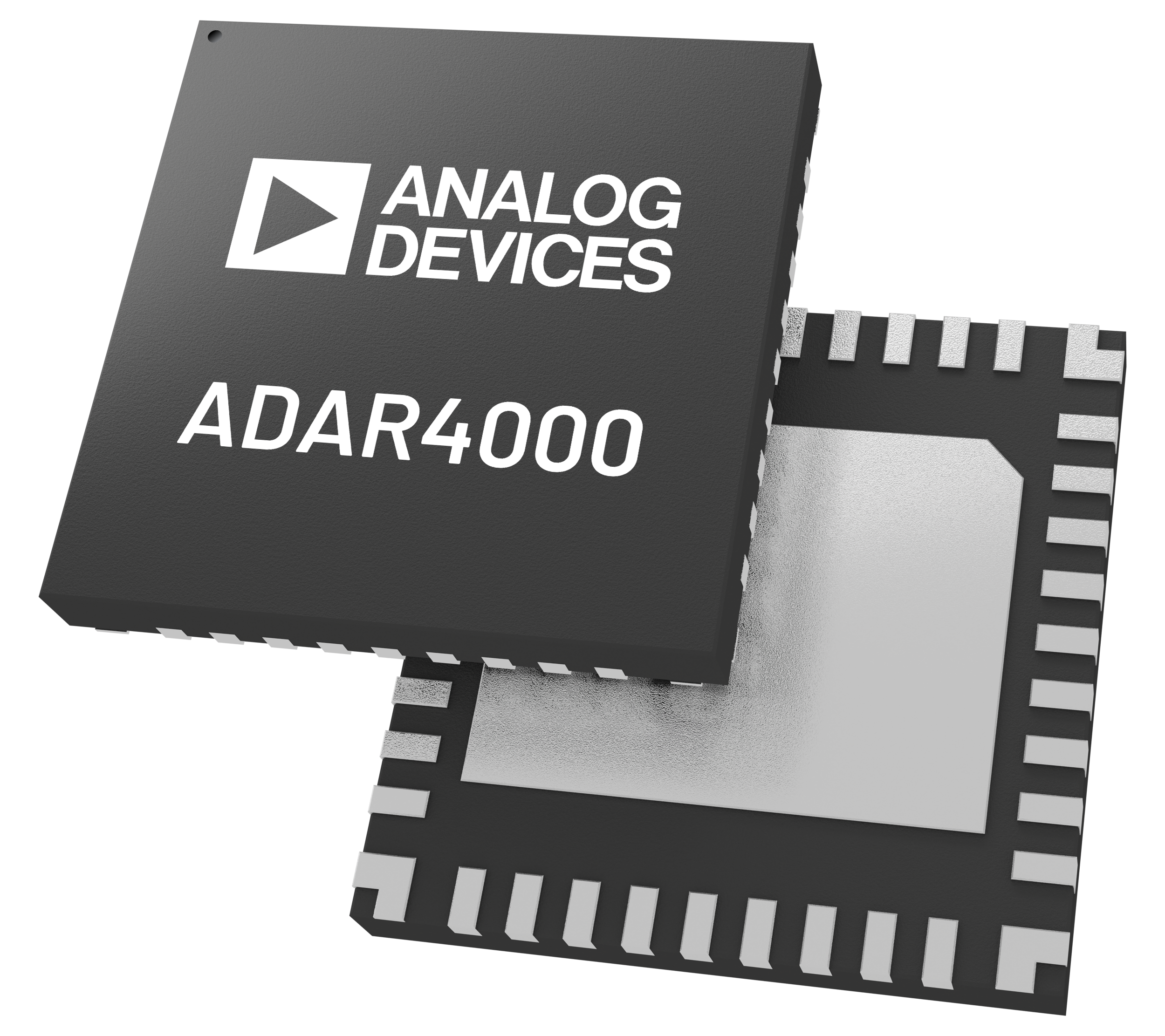

ADAR4000 Chip ADAR4000 Functional Block Diagram
