ADCMP354

PRODUCTION

Comparator & 0.6 V Reference in 4-SC70 w/ Open-Drain Active-High Output

Data Sheet (Rev. E)

Part Models: 1
1ku List Price: Starting From $0.48

Viewing:

Part Details

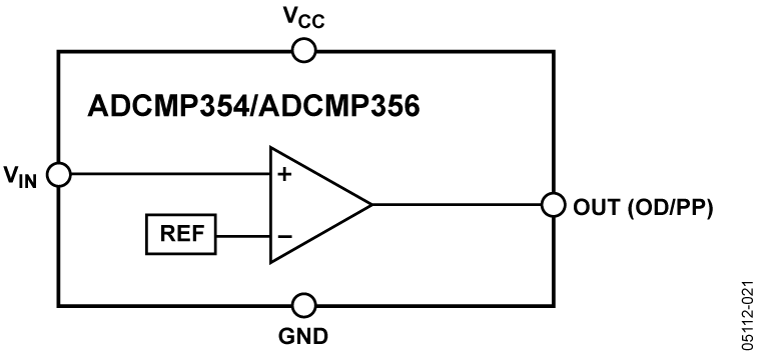

Comparators with 0.6 V on-chip references
Output stages
Open-drain active low (ADCMP350)
Open-drain active high (ADCMP354)
Push-pull active high (ADCMP356)

High voltage (up to 22 V) tolerance on VIN and open-drain output pins
Low power consumption: 10 µA
10 nA input bias current
See datasheet for additional features

Part Models: 1
1ku List Price: Starting From $0.48

Documentation

Data Sheet 1

ADCMP350/ADCMP354/ADCMP356: Comparators and Reference Circuits Data Sheet (Rev.E) 04/04/2011

Application Note 1

AN-1126: More Boost with Less Stress: the SEPIC Multiplied Boost Converter 08/01/2012

Frequently Asked Question 1

FAQ 06/17/2015

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADCMP354YKSZ-REEL7	4-Lead SC70	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jan 26, 2010 - 10_0008 Halogen Free Material Change for SC_70 Products
		Material_Report PCN10_0008_Form SC_70 Qualification Data
ADCMP354YKSZ-REEL7	PRODUCTION	Material_Report PCN10_0008_Form SC_70 Qualification Data

This is the most up-to-date revision of the Data Sheet.
