ADH499S

RECOMMENDED FOR NEW DESIGNS

Aerospace GaAs PHEMT, Medium Power Amplifier 21 to 32 GHz

Data Sheet (Rev. A)
Part Models
1
1ku List Price
price unavailable
Viewing:

Part Details

ADH499S (LSH6 Package)

  • Gain: 17 dB
  • Noise Figure: 5 dB
  • Output IP3: + 34 dBm
  • Output P1dB: +23 dBm
  • Supply Voltage: +5V
  • Gain Control
  • 50 Ohm Matched Input/Output
  • 16-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

ADH499S (Die)

  • Gain: 16 dB
  • Output IP3: +33 dBm
  • Output P1dB: +24 dBm
  • Supply Voltage: +5V
  • Gain Control
  • 50 Ohm Matched Input/Output
  • Small Die Size: 2.04 mm X 1.09 mm X 0.1 mm
  • Screened in accordance with MIL-PRF-38534, Class K
ADH499S
Aerospace GaAs PHEMT, Medium Power Amplifier 21 to 32 GHz

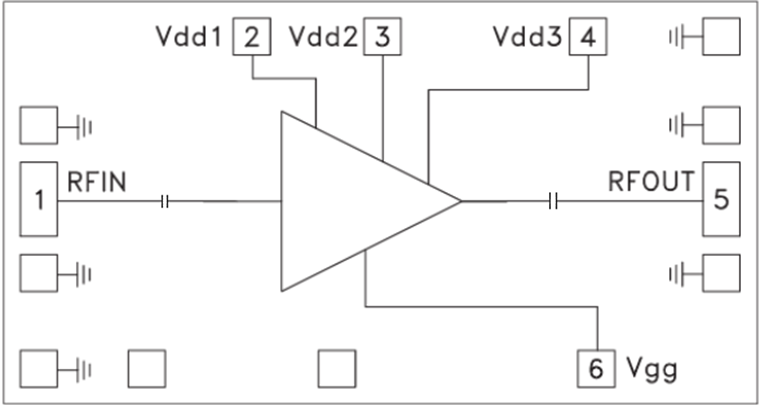

HMC8799 SID ADH499S Functional Block Diagram
