ADM1073

PRODUCTION

-48 V Full Feature Hot Swap Controller

Data Sheet (Rev. B) Product Selection Table
Viewing:

Part Details

  • Precision In-Rush Linear Current Limit
  • Adjustable Soft Start In-Rush Current Limit Profiling
  • Max On-Time Modulated by FET Drain Voltage for Additional SOA Protection
  • Adjustable PWM Retry Scheme and Multiple Device Cascading
  • Precision Maximum On Time in Current Limit
  • Capability for Charging Large Capacitive Loads
  • Shunt Regulator Topology Allows For Very Large Transient Input Supplies
  • Precision UnderVoltage and OverVoltage Monitors with Separate UV and OV Pins and Programmable UV and OV Hysteresis
ADM1073
-48 V Full Feature Hot Swap Controller

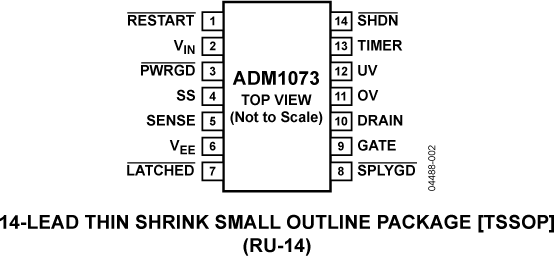

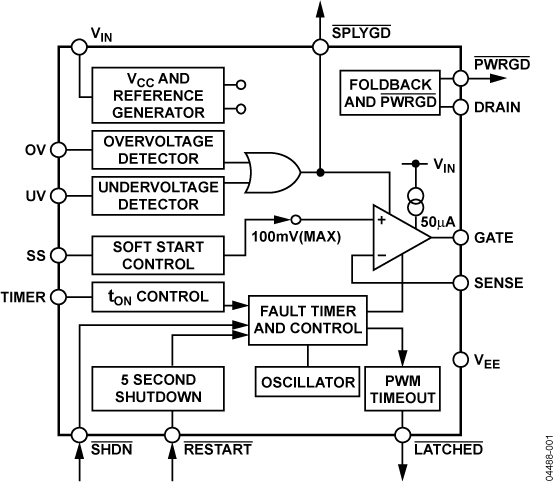

ADM1073 Functional Block Diagram ADM1073 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Application Note 2

Technical Articles 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Evaluation Kits

EVAL-ADM1073

ADM1073 Evaluation Board

Buy Now View Details

Features and Benefits

  • Evaluation kit for the ADM1073 hot swap controller
  • External FET to control load current
  • Programmable current limit (default 6 A)
  • Programmable operating voltage range (UV/OV resistors)
  • SOA timing values using external TIMER capacitor
  • LEDs on all logic inputs and outputs
  • Push-buttons for asserting logic inputs
  • Drops into a user’s system, replacing the current hot swap device

Product Details

The EVAL-ADM1073MEBZ is a compact, full feature evaluation board for the ADM1073 device. The layout provides users with a clear visual of all the peripheral components and the hot swap power path. The layout also maximizes the ability of the board to dissipate heat for some of the key components on the power path, allowing evaluation of high current hot swap setups.

One sense resistor footprint and one FET footprint provides users with flexibility and allows them to simulate a wide range of application setups.

Multiple test points allow easy access to all critical points and pins. There is one LED to provide users with a direct visual indication of IC power good output.

This evaluation kit allows the ADM1073 negative-voltage hot swap controller to be easily evaluated. The ADM1073 provides undervoltage and overvoltage protection by monitoring the supply voltage and provides robust current limiting by monitoring the load current. The device uses an FET in the power path to control the load current.

Complete specifications for the ADM1073 can be found in the ADM1073 data sheet, available at www.analog.com, and should be consulted in conjunction with this user guide when using the evaluation board.

EVAL-ADM1073
ADM1073 Evaluation Board
