LT1209

LAST TIME BUY

Quad 45MHz, 400V/µs Op Amps

Data Sheet
Viewing:

Part Details

  • 45MHz Gain-Bandwidth
  • 400V/µs Slew Rate
  • Unity-Gain Stable
  • 7V/mV DC Gain, RL = 500Ω
  • 3mV Maximum Input Offset Voltage
  • ±12V Minimum Output Swing into 500Ω
  • Wide Supply Range: ±2.5V to ±15V
  • 7mA Supply Current per Amplifier
  • 90ns Settling Time to 0.1%, 10V Step
  • Drives All Capacitive Loads
LT1209
Quad 45MHz, 400V/µs Op Amps

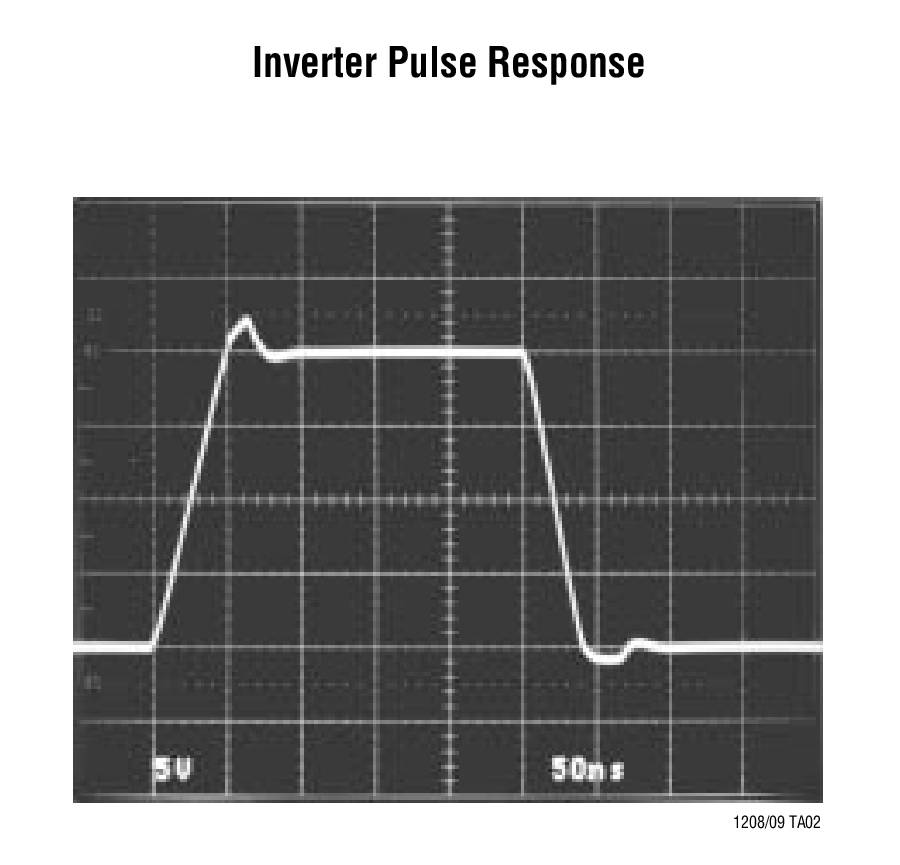

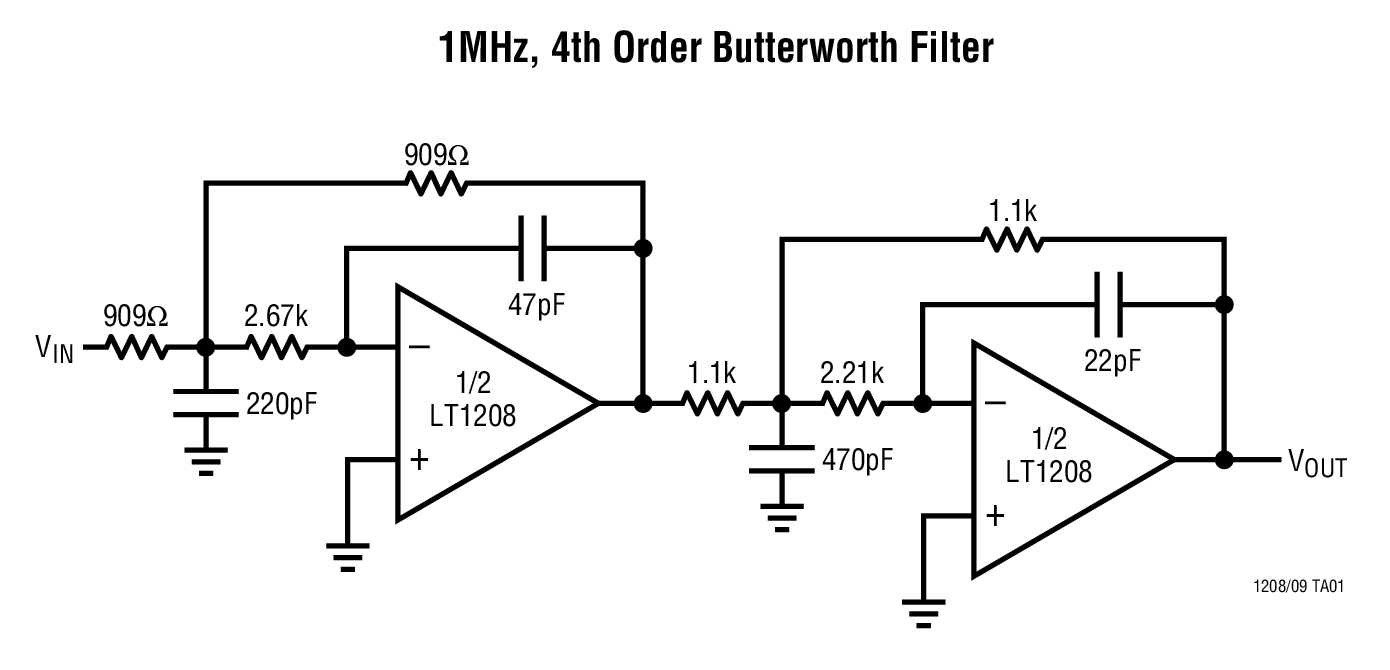

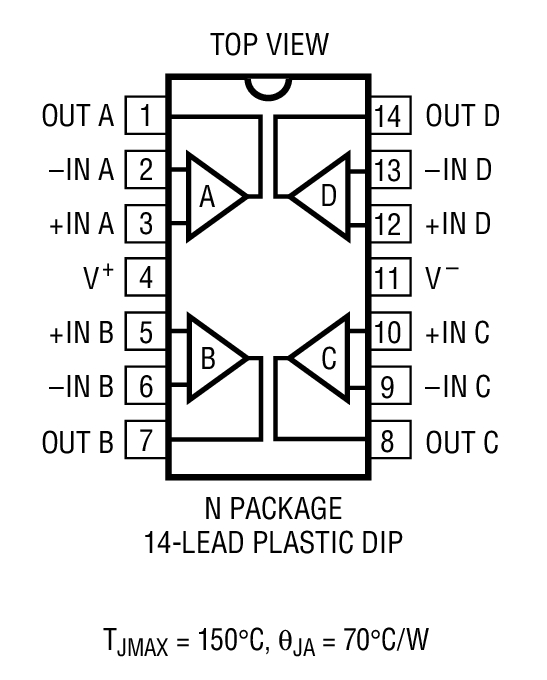

1MHz, 4th Order Butterworth Filter Inverter Pulse Response Product Package 1 Product Package 2 Product Package 3 Product Package 4
