LT1368

PRODUCTION

Dual Precision Rail-to-Rail Input and Output Op Amps

Data Sheet
Part Models
3
1ku List Price
Starting From $4.25
Viewing:

Part Details

  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Input Offset Voltage: 150μV
  • High Common Mode Rejection Ratio: 90dB
  • High AVOL: >1V/μV Driving 10k Load
  • Low Input Bias Current: 10nA
  • Wide Supply Range: 1.8V to ±15V
  • Low Supply Current: 375μA per Amplifier
  • High Output Drive: 30mA
  • 400kHz Gain-Bandwidth Product
  • Slew Rate: 0.13V/μs
  • Stable for Capacitive Loads Up to 1000pF
LT1368
Dual Precision Rail-to-Rail Input and Output Op Amps

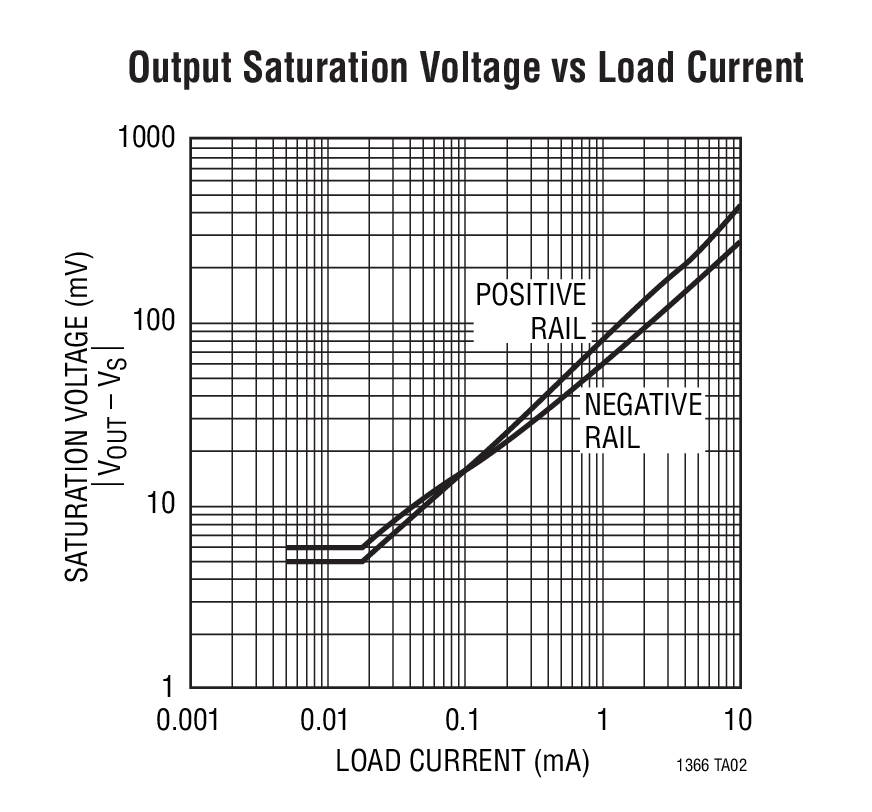

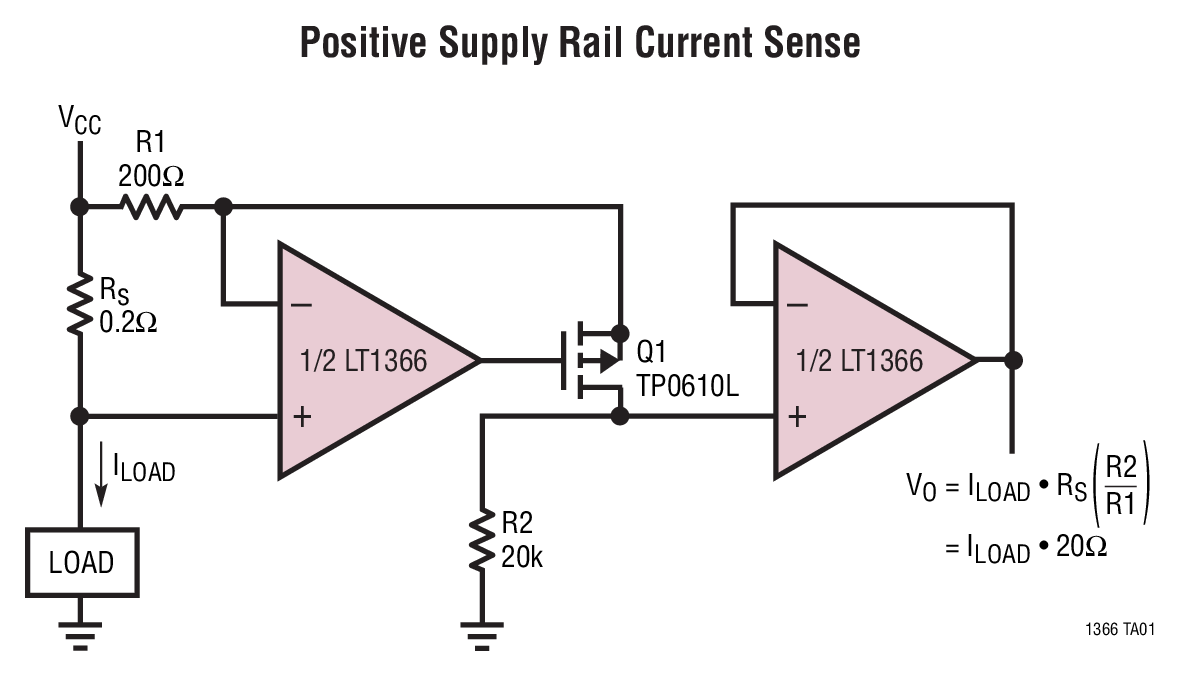

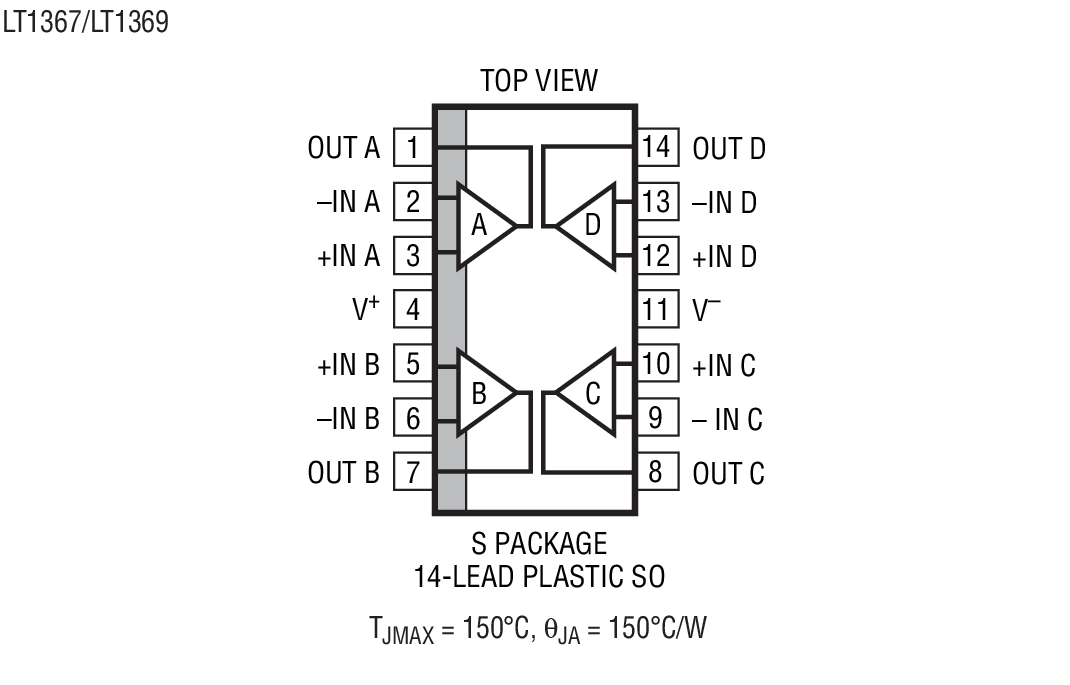

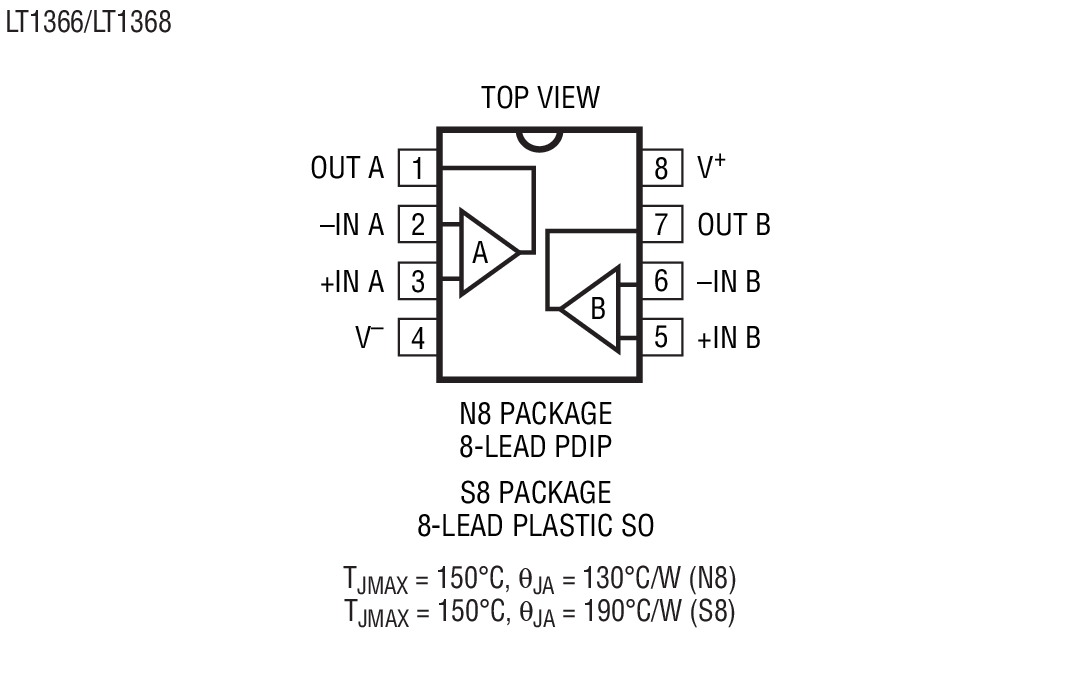

Positive Supply Rail Current Sense Output Saturation Voltage vs Load Current Product Package 1 Product Package 2
