LT1510

PRODUCTION

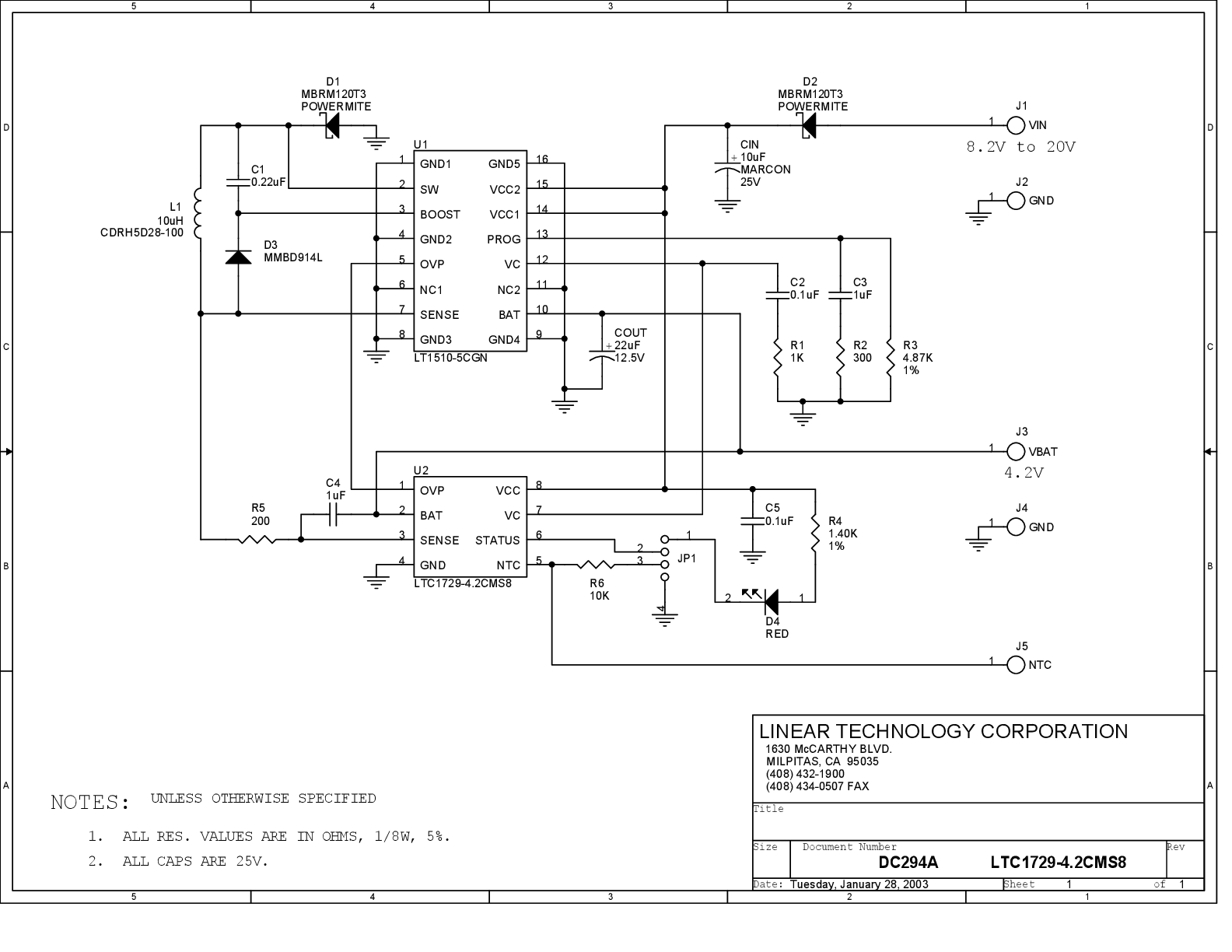

Constant-Voltage/Constant-Current Battery Charger

Data Sheet

Part Models: 18
1ku List Price: Starting From $3.77

Viewing:

Part Details

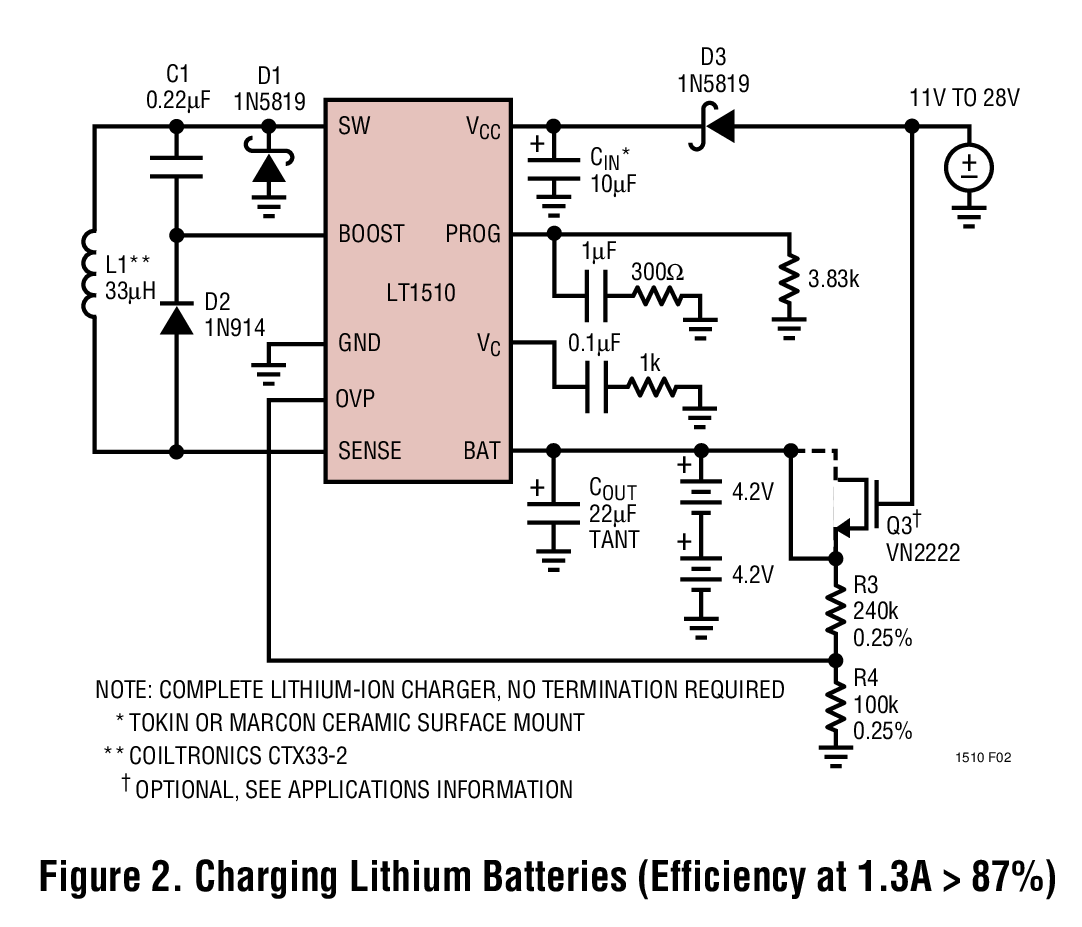

Charges NiCd, NiMH and Lithium-Ion Batteries - Only One 1/10W Resistor Is Needed to Program Charging Current
High Efficiency Current Mode PWM with 1.5A Internal Switch and Sense Resistor
3% Typical Charging Current Accuracy
Precision 0.5% Voltage Reference for Voltage Mode Charging or Overvoltage Protection
Current Sensing Can Be at Either Terminal of the Battery
Low Reverse Battery Drain Current: 3µA
Charging Current Soft Start
Shutdown Control

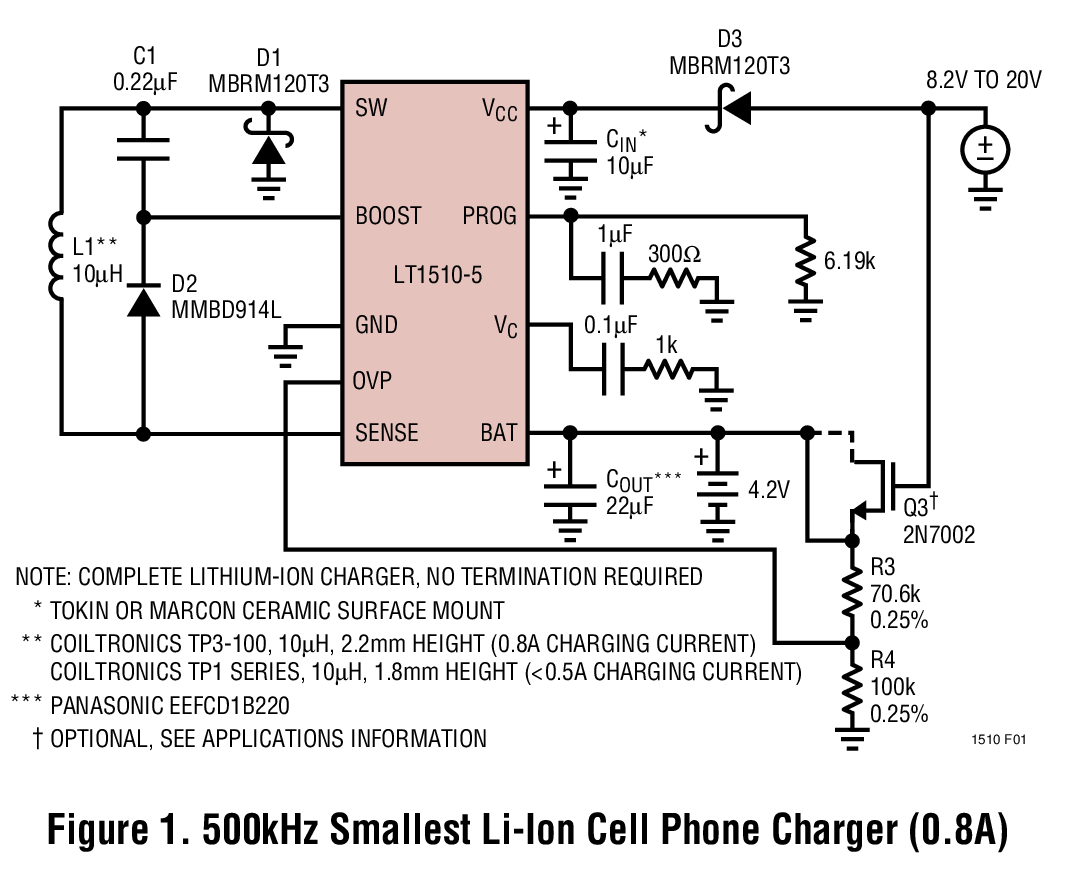

500kHz Version Uses Small Inductor

Part Models: 18
1ku List Price: Starting From $3.77

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

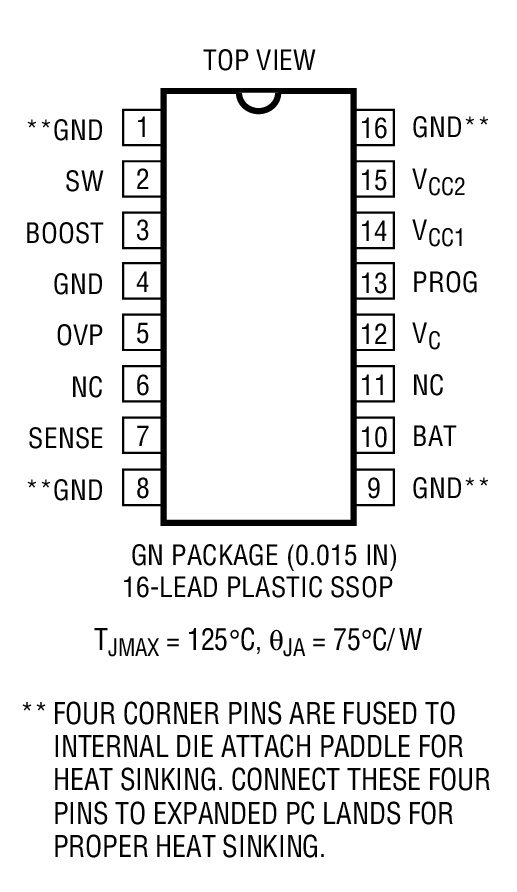

LT1510-5CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510-5CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510-5IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510-5IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

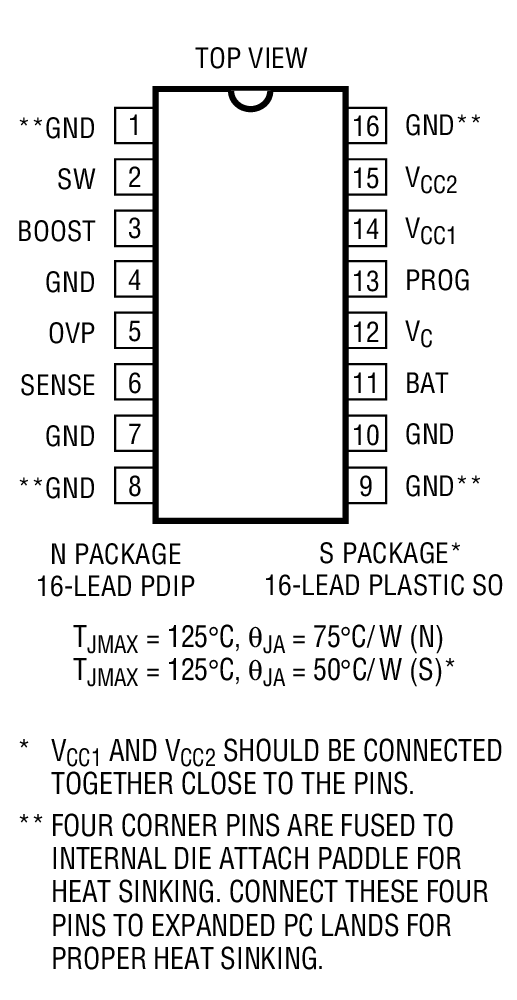

LT1510CN#PBF	16-Lead PDIP (Narrow 0.30 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510CS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510CS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

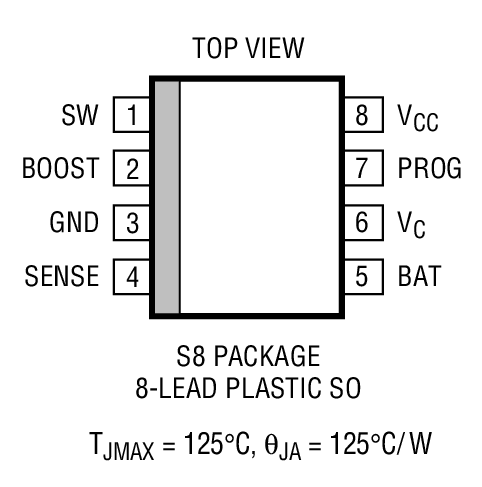

LT1510CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IN#PBF	16-Lead PDIP (Narrow 0.30 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IS#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IS#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1510IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package
		PCN22_0235_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1510-5CGN#PBF	PRODUCTION
LT1510-5CGN#TRPBF	PRODUCTION
LT1510-5IGN#PBF	PRODUCTION
LT1510-5IGN#TRPBF	PRODUCTION
LT1510CGN#PBF	PRODUCTION
LT1510CGN#TRPBF	PRODUCTION
LT1510IGN#PBF	PRODUCTION
LT1510IGN#TRPBF	PRODUCTION
Apr 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
		PCN22_0066_Form Material_Report Delta Qualification Matrix
LT1510-5CGN#PBF	PRODUCTION
LT1510-5CGN#TRPBF	PRODUCTION
LT1510-5IGN#PBF	PRODUCTION
LT1510-5IGN#TRPBF	PRODUCTION
LT1510CGN#PBF	PRODUCTION
LT1510CGN#TRPBF	PRODUCTION
LT1510IGN#PBF	PRODUCTION
LT1510IGN#TRPBF	PRODUCTION
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1510CN#PBF	PRODUCTION
LT1510IN#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1510CN#PBF	PRODUCTION
LT1510IN#PBF	PRODUCTION
Oct 12, 2022 - 22_0252 Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package
		PCN22_0252_Form Material_Report Qualification Results Summary
LT1510CS#PBF	PRODUCTION
LT1510CS#TRPBF	PRODUCTION
LT1510IS#PBF	PRODUCTION
LT1510IS#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LT1510CS#PBF	PRODUCTION
LT1510CS#TRPBF	PRODUCTION
LT1510IS#PBF	PRODUCTION
LT1510IS#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1510CS8#PBF	PRODUCTION
LT1510CS8#TRPBF	PRODUCTION
LT1510IS8#PBF	PRODUCTION
LT1510IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Battery Charger ICs 1
LTM8061	RECOMMENDED FOR NEW DESIGNS	32V, 2A μModule (Power Module) Li-Ion/Polymer Battery Charger
Battery Monitors & Fuel Gauges 1
LTC2942-1	Obsolete	1A Battery Gas Gauge with Internal Sense Resistor and Temperature/Voltage Measurement
Protection Switches & Controllers 2
LTC2955	RECOMMENDED FOR NEW DESIGNS	Pushbutton On/Off Controller with Automatic Turn-On
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT1510
LT1510-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
