LT1580

PRODUCTION

7A, Very Low Dropout Regulator

Data Sheet

Part Models: 15
1ku List Price: Starting From $6.53

Viewing:

Part Details

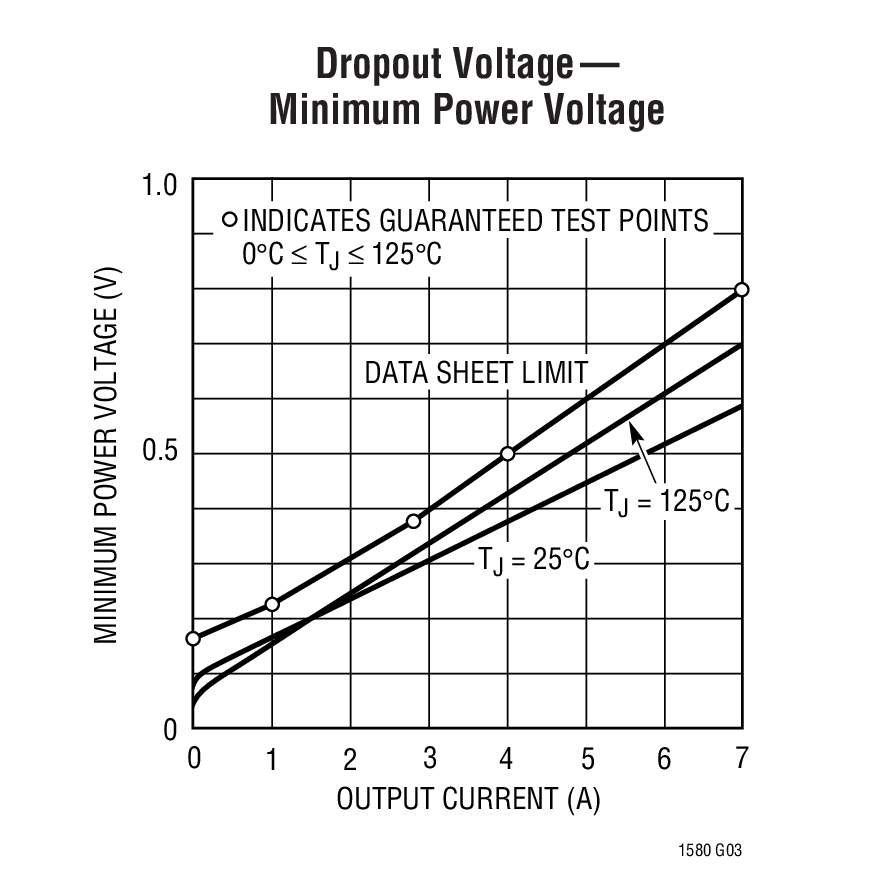

Low Dropout, 540mV at 7A Output Current
Fast Transient Response
Remote Sense
1mV Load Regulation
Fixed 2.5V Output and Adjustable Output
No Supply Sequencing Problems in Dual Supply Mode

Part Models: 15
1ku List Price: Starting From $6.53

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

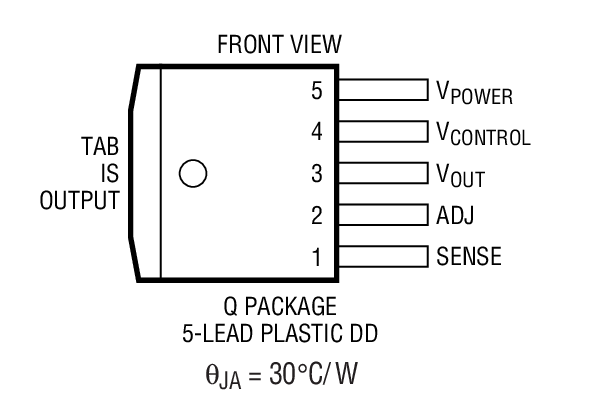

LT1580CQ#PBF	5-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580CQ#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580CR-2.5#PBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580CR-2.5#TRPBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580CT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

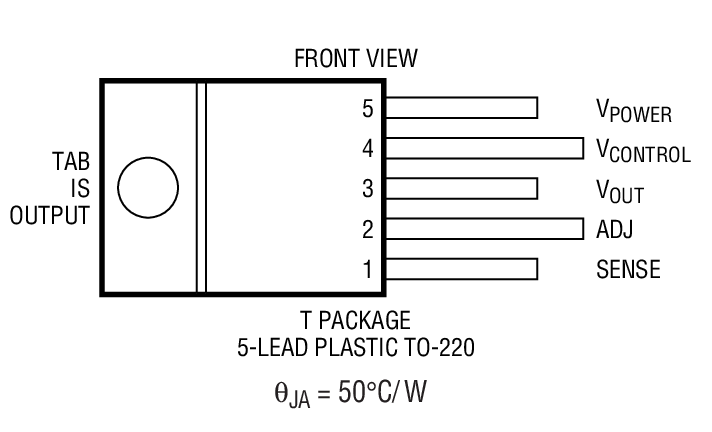

LT1580CT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys

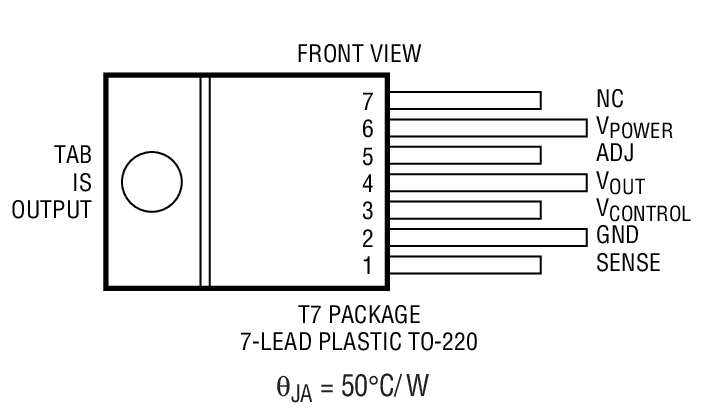

LT1580CT7-2.5#PBF	7-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IQ#PBF	5-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IQ#TRPBF	5-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IR-2.5#PBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IR-2.5#TRPBF	7-Lead DD Pak	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IT#06PBF	5-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IT#PBF	5-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IT7-2.5#06PBF	7-Lead TO-220 (Flow 06)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1580IT7-2.5#PBF	7-Lead TO-220	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 10, 2022 - 22_0175 Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark
		PCN22_0175_Form Material_Report Delta Qualification Matrix
LT1580CQ#PBF	PRODUCTION
LT1580CQ#TRPBF	PRODUCTION
LT1580CR-2.5#PBF	PRODUCTION
LT1580CR-2.5#TRPBF	PRODUCTION
LT1580CT#06PBF	PRODUCTION
LT1580CT#PBF	PRODUCTION
LT1580CT7-2.5#PBF	PRODUCTION
LT1580IQ#PBF	PRODUCTION
LT1580IQ#TRPBF	PRODUCTION
LT1580IR-2.5#PBF	PRODUCTION
LT1580IR-2.5#TRPBF	PRODUCTION
LT1580IT#06PBF	PRODUCTION
LT1580IT#PBF	PRODUCTION
LT1580IT7-2.5#06PBF	PRODUCTION
LT1580IT7-2.5#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 1

LT1580 - LDO Linear Regulators

Models for the following parts are available in LTspice:

LT1580
LT1580-2.5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
