LT1615

PRODUCTION

Micropower Step-Up DC/DC Converters in ThinSOT

Data Sheet
Part Models
8
1ku List Price
Starting From $2.44
Viewing:

Part Details

  • Low Quiescent Current:
    • 20µA in Active Mode
    • <1µA in Shutdown Mode
  • Operates with VIN as Low as 1V
  • Low VCESAT Switch: 250mV at 300mA
  • Uses Small Surface Mount Components
  • High Output Voltage: Up to 34V

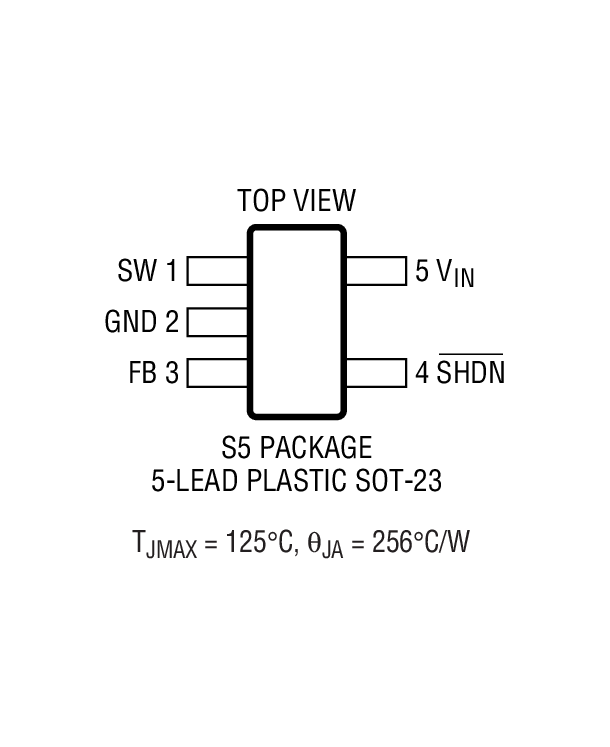

  • Low Profile (1mm) ThinSOT™ Package
LT1615
Micropower Step-Up DC/DC Converters in ThinSOT

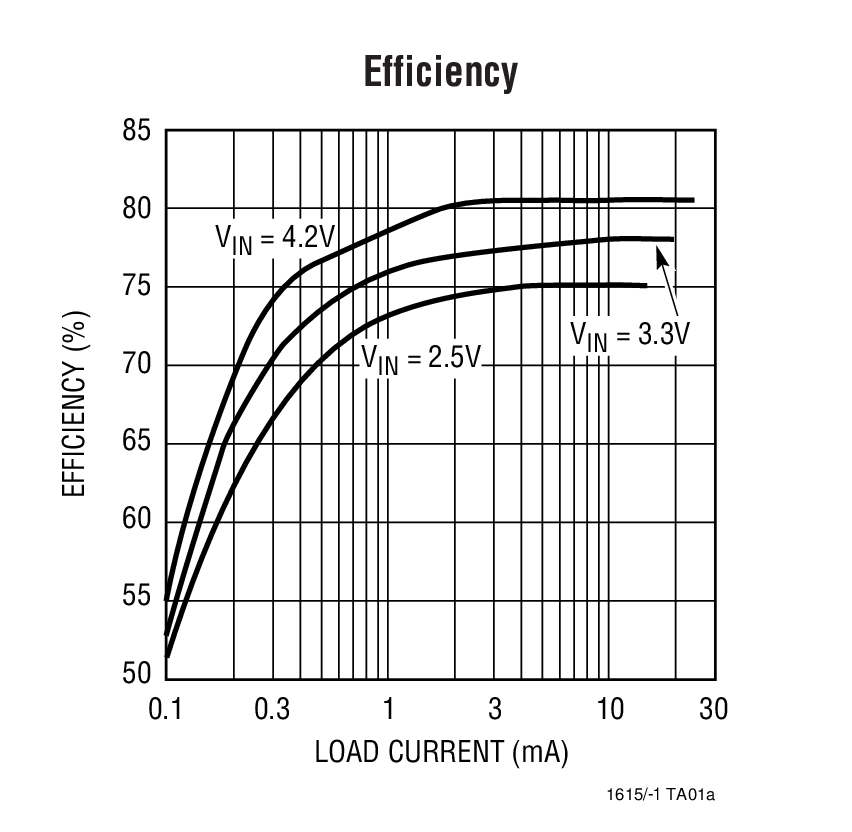

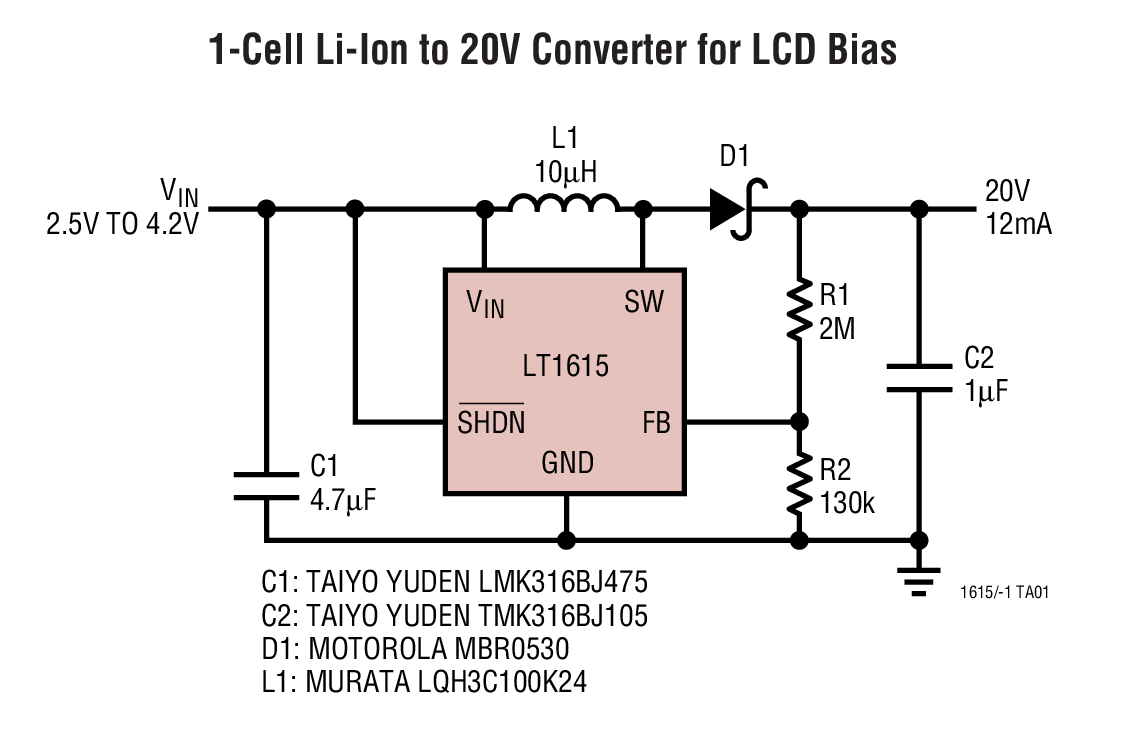

1-Cell Li-Ion to 20V Converter for LCD Bias Efficiency Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

Design Note 3

Technical Articles 2

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 4

Models for the following parts are available in LTspice:

  • LT1615
  • LT1615-1
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
