LT1719

PRODUCTION

4.5ns Single/Dual Supply 3V/5V Comparator with Rail-to-Rail Output

Data Sheet
Part Models
8
1ku List Price
Starting From $2.00
Viewing:

Part Details

  • UltraFast:
    • 4.5ns at 20mV Overdrive
    • 7ns at 5mV Overdrive
  • Low Power: 4.2mA at 3V
  • Separate Input and Output Power Supplies (SO-8 Only)
  • Output Optimized for 3V and 5V Supplies
  • TTL/CMOS Compatible Rail-to-Rail Output
  • Low Power Shutdown Mode: 0.1μA
  • Low Profile (1mm) SOT-23 (ThinSOT™) Package
LT1719
4.5ns Single/Dual Supply 3V/5V Comparator with Rail-to-Rail Output

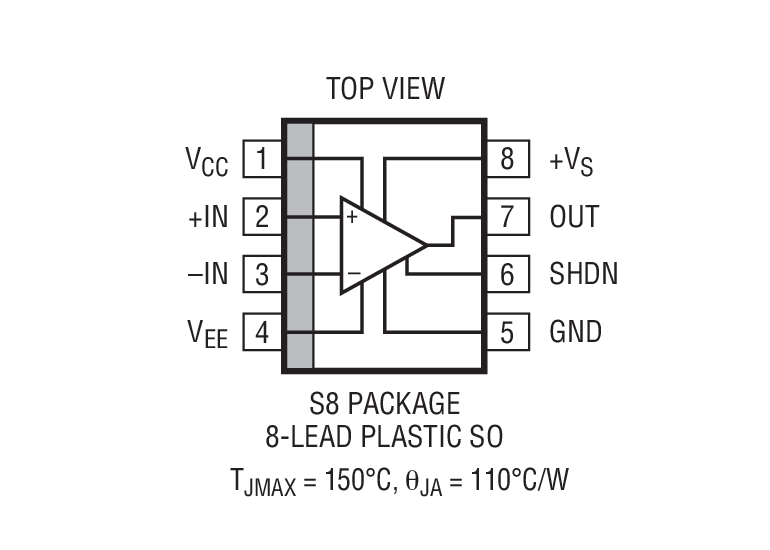

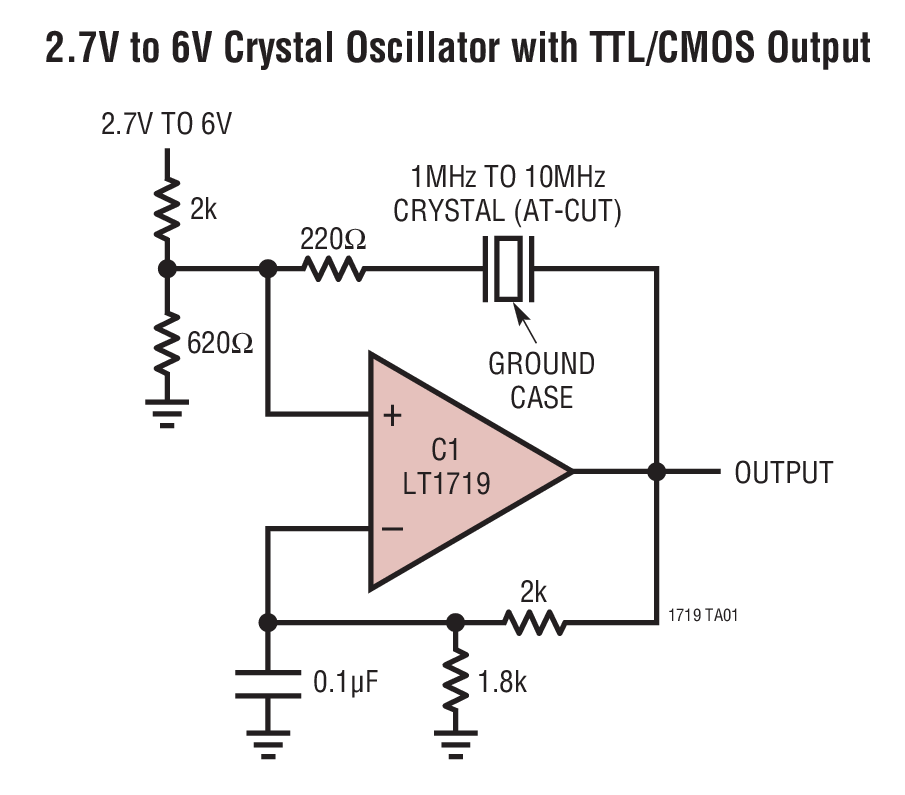

2.7V to 6V Crystal Oscillator with TTL/CMOS Output Propagation Delay vs Overdrive Product Package 1 Product Package 2
