LT1723

PRODUCTION

Dual 200MHz Low Noise Precision Op Amps

Data Sheet

Part Models: 8
1ku List Price: Starting From $1.56

Viewing:

Part Details

3.8nV/√Hz Input Noise Voltage
3.7mA Supply Current
200MHz Gain Bandwidth
Low Total Harmonic Distortion: – 85dBc at 1MHz
70V/μs Slew Rate
400μV Maximum Input Offset Voltage
300nA Maximum Input Bias Current
Unity-Gain Stable
Capacitive Load Stable Up to 100pF
23mA Minimum Output Current
Specified at ±5V and Single 5V
Low Profile (1mm) SOT-23 (ThinSot^™) Package

Part Models: 8
1ku List Price: Starting From $1.56

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

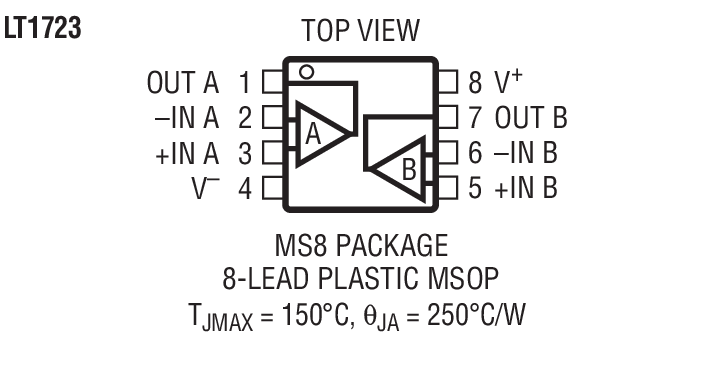

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1723CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

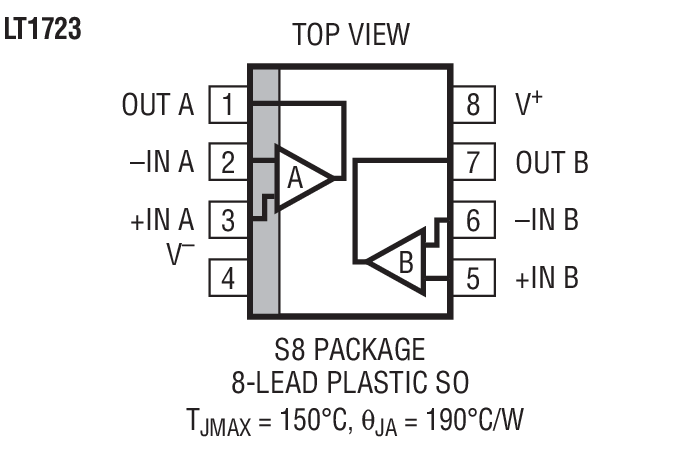

LT1723CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT1723IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1723CMS8#PBF	PRODUCTION
LT1723CMS8#TRPBF	PRODUCTION
LT1723IMS8#PBF	PRODUCTION
LT1723IMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LT1723CMS8#PBF	PRODUCTION
LT1723CMS8#TRPBF	PRODUCTION
LT1723IMS8#PBF	PRODUCTION
LT1723IMS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1723CS8#PBF	PRODUCTION
LT1723CS8#TRPBF	PRODUCTION
LT1723IS8#PBF	PRODUCTION
LT1723IS8#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1723CS8#PBF	PRODUCTION
LT1723CS8#TRPBF	PRODUCTION
LT1723IS8#PBF	PRODUCTION
LT1723IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

LT1723 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT1723

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
