LT3511

PRODUCTION

Monolithic High Voltage Isolated Flyback Converter

Data Sheet
Part Models
8
1ku List Price
Starting From $3.54
Viewing:

Part Details

  • 4.5V to 100V Input Voltage Range
  • Internal 240mA, 150V Power Switch
  • Boundary Mode Operation
  • No Transformer Third Winding or Opto-Isolator Required for Regulation
  • Improved Primary-Side Winding Feedback Load Regulation
  • VOUT Set with Two External Resistors
  • BIAS Pin for Internal Bias Supply and Power Switch Driver
  • No External Start-Up Resistor
  • 16-Lead MSOP Package
LT3511
Monolithic High Voltage Isolated Flyback Converter

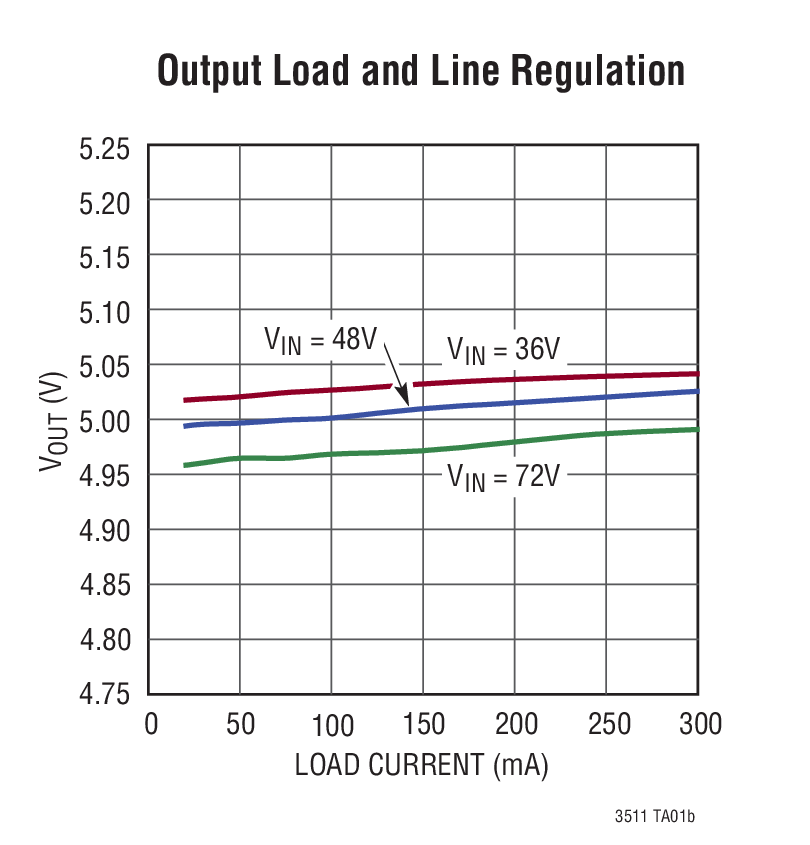

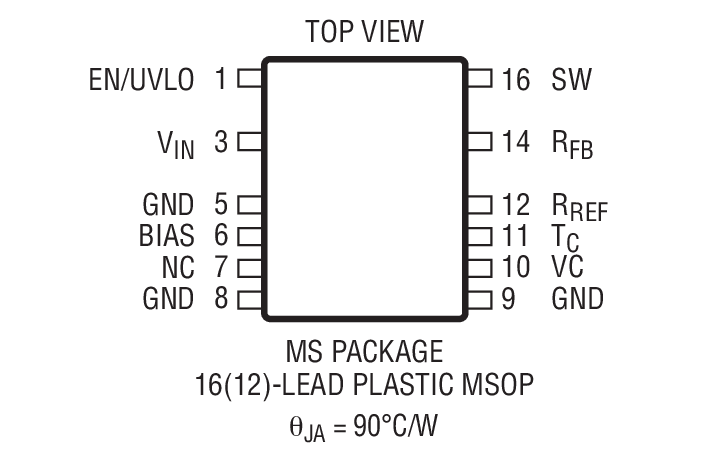

48V to 5V Isolated Flyback Converter Output Load and Line Regulation Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

User Guide 1

Design Note 2

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Interface Transceivers & Isolators 1
LTM2881
PRODUCTION Complete Isolated RS485/RS422 μModule Transceiver + Power
Protection Switches & Controllers 2
LTC4364
RECOMMENDED FOR NEW DESIGNS Surge Stopper with Ideal Diode
LTC4359
RECOMMENDED FOR NEW DESIGNS Ideal Diode Controller with Reverse Input Protection
Switching Regulators & Controllers 1
LTM8048
RECOMMENDED FOR NEW DESIGNS 3.1VIN to 32VIN Isolated μModule (Power Module) DC/DC Converter with LDO Post Regulator
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

  • LT3511
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
DC1517A

LT3511EMS Demo Board | 36V to 75VIN, VOUT = 5V @ 300mA

Buy Now View Details

Product Details

Demonstration circuit 1517A is a monolithic high voltage isolated flyback converter featuring the LT3511. This demo circuit is designed for a 5V isolated output from an input voltage range of 36V to 75V. The maximum output current is up to 300mA. The circuit doesn’t require an opto-isolator, due to the output voltage being sensed directly from the primary side transformer winding. A third winding off the transistor is used to bias the LT3511 for highest efficiency.
DC1517A
LT3511EMS Demo Board | 36V to 75VIN, VOUT = 5V @ 300mA

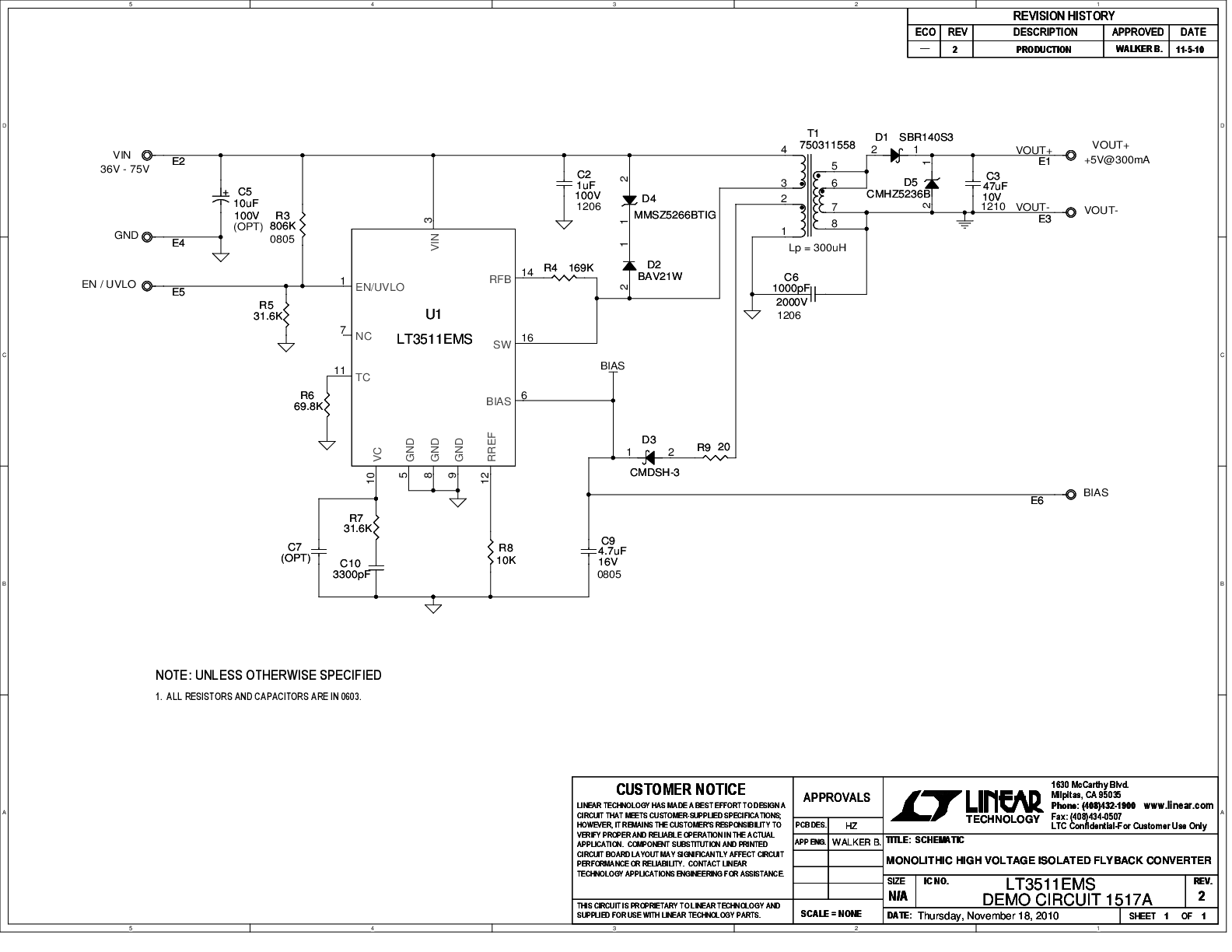

DC1517A - Schematic
