LT6110

RECOMMENDED FOR NEW DESIGNS

Cable/Wire Drop Compensator

Data Sheet

Part Models: 8
1ku List Price: Starting From $1.57

Viewing:

Part Details

Improve Voltage Regulation to a Remote Load by 10×
Ideal for Resistor-Adjustable Voltage Regulators
Gain Configurable with a Single Resistor
High Side Current Sensing:
- Integrated 20mΩ Sense Resistor for Up to 3A
- Ability to Use an External Sense Resistor
300μV Maximum Input Offset Voltage
Output Current Accuracy of 1% Maximum
30μA Maximum Supply Current
2V to 50V Supply Range
Fully Specified from –40°C to 125°C
Available in Low Profile (1mm) ThinSOT^™ and (2mm × 2mm) DFN Packages

Part Models: 8
1ku List Price: Starting From $1.57

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

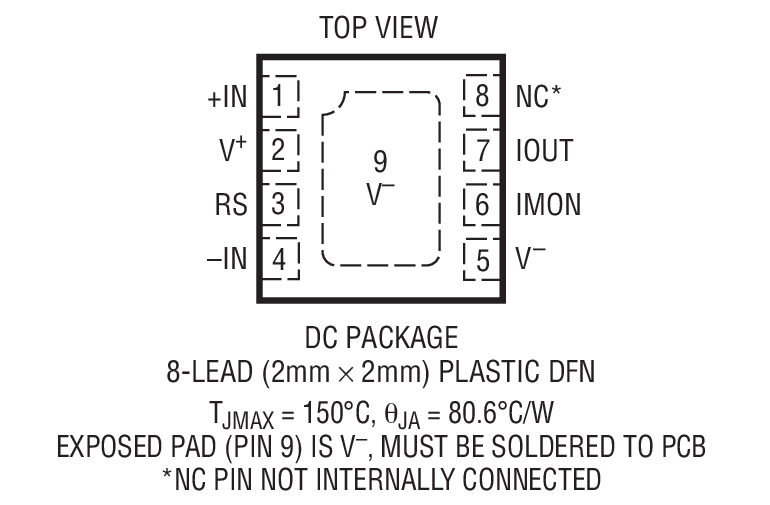

LT6110HDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110HDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

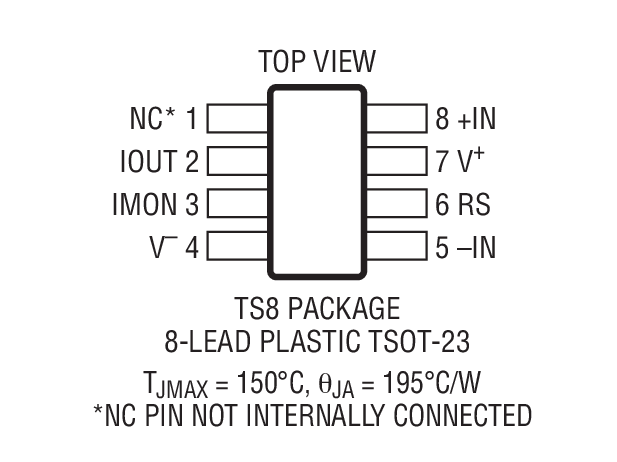

LT6110HTS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110HTS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110IDC#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110IDC#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110ITS8#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6110ITS8#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit
LTC4361-1 LTC4361-2		Overvoltage/Overcurrent Protection Controller

Tools & Simulations

LTspice 4

Models for the following parts are available in LTspice:

LT6110

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

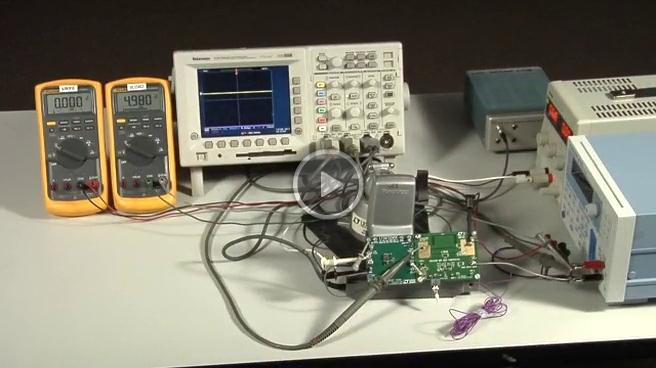

Evaluation Kits

LT6110 | Cable/Wire Drop Compensator

Buy Now View Details

Product Details

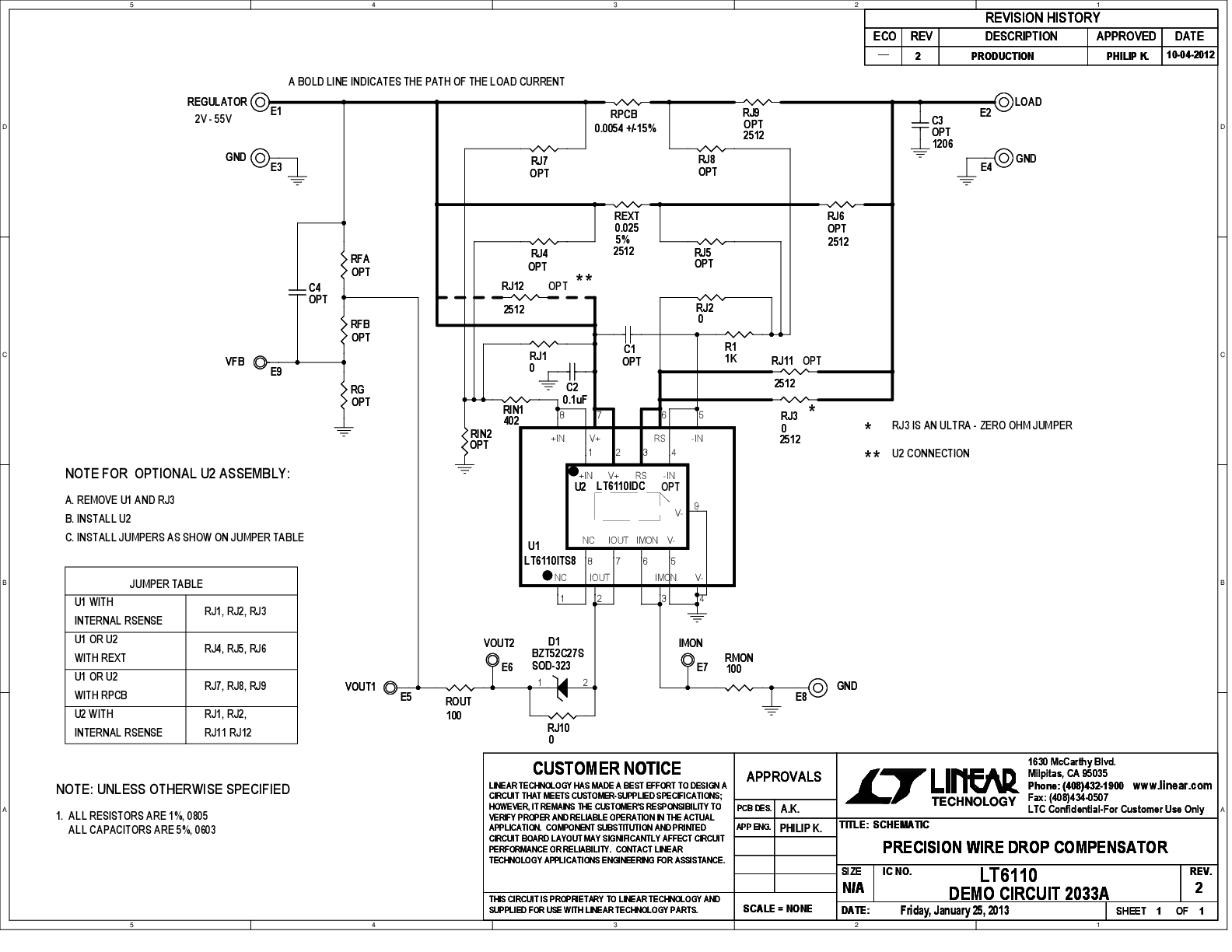

DC2033A: Demo Board for the LT6110 Cable/Wire Drop Compensator.
