LTC1472

PRODUCTION

Protected PCMCIA VCC and VPP Switching Matrix

Data Sheet
Part Models
2
1ku List Price
Starting From $4.26
Viewing:

Part Details

  • Both VCC and VPP Switching in a Single Package
  • Built-In Current Limit and Thermal Shutdown
  • 16-Pin (Narrow) SOIC Package
  • Inrush Current Limited (Drives 150µF Loads)
  • Continuous 12V Power Not Required
  • Extremely Low RDS(ON) NMOS Switches
  • Guaranteed 1A VCC Current and 120mA VPP Current
  • 1µA Quiescent Current in Standby
  • No External Components Required
  • Compatible with Industry Standard Controllers
  • Break-Before-Make Switching
  • Controlled Rise and Fall Times
LTC1472
Protected PCMCIA VCC and VPP Switching Matrix

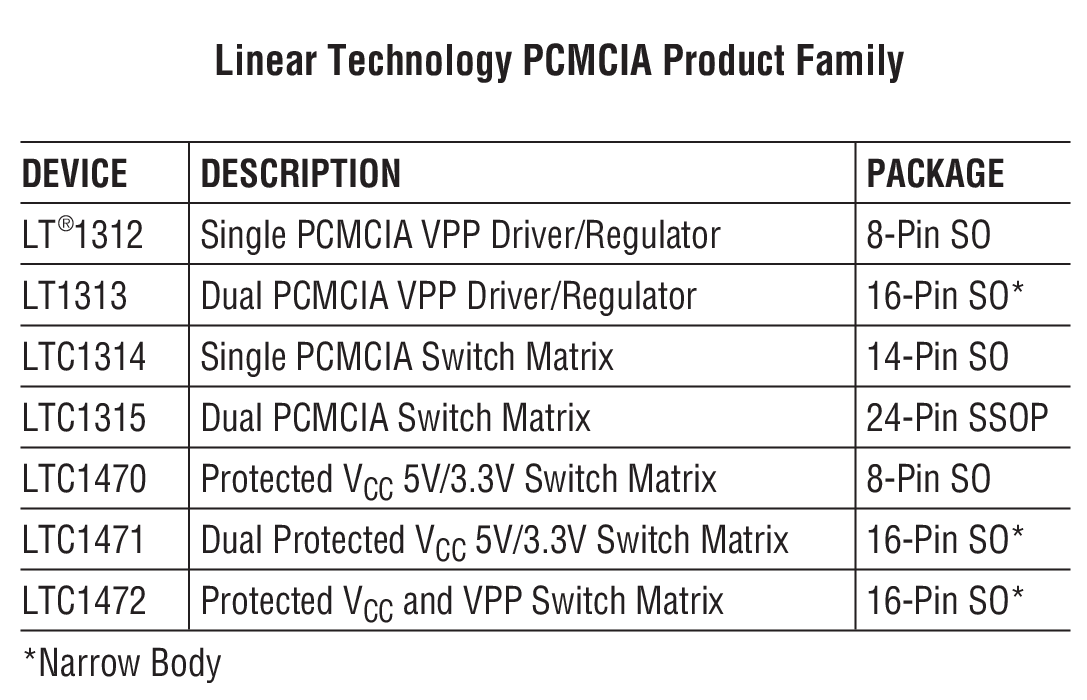

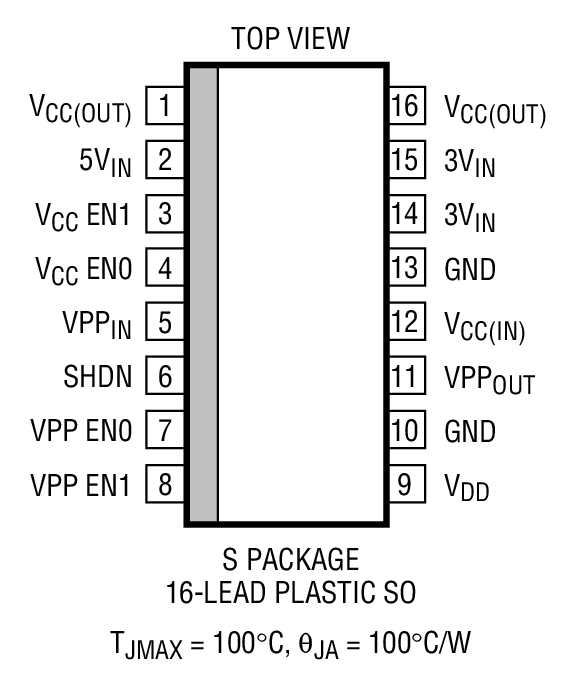

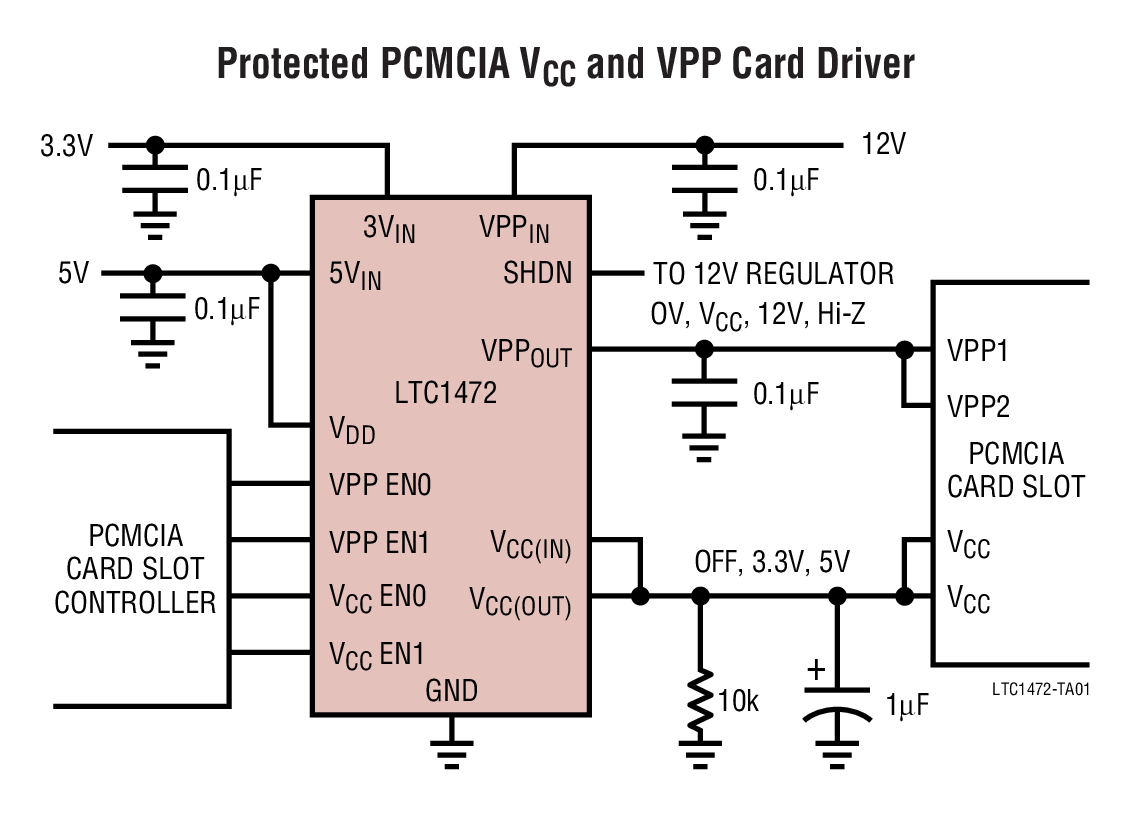

Protected PCMCIA VCC and VPP Card Driver Linear Technology PCMCIA Product Family Product Package 1
