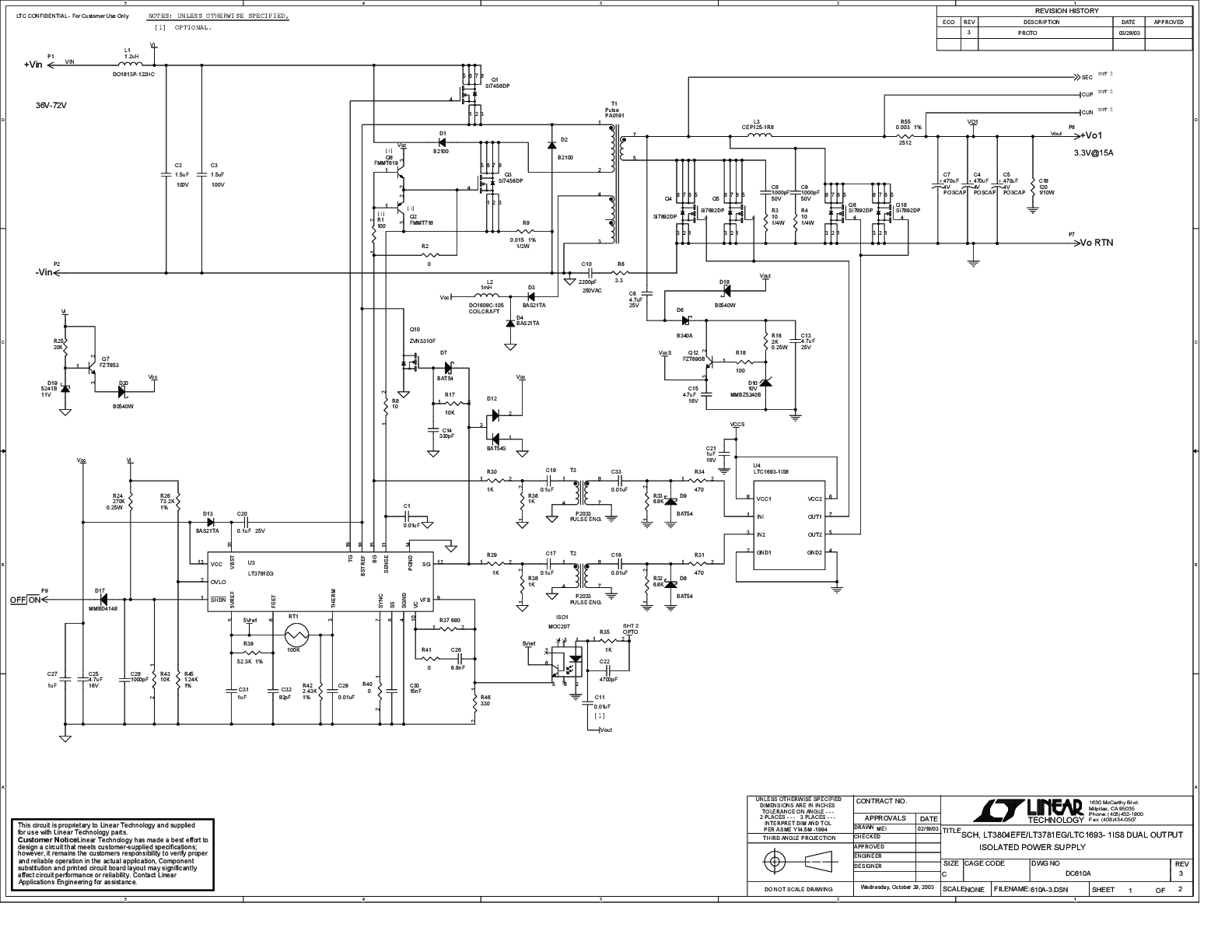

LTC1693

PRODUCTION

High Speed Single/Dual N-Channel MOSFET Drivers

Data Sheet

Part Models: 10
1ku List Price: Starting From $2.35

Viewing:

Part Details

Dual MOSFET Drivers in SO-8 Package or Single MOSFET Driver in MSOP Package
1GΩ Electrical Isolation Between the Dual Drivers Permits High/Low Side Gate Drive
1.5A Peak Output Current
16ns Rise/Fall Times at V_CC = 12V, C_L = 1nF
Wide V_CC Range: 4.5V to 13.2V
CMOS Compatible Inputs with Hysteresis, Input Thresholds are Independent of V_CC
Driver Input Can Be Driven Above V_CC
Undervoltage Lockout
Thermal Shutdown

Part Models: 10
1ku List Price: Starting From $2.35

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

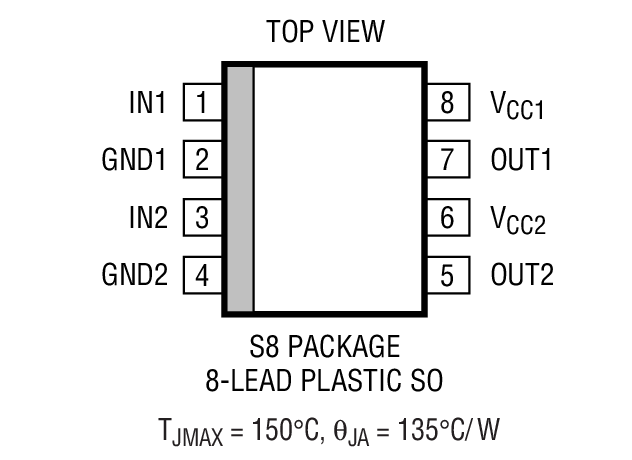

LTC1693-1CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-1CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-1IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-1IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

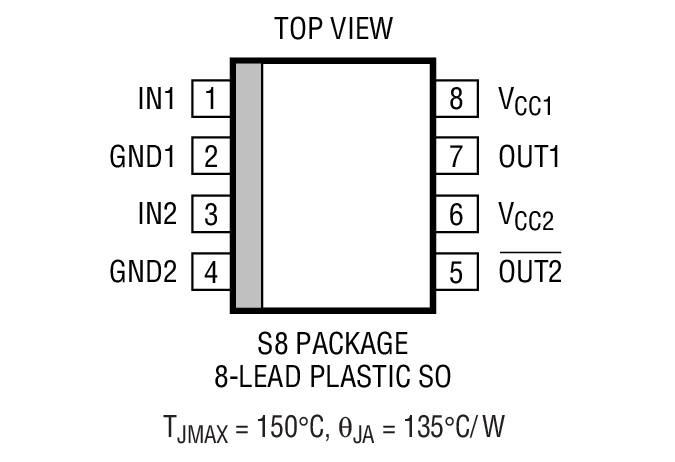

LTC1693-2CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-2CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-2IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-2IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

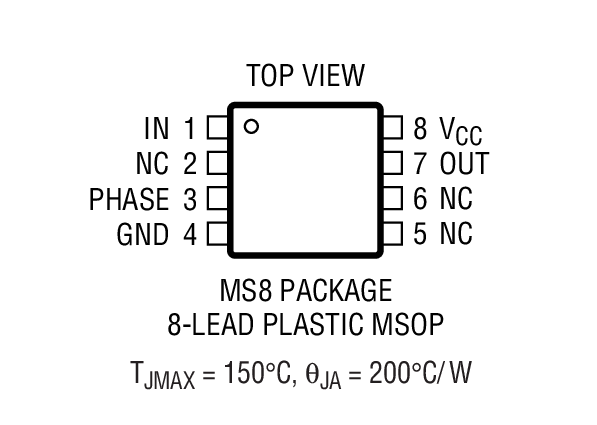

LTC1693-3CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1693-3CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1693-1CS8#PBF	PRODUCTION
LTC1693-1CS8#TRPBF	PRODUCTION
LTC1693-1IS8#PBF	PRODUCTION
LTC1693-1IS8#TRPBF	PRODUCTION
LTC1693-2CS8#PBF	PRODUCTION
LTC1693-2CS8#TRPBF	PRODUCTION
LTC1693-2IS8#PBF	PRODUCTION
LTC1693-2IS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC1693-3CMS8#PBF	PRODUCTION
LTC1693-3CMS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTC1693-1
LTC1693-2
LTC1693-3
LTC1693-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
