LTC1876

PRODUCTION

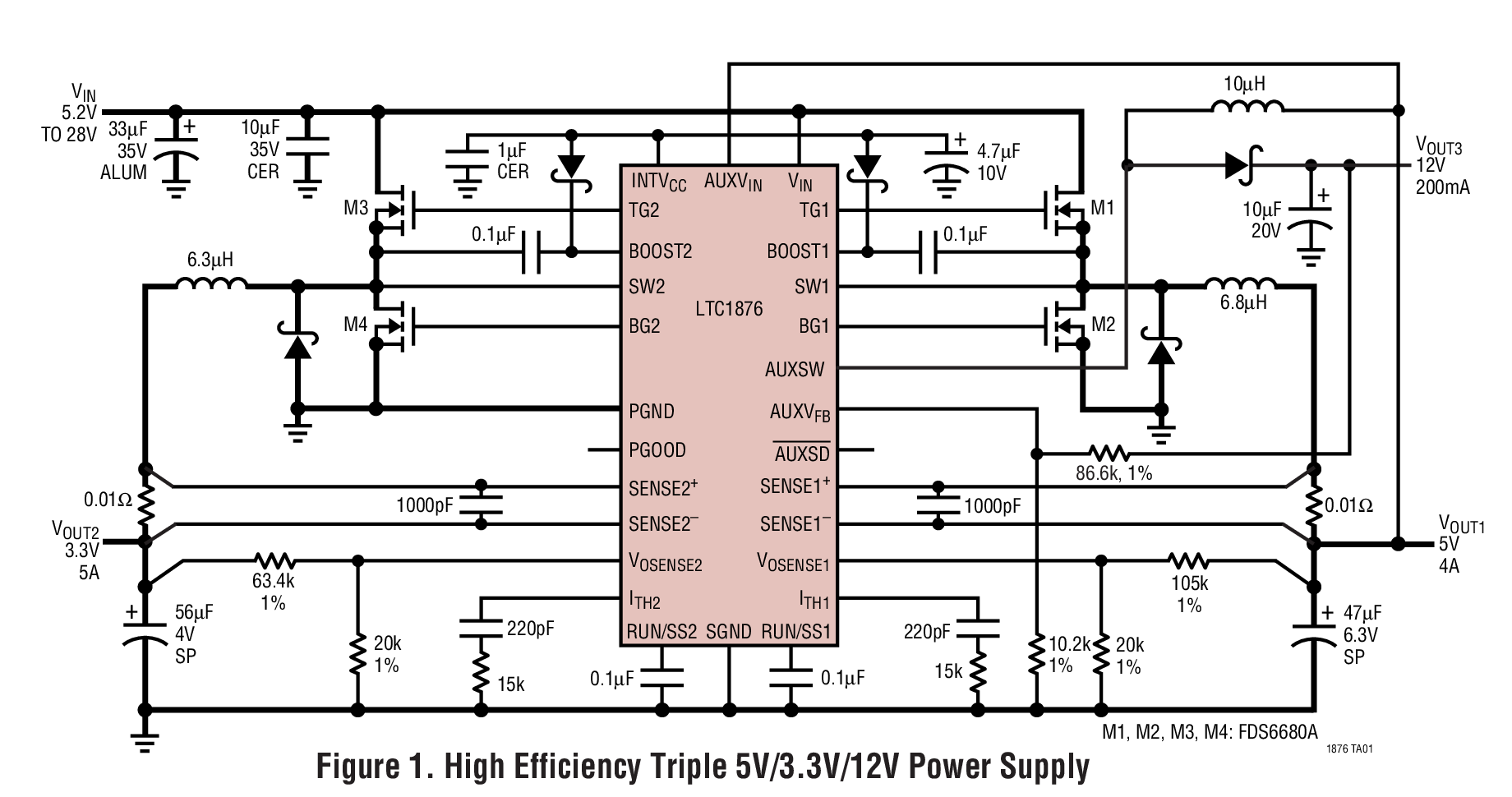

High Efficiency, 2-Phase, Dual Synchronous Step-Down Switching Controller and Step-Up Regulator

Data Sheet

Part Models: 2
1ku List Price: Starting From $7.45

Viewing:

Part Details

Step-Down Controller

Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
Power Good Output Voltage Indicator
OPTI-LOOP^™ Compensation Minimizes C_OUT
DC Programmed Fixed Frequency 150kHz to 300kHz
Wide V_IN Range: 3.5V to 36V Operation
Very Low Dropout Operation: 99% Duty Cycle
Adjustable Soft-Start Current Ramping
Latched Short-Circuit Shutdown with Defeat Option
Remote Output Voltage Sense and OV Protection
5V and 3.3V Standby Regulators
Selectable Const. Freq. or Burst Mode^™ Operation

Step-Up Regulator

High Operating Switching Frequency of 1.2MHz
Low Internal V_CESAT Switch: 400mV @ 1A, V_IN = 3V
Wide V_IN Range: 2.6V to 16V Operation
High Output Voltage: Up to 34V

Part Models: 2
1ku List Price: Starting From $7.45

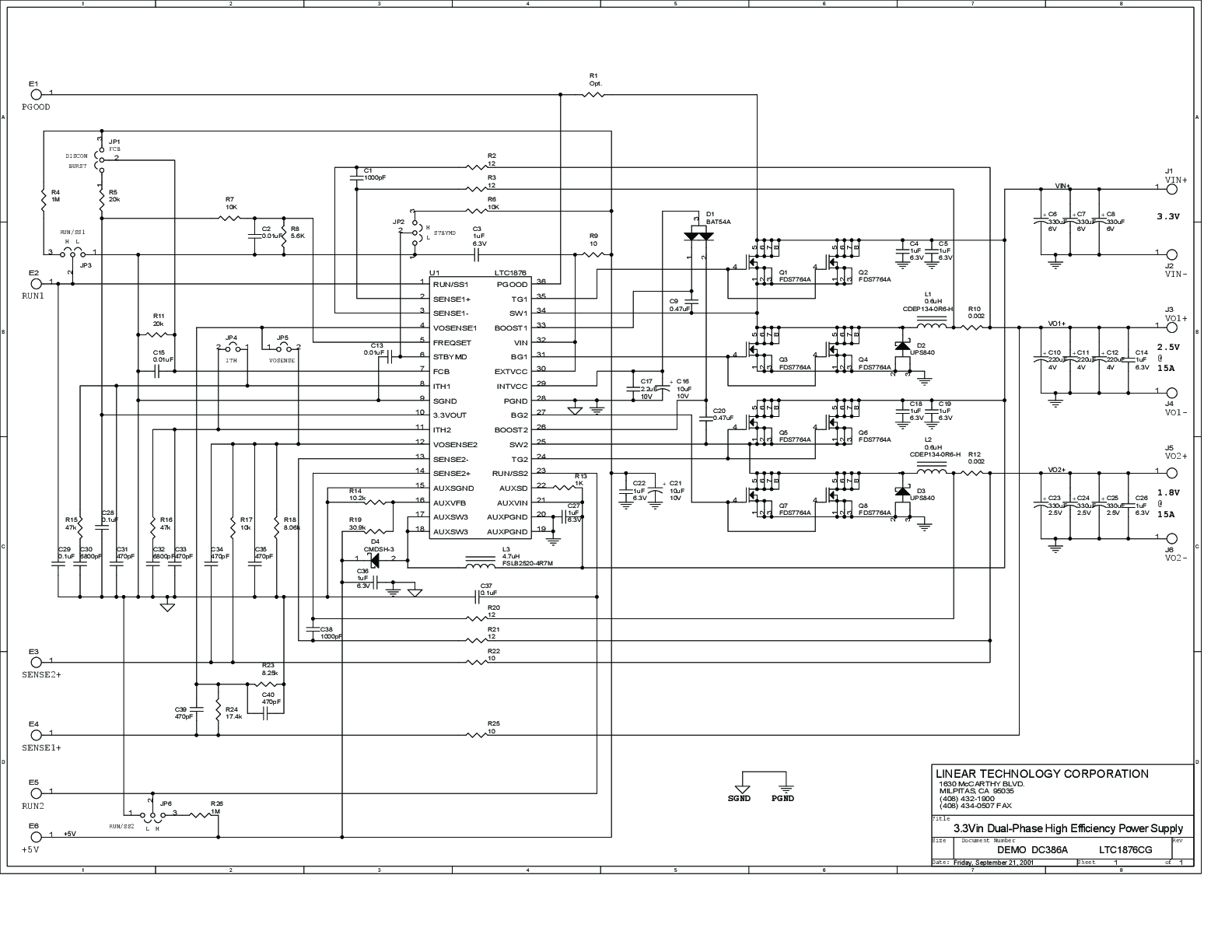

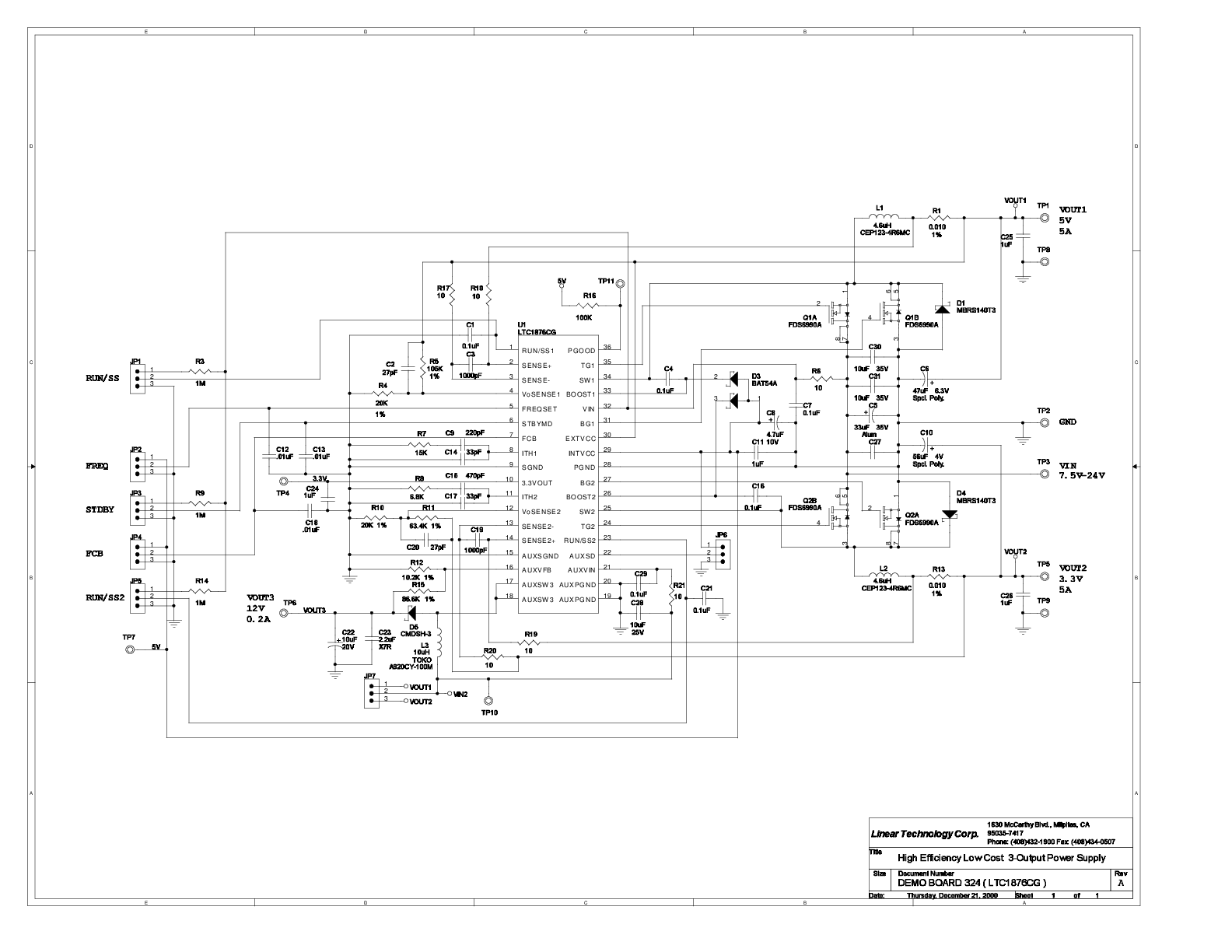

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

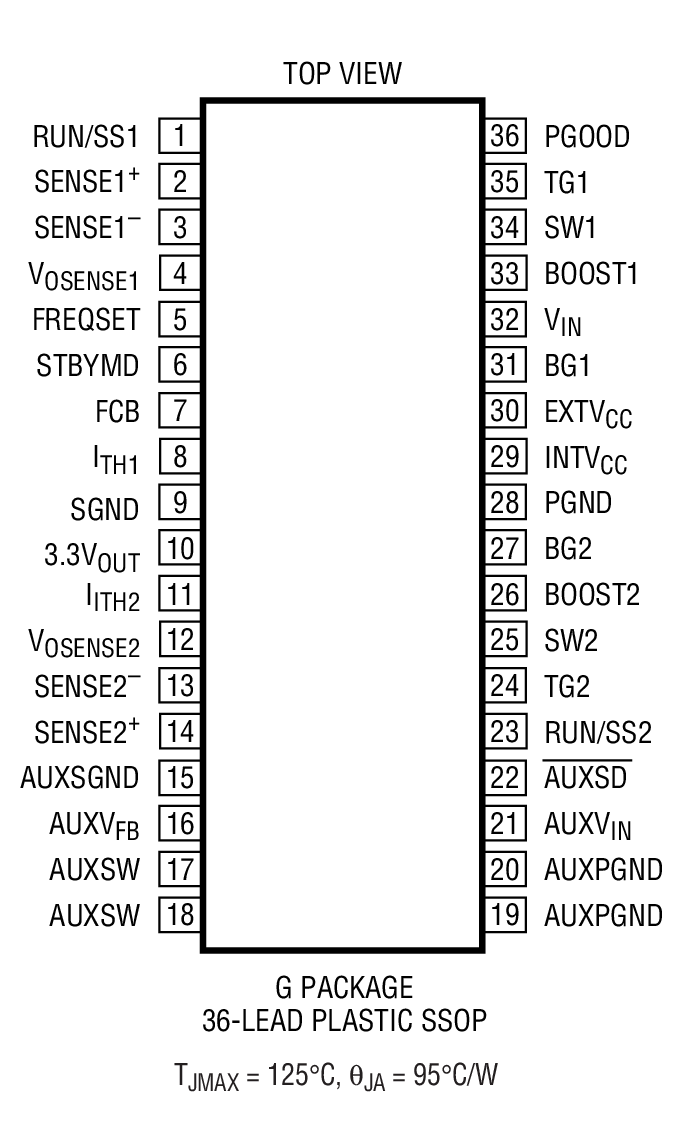

LTC1876EG#PBF	36-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1876EG#TRPBF	36-Lead SSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 18, 2019 - 19_0266 Laser Top Mark for SSOP36/44/48 Packages assembled in ADPG and UTAC
		PCN19_0266_Form Material_Report Detailed Parts List
LTC1876EG#PBF	PRODUCTION
LTC1876EG#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
