LTC2956

RECOMMENDED FOR NEW DESIGNS

Wake-Up Timer with Pushbutton Control

Data Sheet

Part Models: 16
1ku List Price: Starting From $2.40

Viewing:

Part Details

1.5V to 36V Supply Input Range

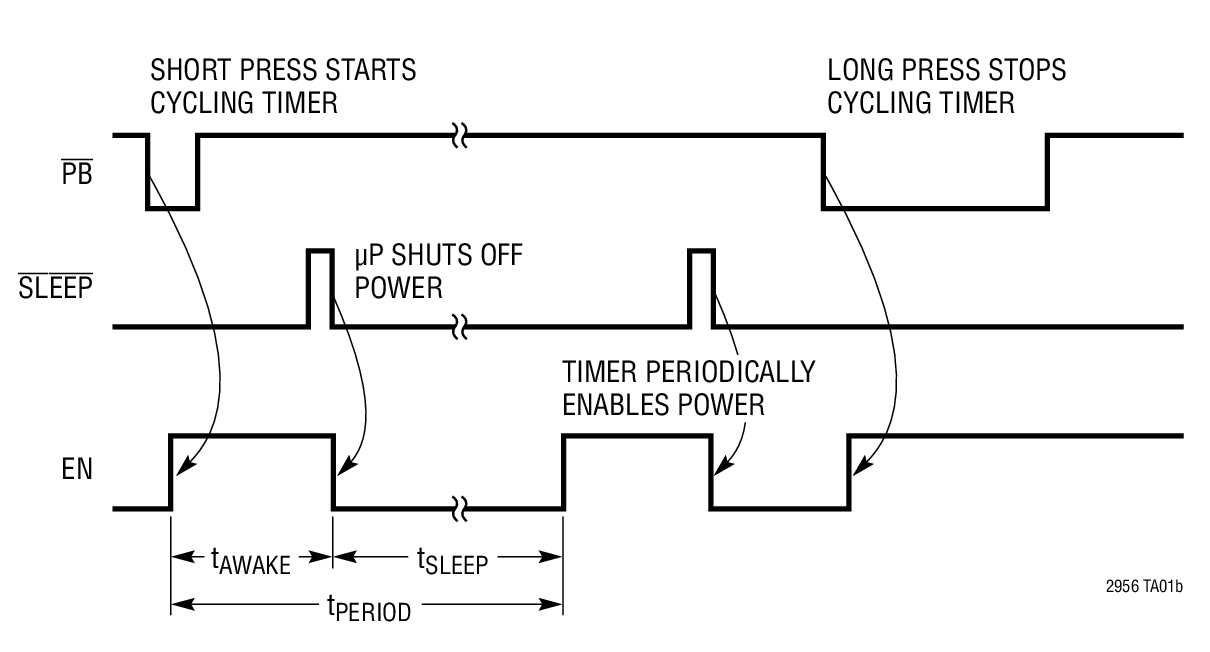

Adjustable Wake-Up Period: 250ms to 39 Days
Adjustable Maximum Awake Time
0.8μA Quiescent Current
0.3μA Shutdown Current
Pushbutton Input with Debouncing

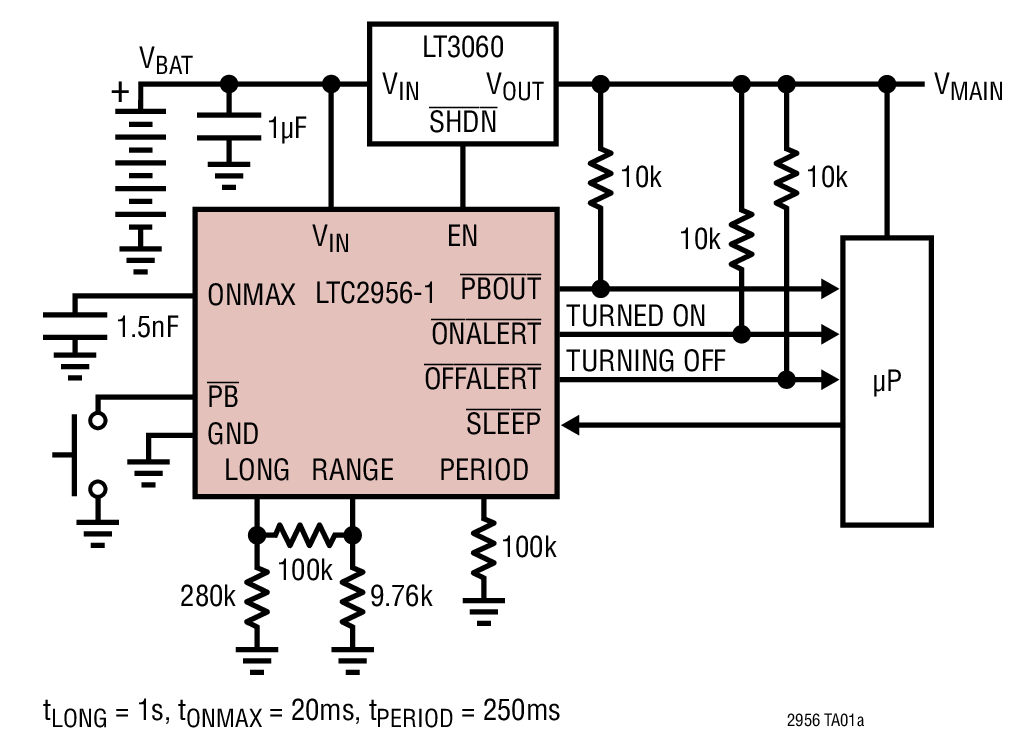

Low Leakage EN Output Allows DC/DC Converter Control (LTC2956-1)
High Voltage EN Output Drives External P-Channel MOSFET (LTC2956-2)
±25kV ESD HBM on PB Input

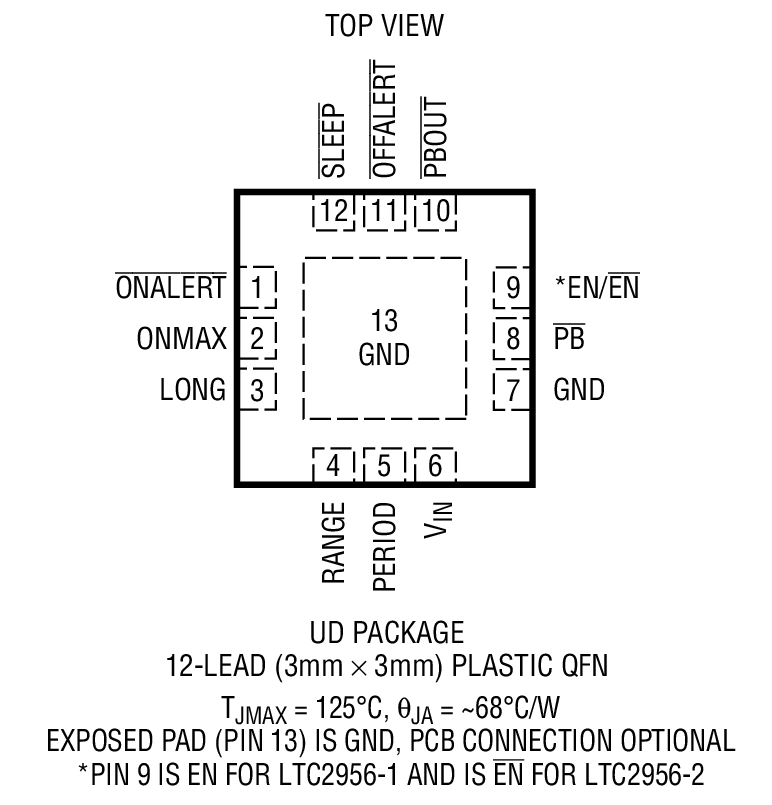

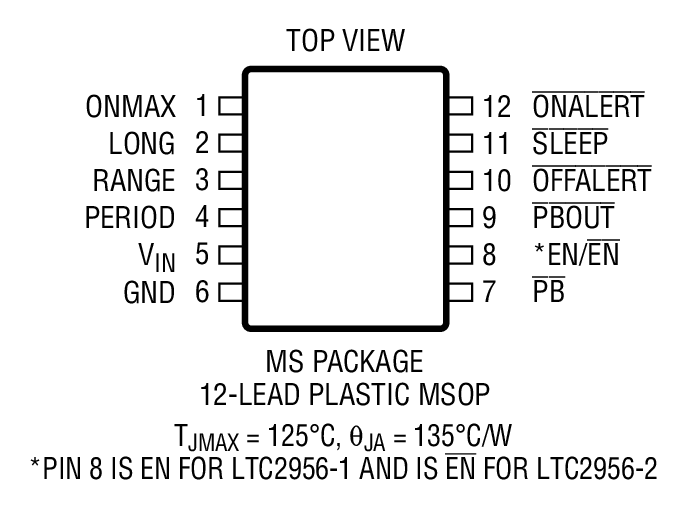

12-Lead 3mm × 3mm QFN and MSOP Packages

Part Models: 16
1ku List Price: Starting From $2.40

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2956CMS-1#PBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CMS-1#TRPBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CMS-2#PBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CMS-2#TRPBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CUD-1#PBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CUD-1#TRPBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CUD-2#PBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956CUD-2#TRPBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IMS-1#PBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IMS-1#TRPBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IMS-2#PBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IMS-2#TRPBF	12-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IUD-1#PBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IUD-1#TRPBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IUD-2#PBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2956IUD-2#TRPBF	12-Lead QFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2020 - 20_0129 Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0129_Form Material_Report
LTC2956CMS-1#PBF	PRODUCTION
LTC2956CMS-1#TRPBF	PRODUCTION
LTC2956CMS-2#PBF	PRODUCTION
LTC2956CMS-2#TRPBF	PRODUCTION
LTC2956IMS-1#PBF	PRODUCTION
LTC2956IMS-1#TRPBF	PRODUCTION
LTC2956IMS-2#PBF	PRODUCTION
LTC2956IMS-2#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 1
LTC6995		TimerBlox: Long Timer, Low Frequency Oscillator
Protection Switches & Controllers 1
LTC4231	RECOMMENDED FOR NEW DESIGNS	Micropower Hot Swap Controller

Tools & Simulations

LTspice 1

LTC2956 - Power Monitor, Control, and Protection

Models for the following parts are available in LTspice:

LTC2956-1
LTC2956-2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

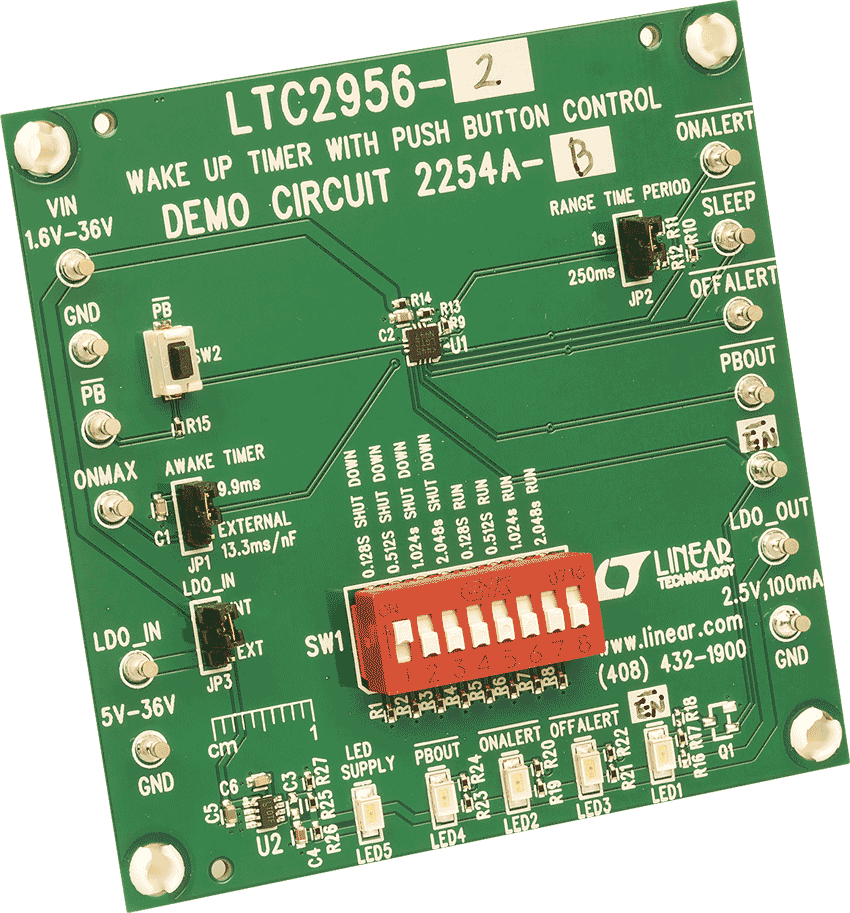

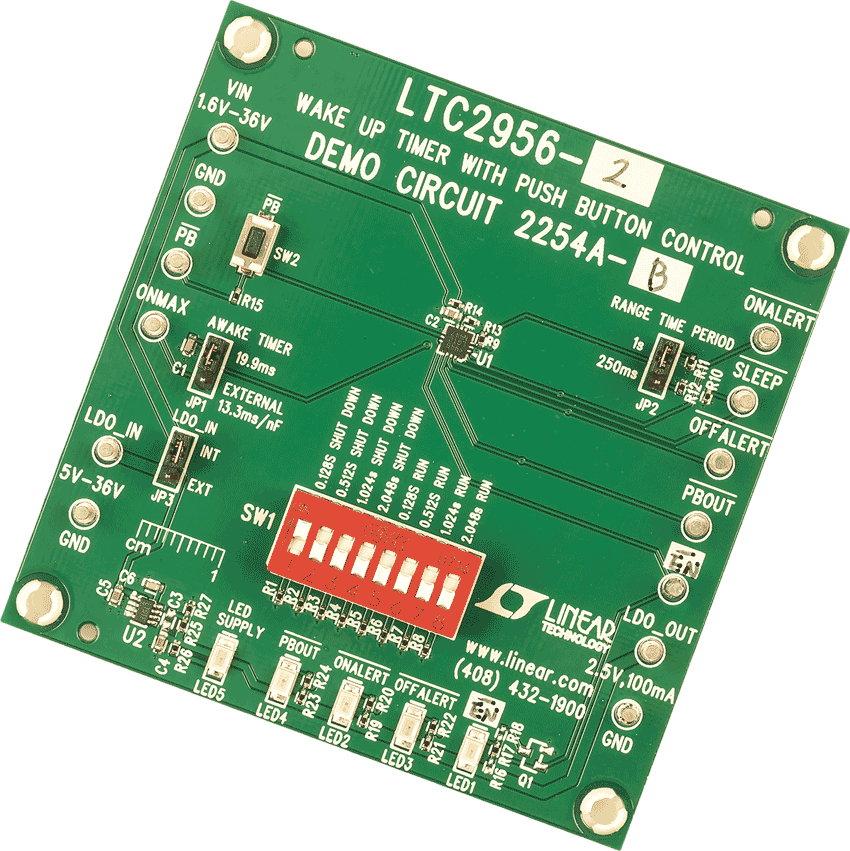

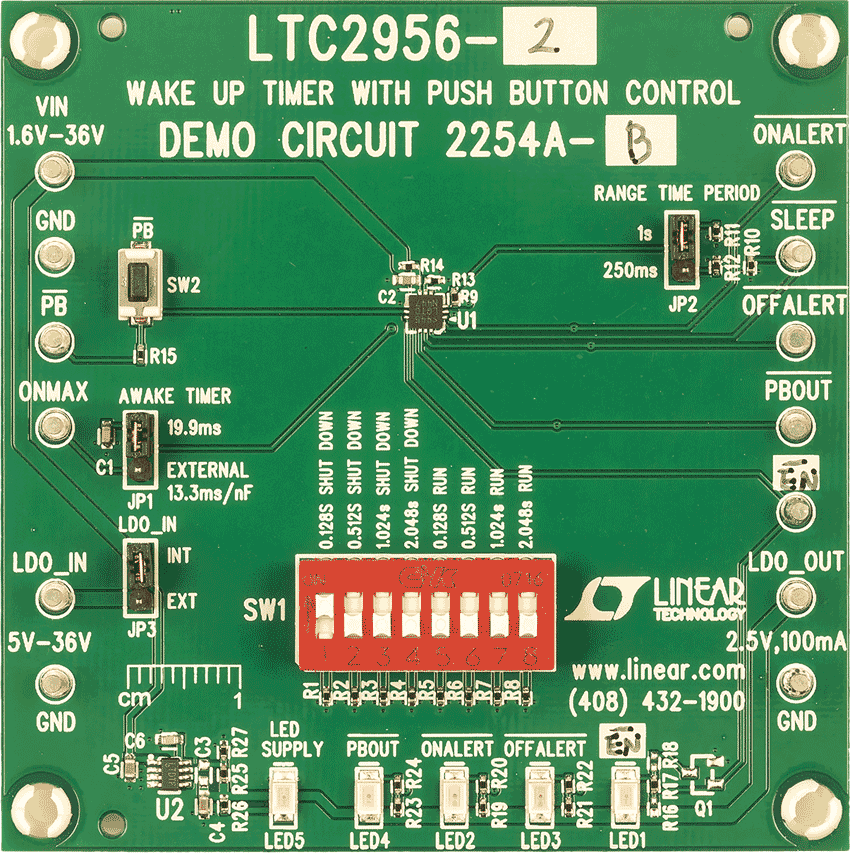

LTC2956-1 Demo Board | Wake-Up Timer with Pushbutton Control, EN Pin

Buy Now View Details

Product Details

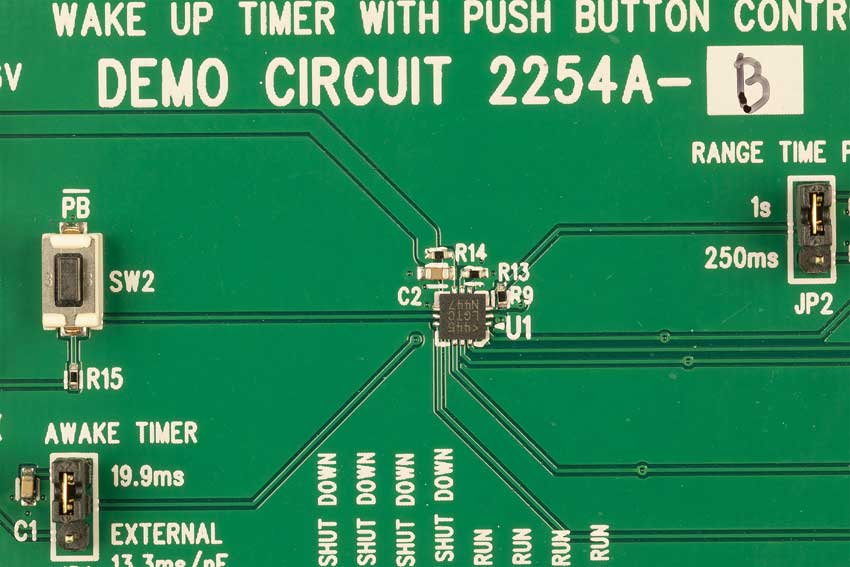

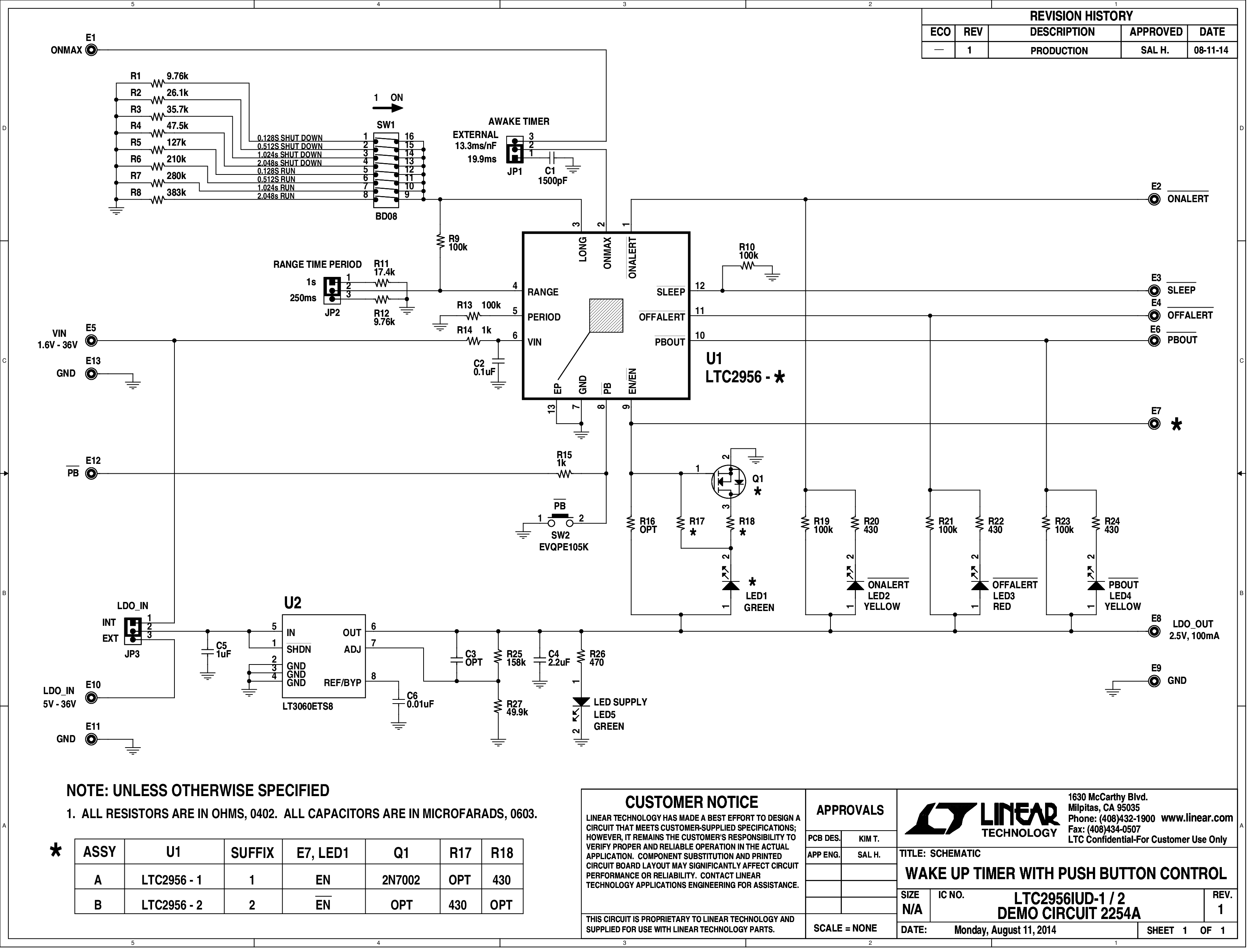

Demonstration circuits 2254A-A and 2254A-B feature the LTC2956-1 and LTC2956-2, respectively. The LTC2956 is a micropower, wide input voltage range, configurable wake-up timer with pushbutton control. It periodically wakes up and turns on a connected system to perform tasks like monitoring temperature or capturing images. After completing the task, the LTC2956 turns the system off to conserve power. The wake-up timer period can be adjusted from 250ms to 39 days.
