LTC3407A

PRODUCTION

Dual Synchronous 600mA, 1.5MHz Step-Down DC/DC Regulator

Part Models: 8
1ku List Price: Starting From $3.14

Viewing:

Part Details

High Efficiency: Up to 96%
Low Ripple (35mV_P-P) Burst Mode Operation; I_Q = 40μA
1.5MHz Constant Frequency Operation
No Schottky Diodes Required
Low R_DS(ON) Internal Switches: 0.35Ω
Current Mode Operation for Excellent Line and Load Transient Response
Short-Circuit Protected
Low Dropout Operation: 100% Duty Cycle
Ultralow Shutdown Current: I_Q < 1µA
Output Voltages from 5V down to 0.6V
Power-On Reset Output
Externally Synchronizable Oscillator
Optional External Soft-Start

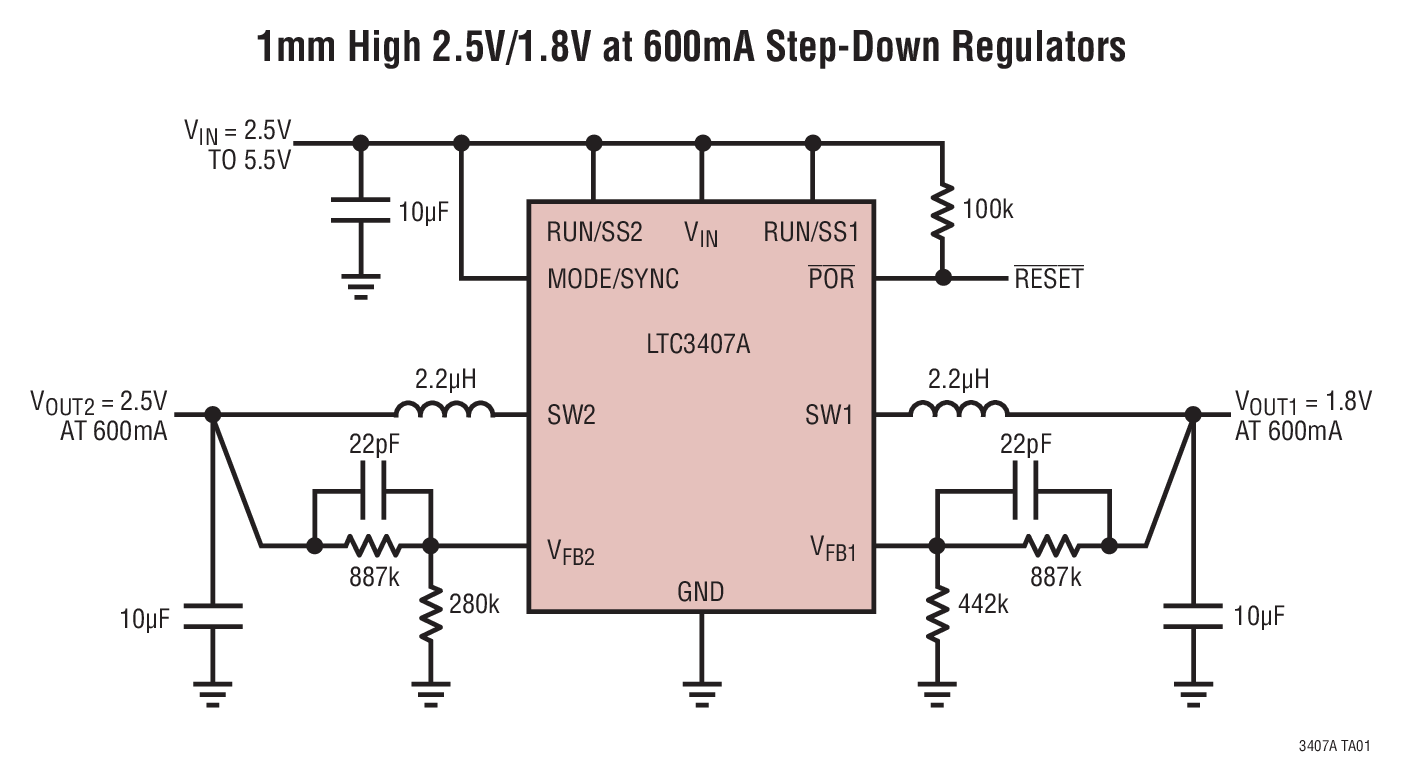

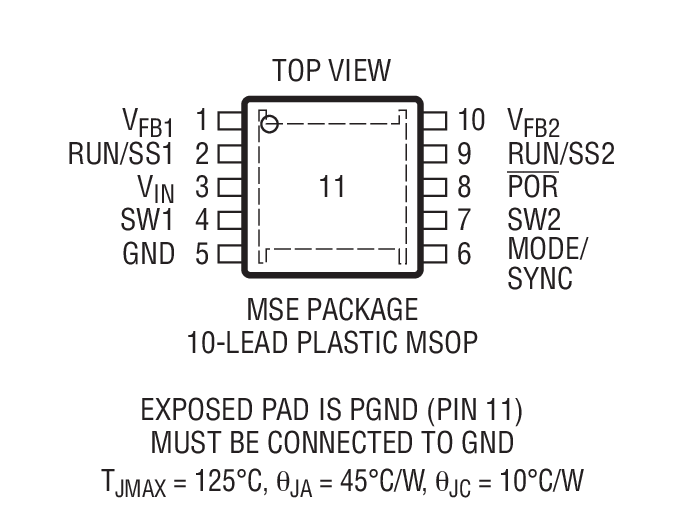

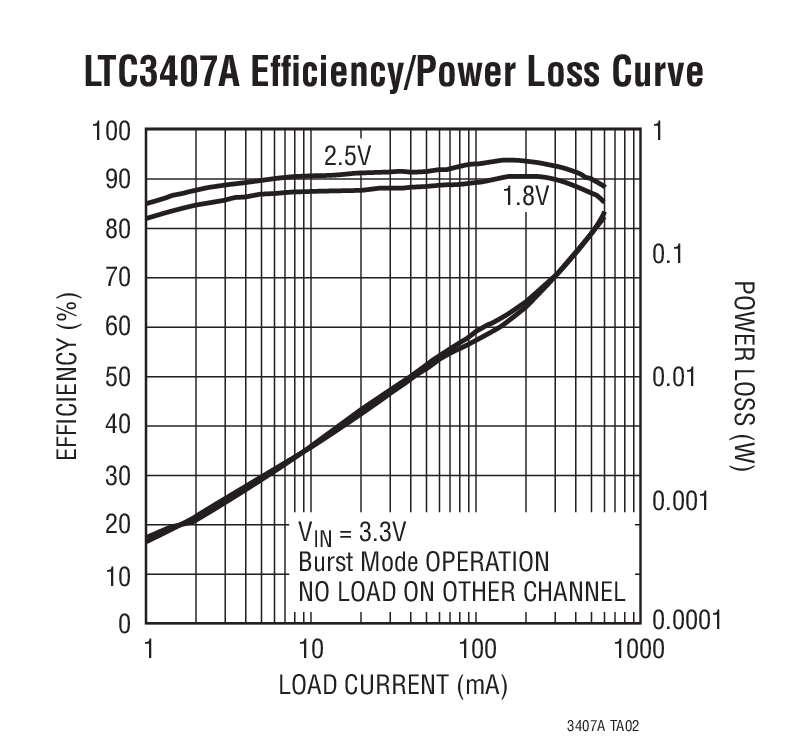

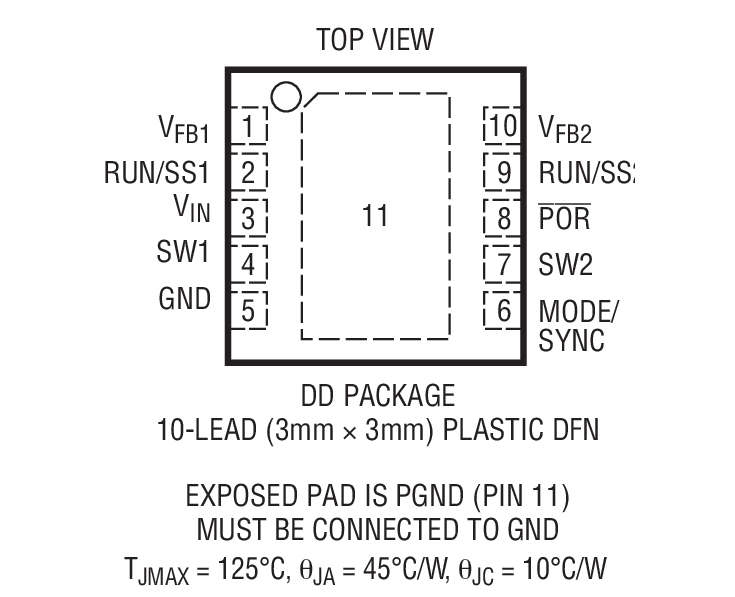

Small Thermally Enhanced MSOP and 3mm × 3mm DFN Packages

The LTC3407A is a dual, constant frequency, synchronous step-down DC/DC converter. Intended for low power applications, it operates from a 2.5V to 5.5V input voltage range and has a constant 1.5MHz switching frequency, enabling the use of tiny, low cost capacitors and inductors 1mm or less in height. Each output voltage is adjustable from 0.6V to 5V. Internal synchronous 0.35Ω, 1A power switches provide high efficiency without the need for external Schottky diodes.

A user selectable mode input is provided to allow the user to trade-off ripple noise for low power efficiency. Burst Mode^® operation provides the highest efficiency at light loads, while Pulse Skip Mode provides the lowest ripple noise at light loads.

To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.


	b
LTC3407	2x 600mA	1.5MHz
LTC3407-2	2x 800mA	2.25MHz
LTC3407-3	2x 800mA	2.5MHz	Fixed 1.8V/3.3V
LTC3407-4	2x 800mA	2.25MHz	Reduced POR Delay
LTC3407A	2x 600mA	1.5MHz	Low Ripple Burst Mode
LTC3407A-2	2x 800mA	2.25MHz	Low Ripple Burst Mode

Applications

PDAs/Palmtop PCs
Digital Cameras
Cellular Phones
Wireless and DSL Modems

Part Models: 8
1ku List Price: Starting From $3.14

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3407AEDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AEDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AEMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AEMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC3407AIMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC3407AEMSE#PBF	PRODUCTION
LTC3407AEMSE#TRPBF	PRODUCTION
LTC3407AIMSE#PBF	PRODUCTION
LTC3407AIMSE#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Oscillators 1
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller
Supervisory Circuits & Reset ICs 1
LTC2935	PRODUCTION	Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

Tools & Simulations

LTspice 1

LTC3407A - Step-Down (Buck) Regulators

Models for the following parts are available in LTspice:

LTC3407
LTC3407-2
LTC3407-3
LTC3407-4
LTC3407A
LTC3407A-2

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

LTC3407
LTC3407-2
LTC3407-3
LTC3407-4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC3407AEDD Demo Board | (DFN) 2.5 ≤ VIN ≤ 5.5V, VOUT1 = 1.2V/1.5V/1.8V @ 0.6A, VOUT2 = 2.5V/3.3V @ 0.6A

Buy Now View Details

Product Details

Demonstration circuit DC1180 is a dual output regulator consisting of two identical constant frequency step-down converters, based on the LTC3407A monolithic dual synchronous buck regulator in the 3 × 3 DFN-10 package. The LTC3407A is similar to the LTC3407 but has a lower ripple Burst Mode operation and includes an optional external soft-start. The DC1180 has an input voltage range of 2.5V to 5.5V, and either output is capable of delivering up to 600mA of output current. In Burst Mode^® operation, the DC supply current is typically only 25 µA (per channel) at no load, and less than 1 µA in shutdown. The DC1180 is a very efficient circuit: up to 96% for either circuit.
