LTC3717

PRODUCTION

Wide Operating Range, No R_SENSE^™ Step-Down Controller for DDR/QDR Memory Termination

Part Models: 2
1ku List Price: Starting From $3.54

Viewing:

Part Details

V_OUT = 1/2 V_IN (Supply Splitter)
Adjustable and Symmetrical Sink/Source Current Limit up to 20A
±0.65% Output Voltage Accuracy

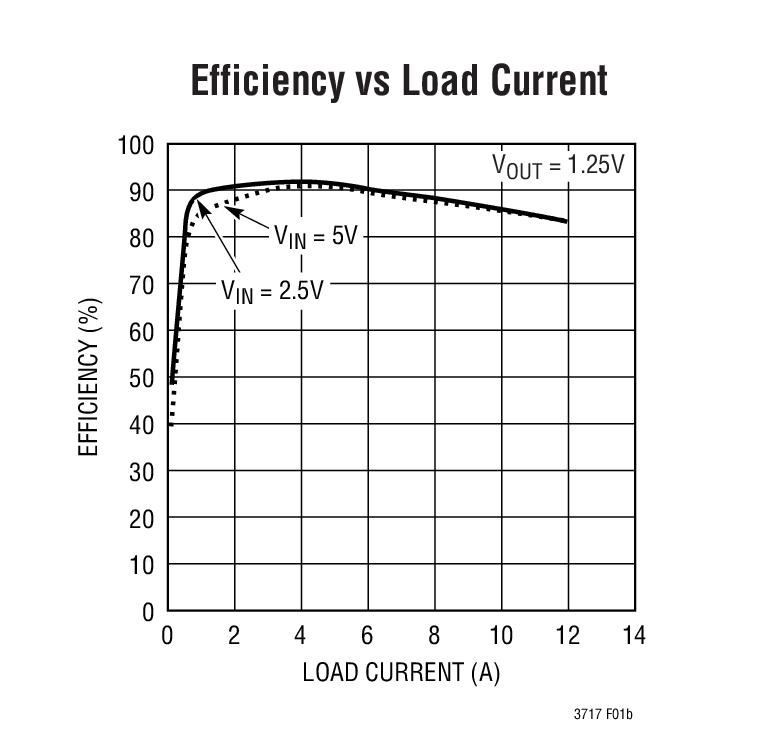

Up to 97% Efficiency
No Sense Resistor Required
Ultrafast Transient Response
True Current Mode Control
2% to 90% Duty Cycle at 200kHz
t_ON(MIN) ≤ 100ns
Stable with Ceramic C_OUT
Dual N-Channel MOSFET Synchronous Drive
Power Good Output Voltage Monitor
Wide V_CC Range: 4V to 36V
Adjustable Switching Frequency up to 1.5MHz
Output Overvoltage Protection
Optional Short-Circuit Shutdown Timer

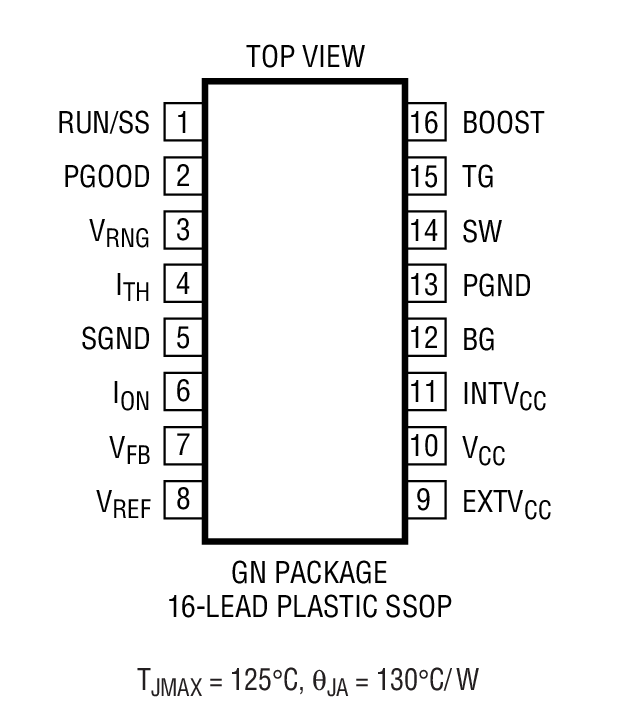

Available in a 16-Pin Narrow SSOP Package

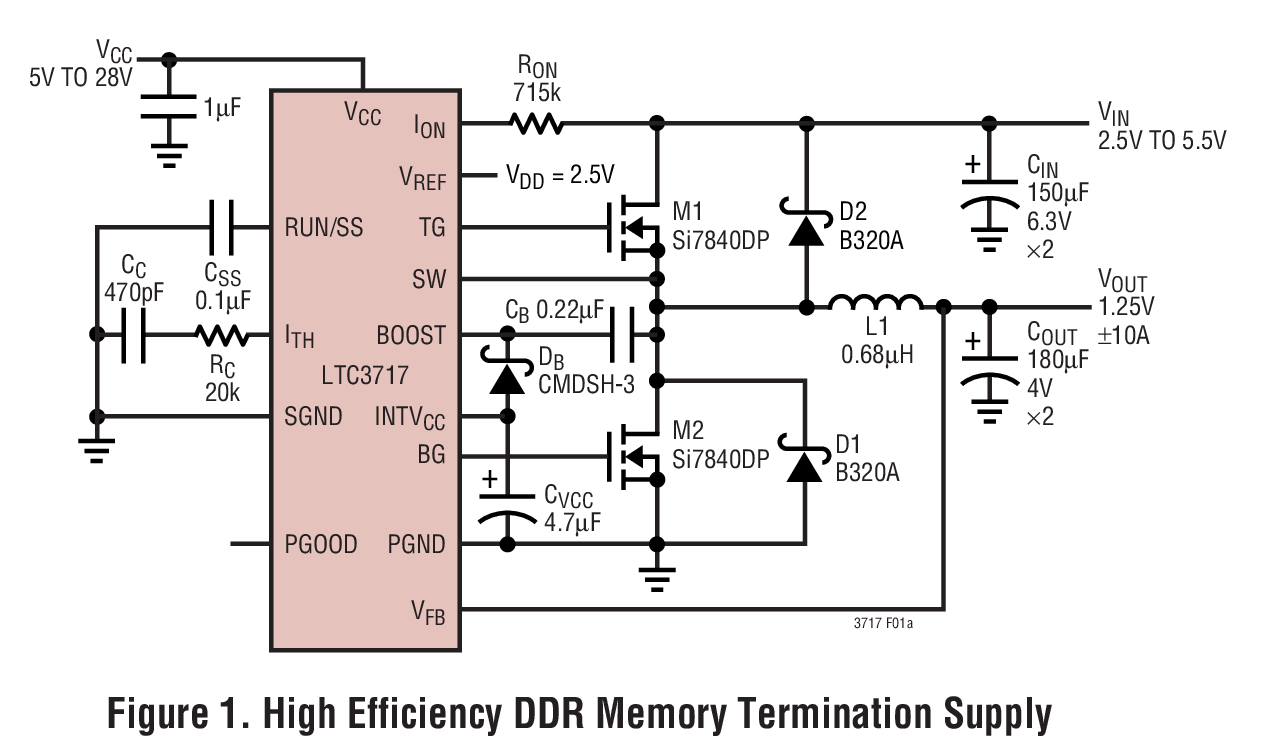

The LTC3717 is a synchronous step-down switching regulator controller for double data rate (DDR) and Quad Data Rate^™ (QDR^™) memory termination. The controller uses a valley current control architecture to deliver very low duty cycles without requiring a sense resistor. Operating frequency is selected by an external resistor and is compensated for variations in V_IN.

Forced continuous operation reduces noise and RF interference. Output voltage is internally set to half of V_REF, which is user programmable.

Fault protection is provided by an output overvoltage comparator and optional short-circuit shutdown timer. Soft-start capability for supply sequencing is accomplished using an external timing capacitor. The regulator current limit level is symmetrical and user programmable. Wide supply range allows operation from 4V to 36V at the V_CC input.


	Von Pin	Package
LTC3717	No	SSOP-16
LTC3717-1	Yes	QFN-32

Applications

Bus Termination: DDR and QDR Memory, SSTL, HSTL, ...
Notebook Computers, Desktop Servers
Tracking Power Supply

Part Models: 2
1ku List Price: Starting From $3.54
