LTC3730

PRODUCTION

3-Phase, 5-Bit Intel Mobile VID, 600kHz, Synchronous Buck Controller

Data Sheet
Part Models
2
1ku List Price
Starting From $5.24
Viewing:

Part Details

  • 3-Phase Current Mode Controller with Onboard MOSFET Drivers
  • ±5% Output Current Match Optimizes Thermal Performance and Size of Inductors and MOSFETs
  • Operational Amplifier Accomodates Mode Switching
  • ±1% VREF Accuracy Over Temperature
  • Reduced Input and Output Capacitance
  • Reduced Power Supply Induced Noise
  • VOUT Programmable from 0.6V to 1.75V (IMVP III)
  • ±10% Power Good Output Indicator
  • 250kHz to 600kHz Per Phase, PLL, Fixed Frequency
  • PWM, Stage Shedding™ or Burst Mode® Operation
  • OPTI-LOOP® Compensation Minimizes COUT
  • Adjustable Soft-Start Current Ramping
  • 4V, VIN,Undervoltage RUN/SS Reset/Reattempt Circuit
  • Short-Circuit Shutdown Timer with Defeat Option
  • Overvoltage Soft Latch

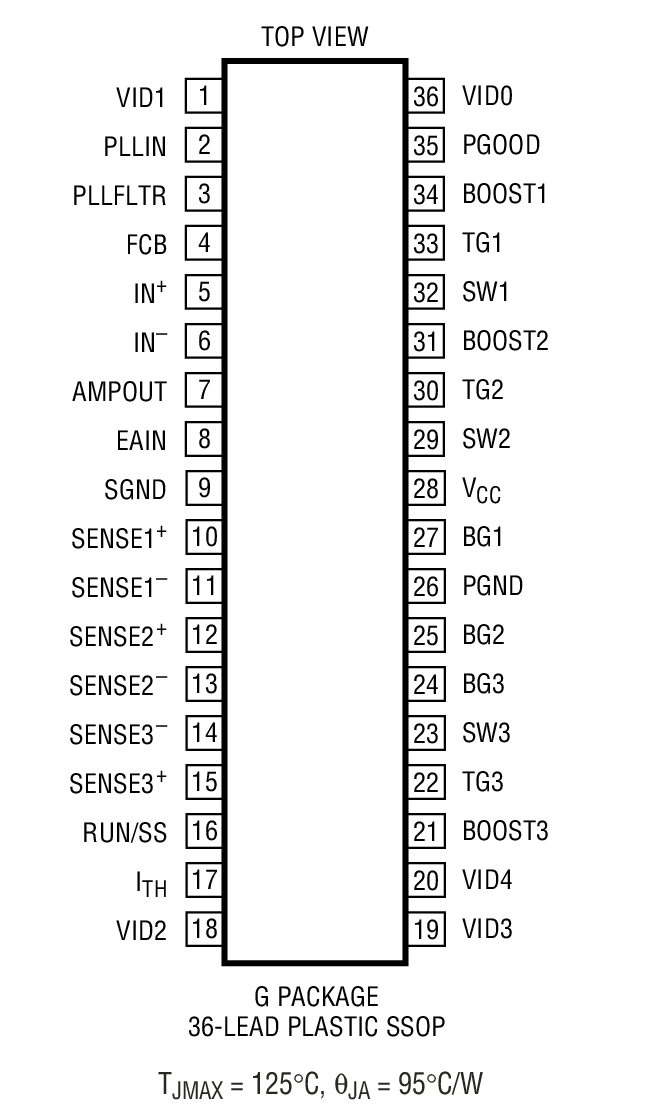

  • Small 36-Lead Narrow (0.209”) SSOP Package
LTC3730
3-Phase, 5-Bit Intel Mobile VID, 600kHz, Synchronous Buck Controller

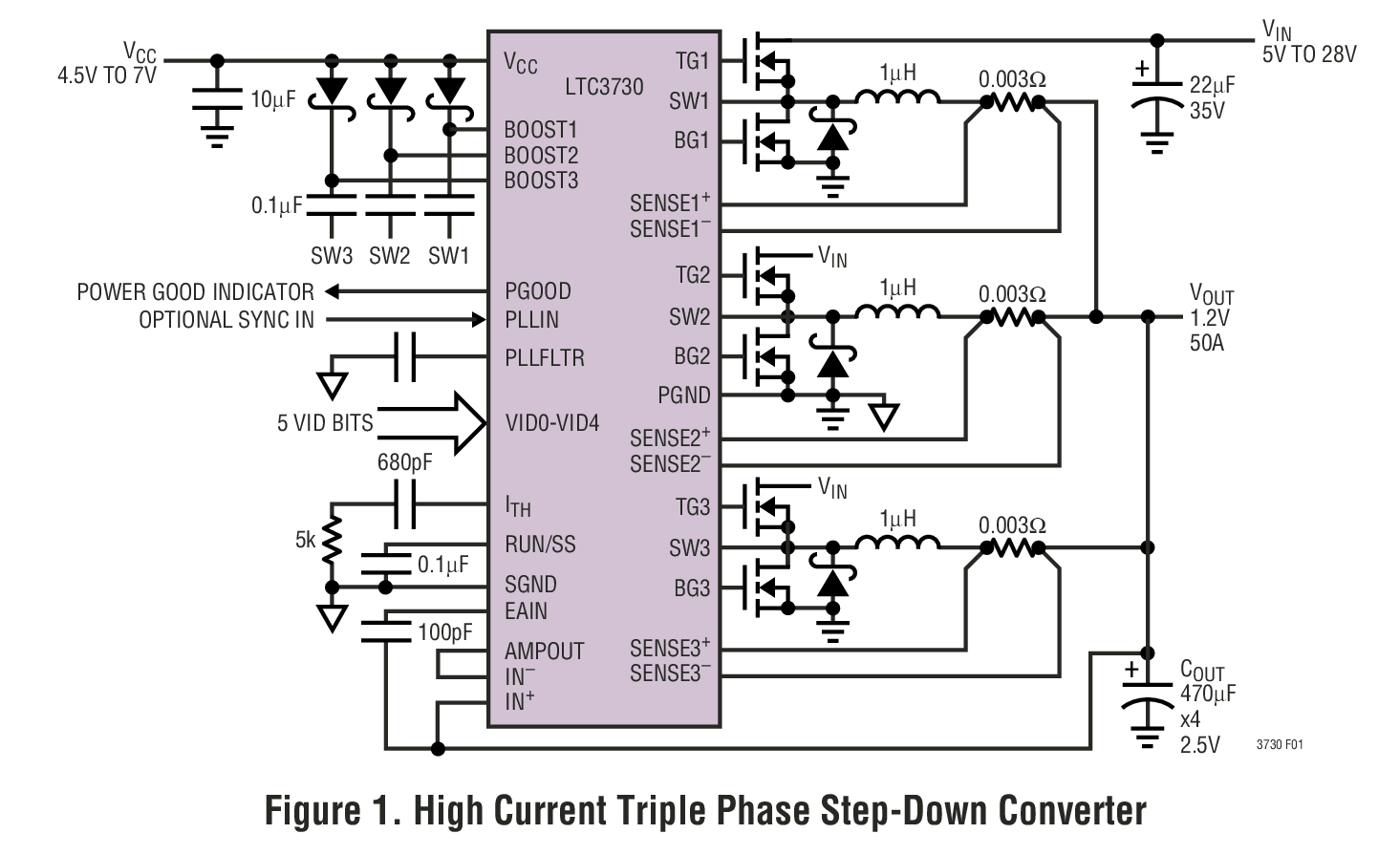

Figure 1. High Current Triple Phase Step-Down Converter Product Package 1
