LTC3850-2

PRODUCTION

Dual, 2-Phase Synchronous Step-Down Switching Controller

Part Models: 4
1ku List Price: Starting From $3.07

Viewing:

Part Details

Dual, 180° Phased Controllers Reduce Required Input Capacitance and Power Supply Induced Noise

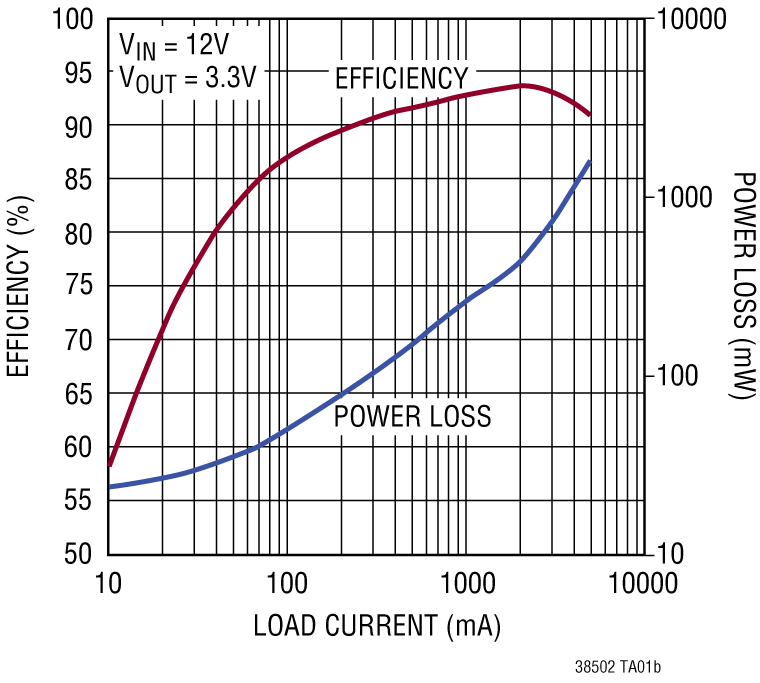

High Efficiency: Up to 95%
R_SENSE or DCR Current Sensing
±1% 0.8V Output Voltage Accuracy
Phase-Lockable Fixed Frequency 250kHz to 780kHz
Supports Pre-Biased Output

Dual N-Channel MOSFET Synchronous Drive
Wide V_IN Range: 4V to 30V Operation
Adjustable Soft-Start Current Ramping or Tracking
Foldback Output Current Limiting
Output Overvoltage Protection
Power Good Output Voltage Monitor

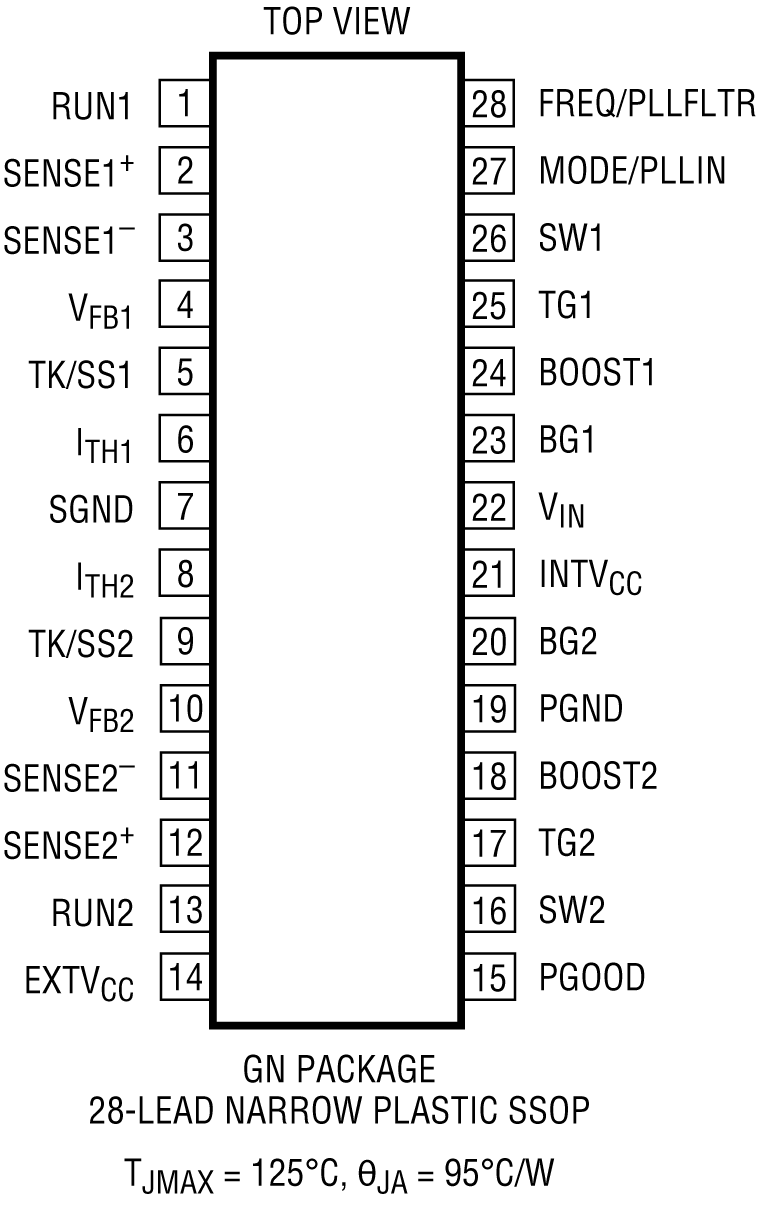

28-Pin Narrow SSOP Package
AEC-Q100 Qualified for Automotive Applications

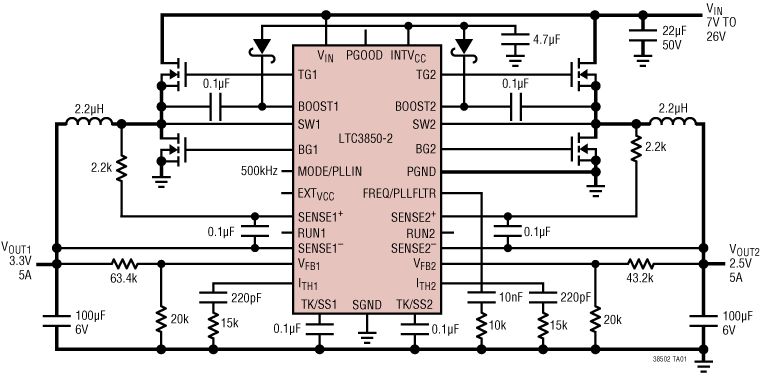

The LTC3850-2 is a high performance dual synchronous step-down switching regulator controller that drives all N-channel power MOSFET stages. A constant-frequency current mode architecture allows a phase-lockable frequency of up to 780kHz. Power loss and supply noise are minimized by operating the two controller output stages out of phase.

OPTI-LOOP^® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3850-2 features a precision 0.8V reference and a power good output indicator. A wide 4V to 30V input supply range encompasses most battery chemistries and intermediate bus voltages.

Independent TK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The MODE/PLLIN pin selects among Burst Mode^® operation, pulse-skipping mode, or continuous inductor current mode and allows the IC to be synchronized to an external clock.

The LTC3850-2 is identical to the LTC3850-1, except they have different pin assignments.


	Features
LTC3850	SSOP-28 and QFN-28 Packages
LTC3850-1	ILIM function replaced with an EXTVCC function, SSOP-28 package only
LTC3850-2	The LTC3850-2 is identical to the LTC3850-1 SSOP-28, except they have different pin-outs

APPLICATIONS

Notebook and Palmtop Computers
Portable Instruments
Battery-Operated Digital Devices
DC Power Distribution Systems
