LTC4008

PRODUCTION

4A, High Efficiency, Multi-Chemistry Battery Charger

Data Sheet (Rev. C) Product Selection Table

Part Models: 4
1ku List Price: Starting From $4.92

Viewing:

Part Details

General Purpose Charger Controller
High Conversion Efficiency: Up to 96%
Output Currents Exceeding 4A
±0.8% Voltage Accuracy
AC Adapter Current Limiting Maximizes Charge Rate
Thermistor Input for Temperature Qualified Charging
Wide Input Voltage Range: 6V to 28V
Wide Output Voltage: 3V to 28V
0.5V Dropout Voltage; Maximum Duty Cycle: 98%
Programmable Charge Current: ±4% Accuracy
Indicator Outputs for Charging, C/10 Current Detection, AC Adapter Present, Input Current Limiting and Faults
Charging Current Monitor Output

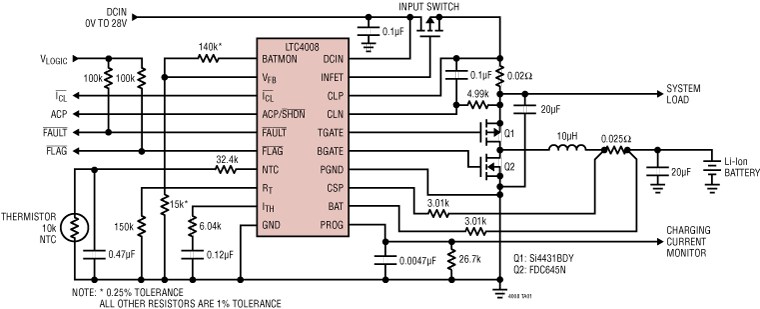

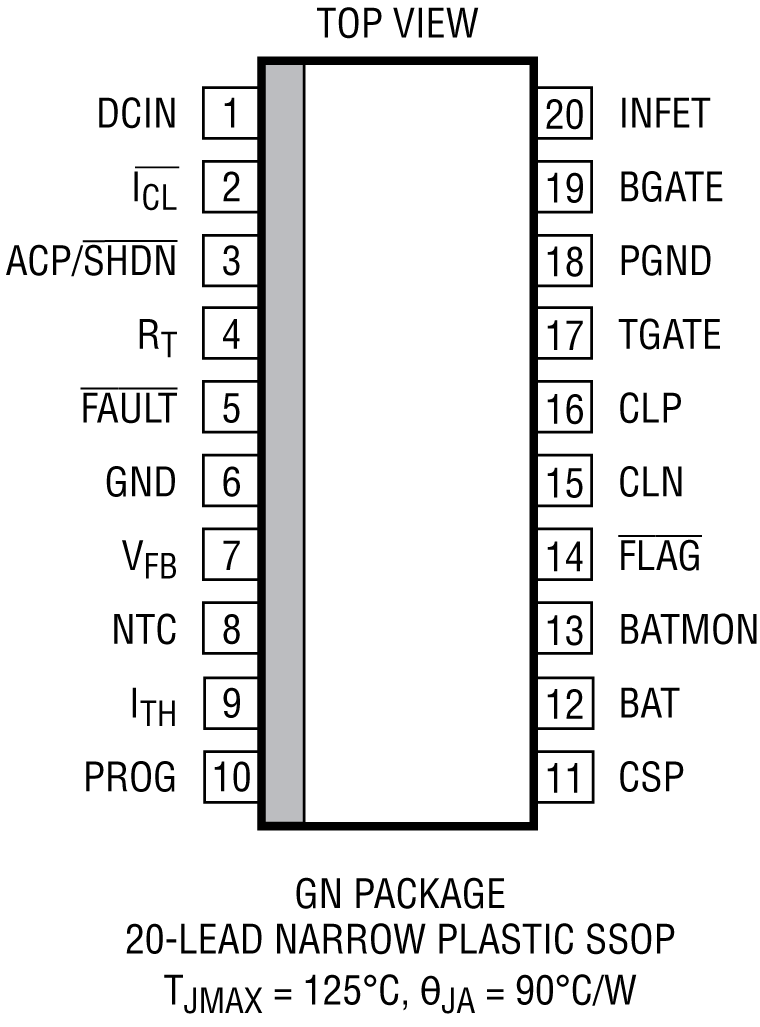

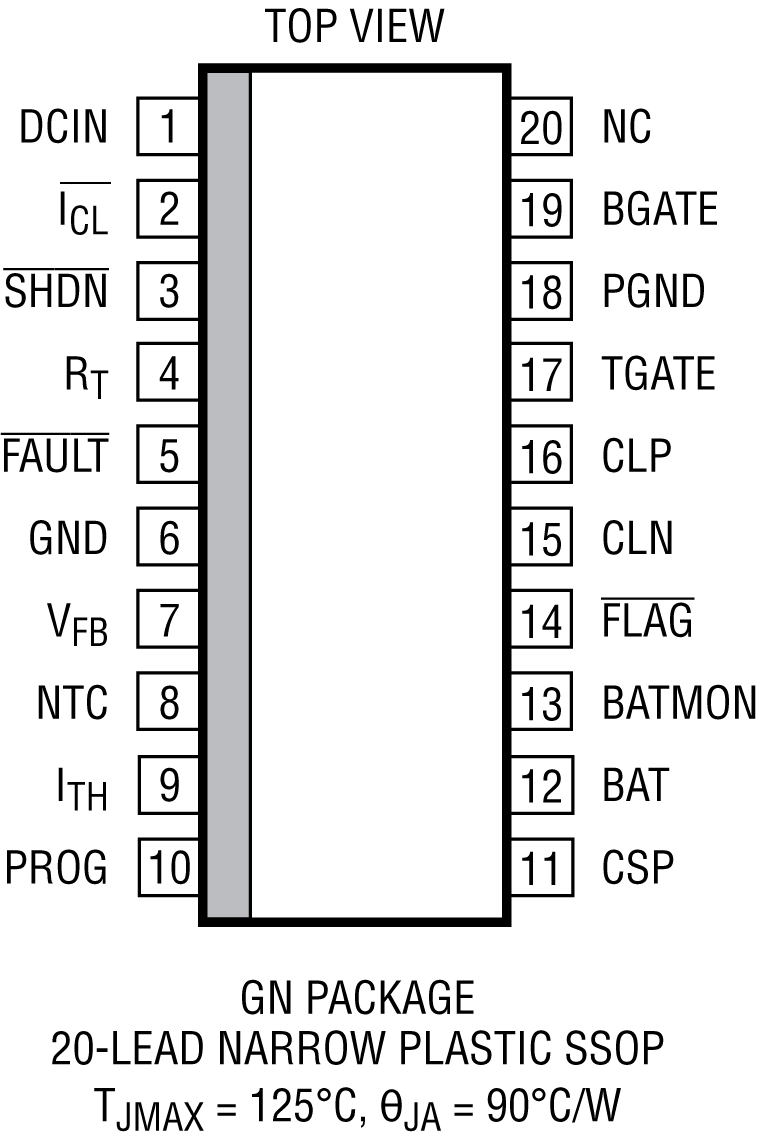

Available in a 20-Pin Narrow SSOP Package

Part Models: 4
1ku List Price: Starting From $4.92

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4008EGN#PBF	20-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4008EGN#TRPBF	20-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4008EGN-1#PBF	20-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4008EGN-1#TRPBF	20-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 10, 2022 - 22_0177 Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL
		PCN22_0177_Form Material_Report Delta Qualification Matrix
LTC4008EGN#PBF	PRODUCTION
LTC4008EGN#TRPBF	PRODUCTION
LTC4008EGN-1#PBF	PRODUCTION
LTC4008EGN-1#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
