LTC4411

RECOMMENDED FOR NEW DESIGNS

2.6A Low Loss Ideal Diode in ThinSOT™

Data Sheet
Part Models
2
1ku List Price
Starting From $2.18
Viewing:

Part Details

  • Low Loss Replacement for PowerPath™ OR'ing Diodes
  • Small Regulated Forward Voltage (28mV)
  • 2.6A Maximum Forward Current
  • Low Forward ON Resistance (140mΩ Max)
  • Low Reverse Leakage Current (<1µA)
  • 2.6V to 5.5V Operating Range
  • Internal Current Limit Protection
  • Internal Thermal Protection
  • No External Active Components
  • Pin-Compatible Monolithic Replacement for the LTC4412
  • Low Quiescent Current (40µA)
  • Low-Profile (1mm) 5-lead SOT-23 Package
LTC4411
2.6A Low Loss Ideal Diode in ThinSOT™

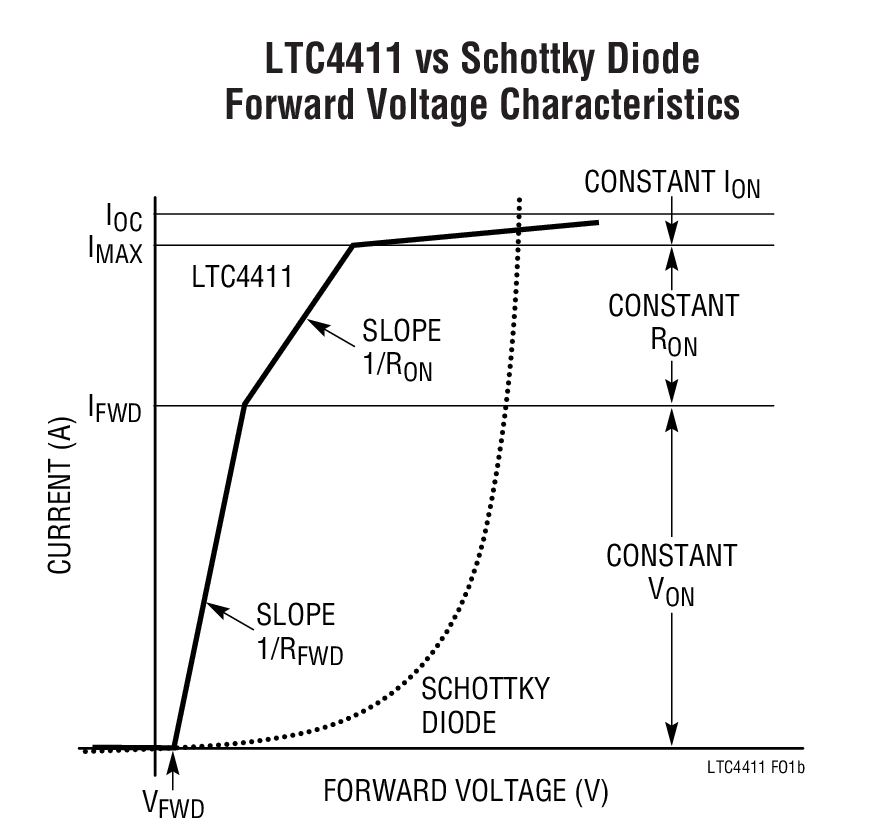

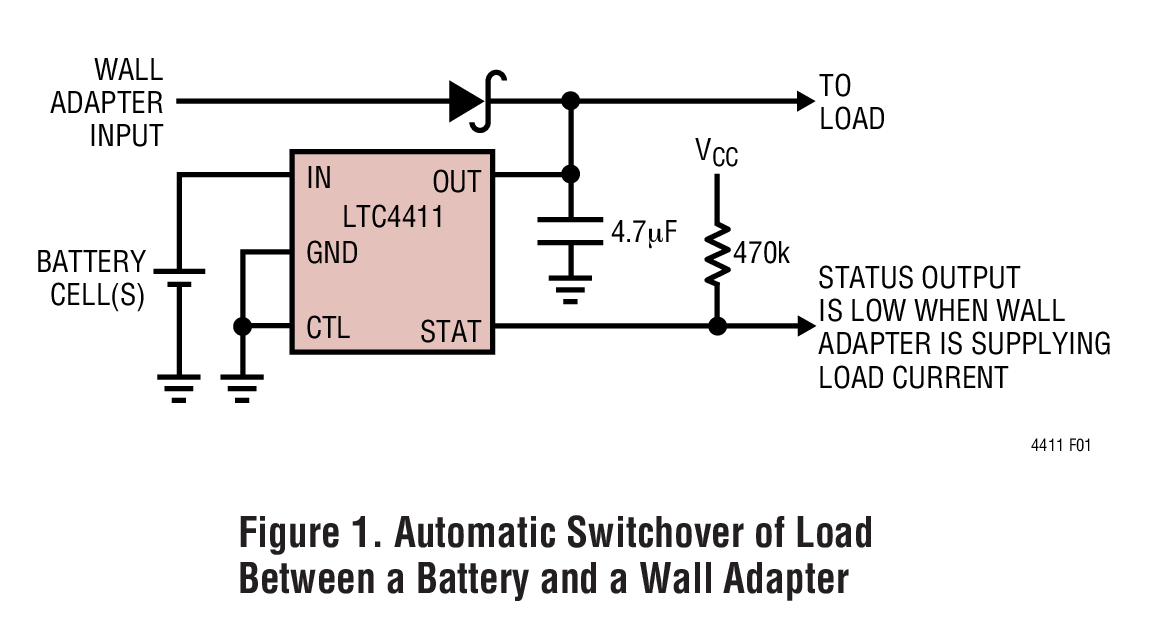

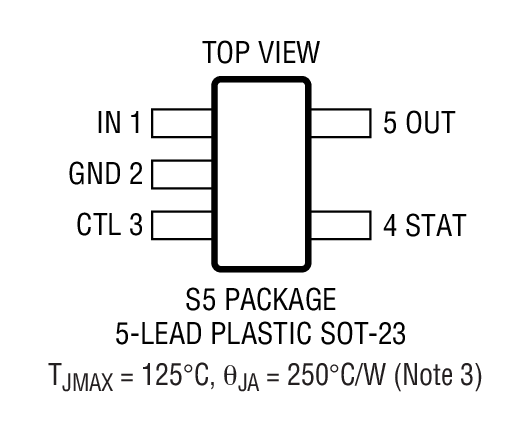

Figure 1. Automatic Switchover of Load Between a Battery and a Wall Adapter LTC4411 vs Schottky Diode Forward Voltage Characteristics Product Package 1
