LTC4440

PRODUCTION

High Speed, High Voltage High Side Gate Driver

Part Models: 8
1ku List Price: Starting From $2.34

Viewing:

Part Details

Wide Operating V_IN Range: Up to 80V
Rugged Architecture Tolerant of 100V V_INTransients
Powerful 1.5Ω Driver Pull-Down
Powerful 2.4A Peak Current Driver Pull-Up

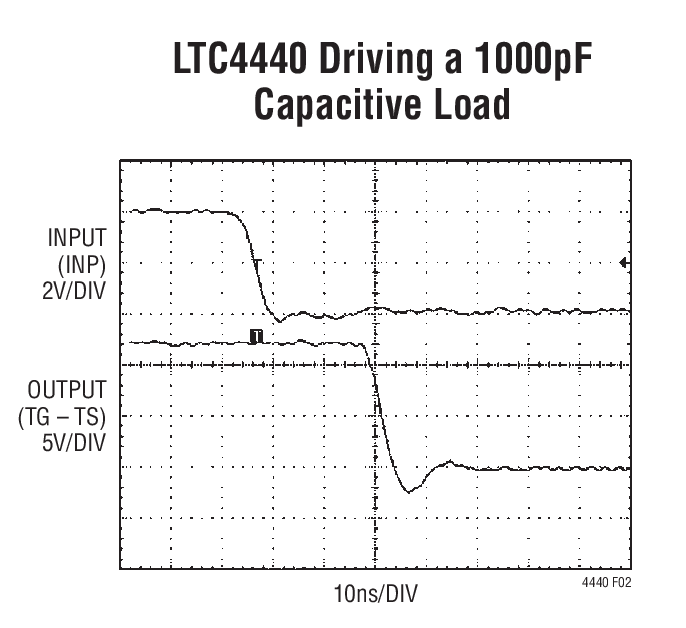

7ns Fall Time Driving 1000pF Load
10ns Rise Time Driving 1000pF Load
Drives Standard Threshold MOSFETs
TTL/CMOS Compatible Inputs with Hysteresis
Input Thresholds are Independent of Supply
Undervoltage Lockout
Low Profile (1mm) SOT-23 (ThinSOT)^™ and Thermally Enhanced 8-Pin MSOP Packages

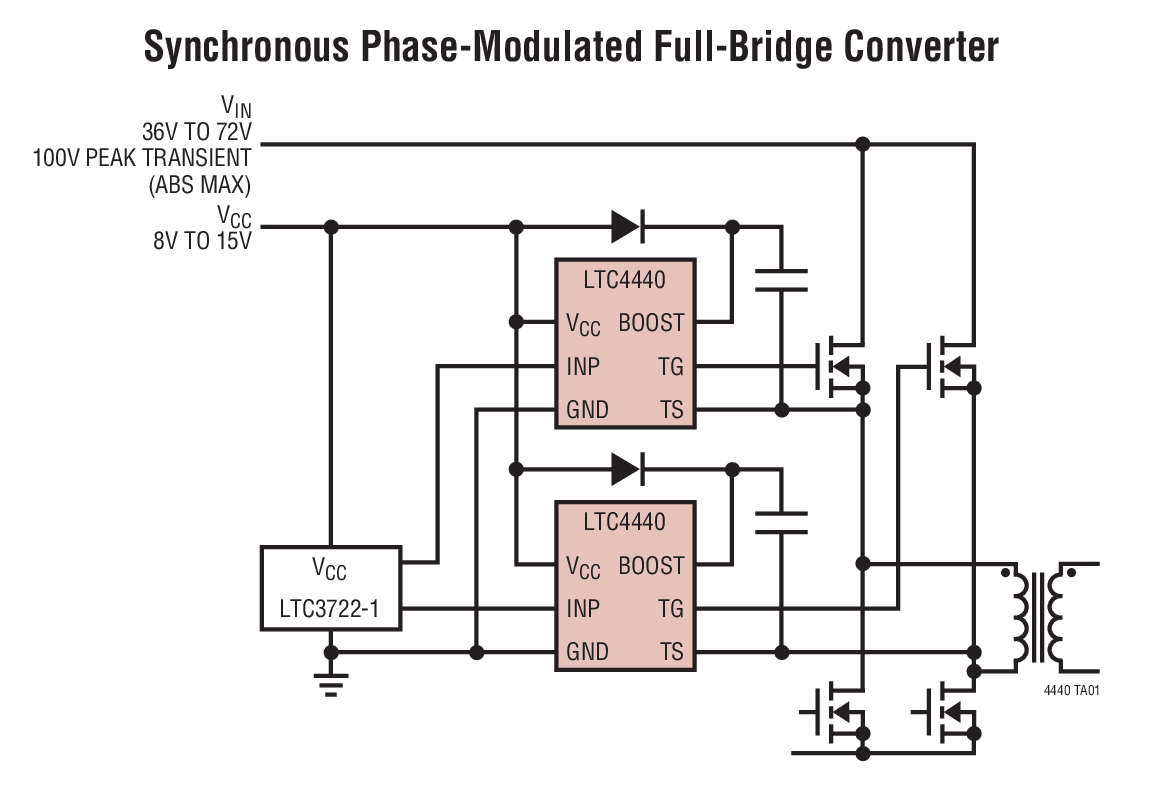

The LTC4440 is a high frequency high side N-channel MOSFET gate driver that is designed to operate in applications with V_IN voltages up to 80V. The LTC4440 can also withstand and continue to function during 100V V_IN transients. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitances. The LTC4440’s pull-up has a peak output current of 2.4A and its pull-down has an output impedance of 1.5Ω.

The LTC4440 features supply independent TTL/CMOS compatible input thresholds with 350mV of hysteresis. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 115V above ground.

The LTC4440 contains both high side and low side under-voltage lockout circuits that disable the external MOSFET when activated.

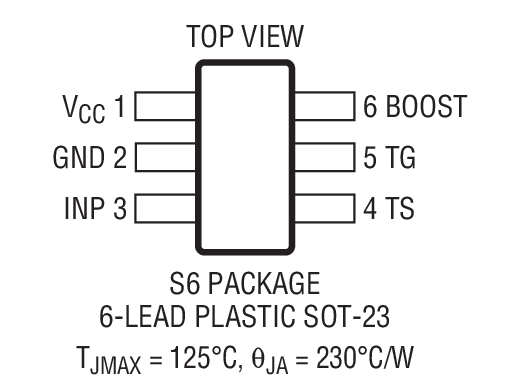

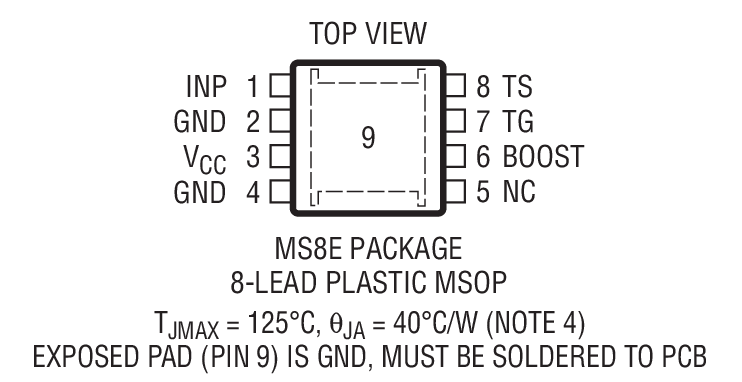

The LTC4440 is available in the low profile (1mm) SOT-23 and thermally enhanced 8-lead MSOP packages.


Parameter	LTC4440	LTC4440-5	LTC4440A-5
Max Operating TS	80V	60V	80V
Absolute Max TS	100V	80V	100V
MOSFET Gate Drive	8V to 15V	4V to 15V	4V to 15V
V_CC UV⁺	6.3V	3.2V	3.2V
V_CC UV^-	6.0V	3.04V	3.04V

Applications

Telecommunications Power Systems
Distributed Power Architectures
Server Power Supplies
High Density Power Modules

Part Models: 8
1ku List Price: Starting From $2.34

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4440EMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440EMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440ES6#TRMPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440ES6#TRPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440IMS8E#PBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440IMS8E#TRPBF	8-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440IS6#TRMPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4440IS6#TRPBF	6-Lead TSOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4440EMS8E#PBF	PRODUCTION
LTC4440EMS8E#TRPBF	PRODUCTION
LTC4440IMS8E#PBF	PRODUCTION
LTC4440IMS8E#TRPBF	PRODUCTION
Apr 18, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4440EMS8E#PBF	PRODUCTION
LTC4440EMS8E#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC4440EMS8E#PBF	PRODUCTION
LTC4440EMS8E#TRPBF	PRODUCTION
LTC4440IMS8E#PBF	PRODUCTION
LTC4440IMS8E#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 3

Models for the following parts are available in LTspice:

LTC4440
LTC4440-5
LTC4440A-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
