LTC6079

PRODUCTION

Micropower Precision, Quad CMOS Rail-to-Rail Input/Output Amplifiers

Data Sheet

Part Models: 10
1ku List Price: Starting From $3.05

Viewing:

Part Details

Maximum Offset Voltage of 25μV (25°C)
Maximum Offset Drift of 0.7μV/°C
Maximum Input Bias:
- 1pA (25°C)
- 50pA (≤85°C)
Micropower: 54μA per Amp
95dB CMRR (Min)
100dB PSRR (Min)
Input Noise Voltage: 16nV/√Hz
Rail-to-Rail Inputs and Outputs
2.7V to 5.5V Operation Voltage

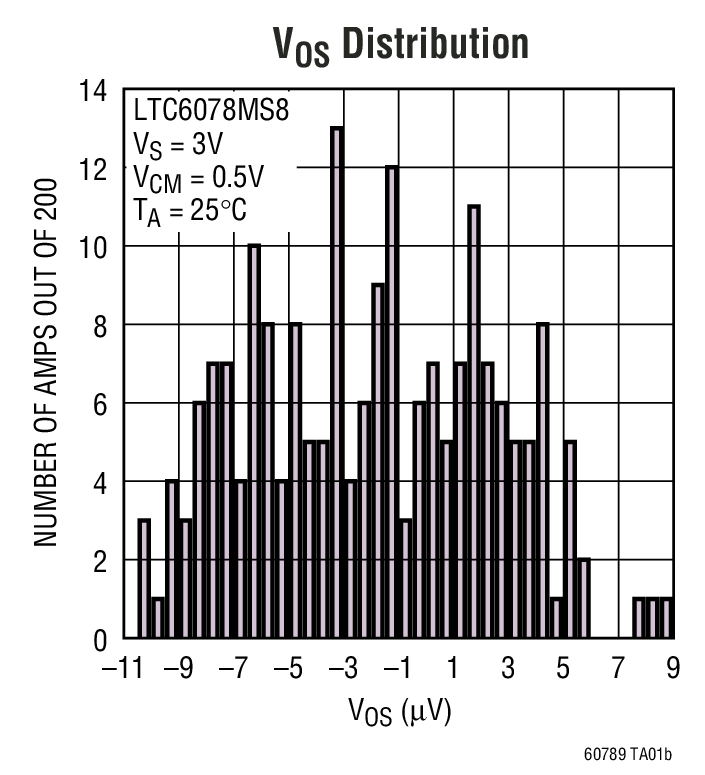

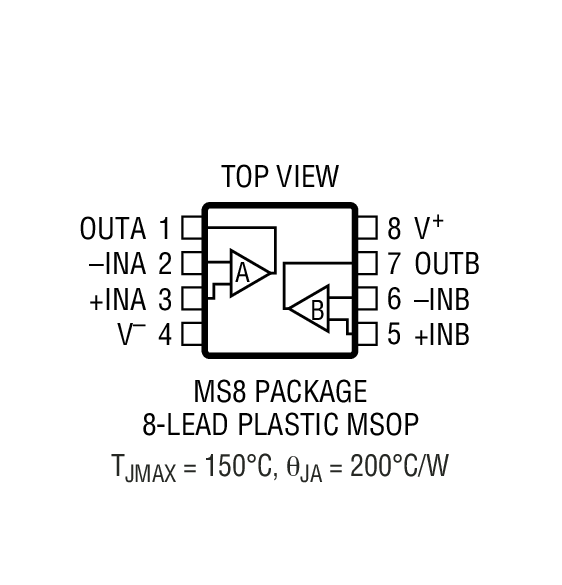

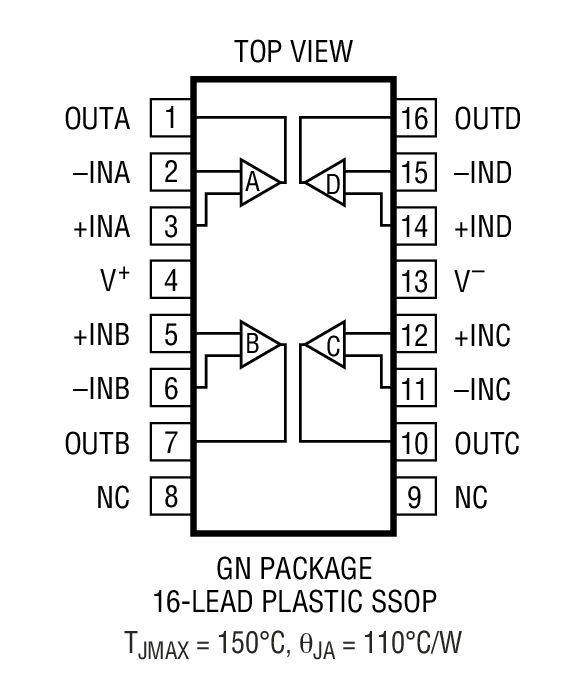

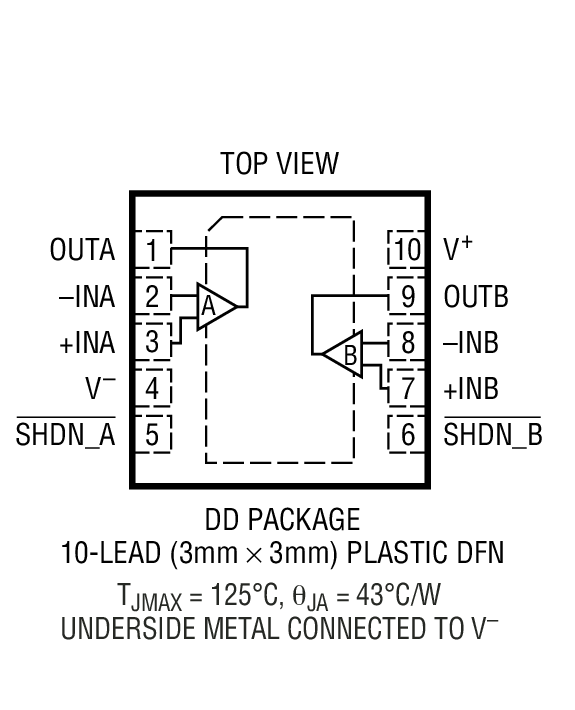

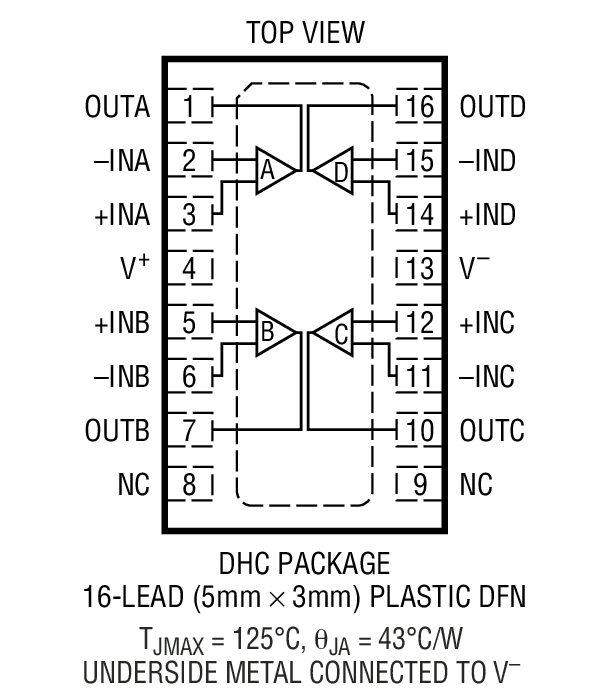

LTC6078 Available in 8-Lead MSOP and 10-Lead DFN Packages; LTC6079 Available in 16-Lead SSOP and DFN Packages

Part Models: 10
1ku List Price: Starting From $3.05

Documentation
