LTC7061

RECOMMENDED FOR NEW DESIGNS

100V Half Bridge Driver with Floating Grounds and Adjustable Dead-Time

Data Sheet (Rev. 0) Product Selection Table

Part Models: 8
1ku List Price: Starting From $1.22

Viewing:

Part Details

Unique Symmetric Floating Gate Driver Architecture
High Noise Immunity,Tolerates ±10V Ground Difference
100V Maximum Input Voltage Independent of IC Supply Voltage V_CC
5V to 14V V_CC Operating Voltage
4V to 14V Gate Driver Voltage
0.8Ω Pull-Down, 1.5Ω Pull-Up for Fast Turn-On/Off

Adaptive Shoot-Through Protection
Adjustable Dead-Time
TTL/CMOS Compatible Input
V_CC UVLO/OVLO and Floating Supplies UVLO
Drives Dual N-Channel MOSFETs
Open-Drain Fault Indicator (VCC UVLO/OVLO, Gate Driver UVLO and Thermal Shutdown)

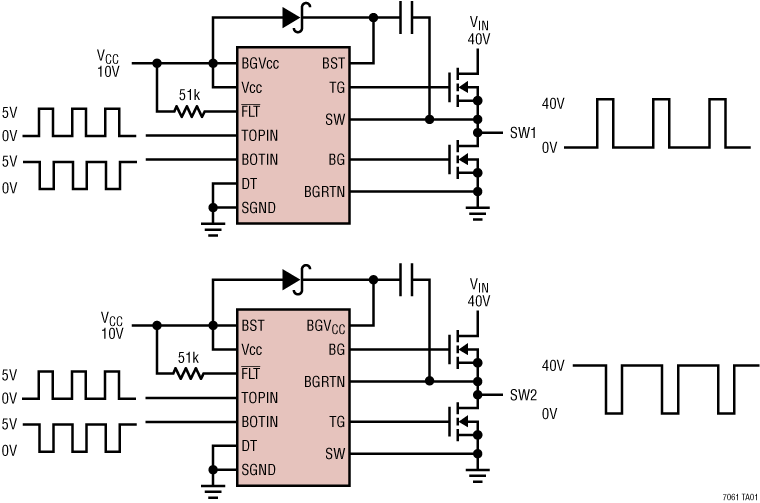

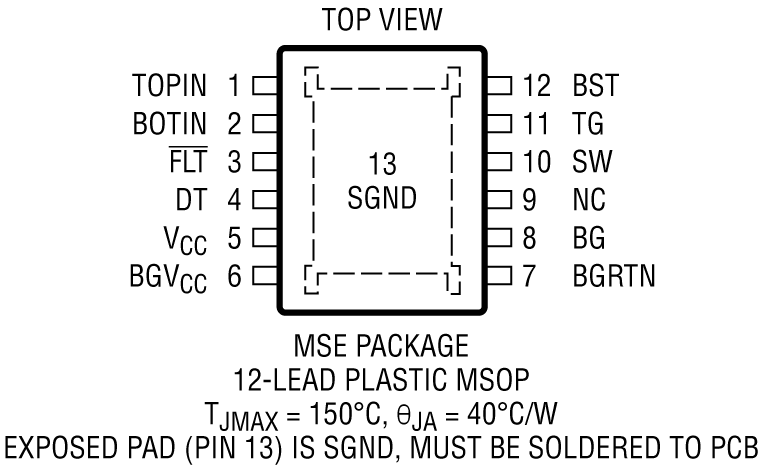

Available in Thermally Enhanced 12-LEAD MSOP
AEC-Q100 Automotive Qualification in Progress

Part Models: 8
1ku List Price: Starting From $1.22

Documentation

Data Sheet 1

LTC7061: 100V Half Bridge Driver with Floating Grounds and Adjustable Dead-Time Data Sheet (Rev.0) 02/26/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC7061EMSE#PBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061EMSE#TRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061HMSE#WPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061HMSE#WTRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061IMSE#WPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061IMSE#WTRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061JMSE#WPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC7061JMSE#WTRPBF	12-Lead MSOP w/ EP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC7061HMSE#WPBF
LTC7061HMSE#WTRPBF
LTC7061JMSE#WPBF
LTC7061JMSE#WTRPBF

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 1

LTC7061 - Power Control

Models for the following parts are available in LTspice:

LTC7061

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
