LTM4601AHV

PRODUCTION

12A, 28V_IN DC/DC µModule Regualtor with PLL, Output Tracking and Margining

Part Models: 8
1ku List Price: Starting From $24.01

Viewing:

Part Details

Complete Switch Mode Power Supply
Wide Input Voltage Range: 4.5V to 28V
12A DC Typical, 14A Peak Output Current
0.6V to 5V Output Voltage
Output Voltage Tracking and Margining
Redundant Mounting Pads for Enhanced Solder-Joint Strength
Parallel Multiple μModule^® Regulators for Current Sharing
Differential Remote Sensing for Precision Regulation
PLL Frequency Synchronization
±1.5% Total DC Error
Current Foldback Protection (Disabled at Start-Up)
SnPb or RoHS Compliant Finish
–55°C to 125°C Operating Temperature Range (LTM4601AHVMPV)
Ultrafast^™ Transient Response

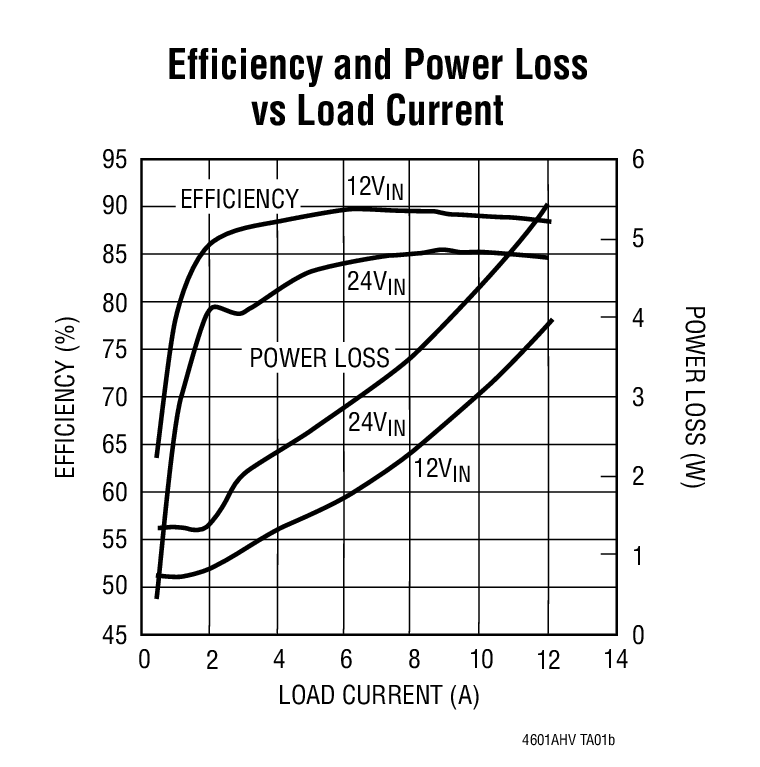

Up to 95% Efficiency at 5V_IN, 3.3V_OUT
Programmable Soft-Start
Output Overvoltage Protection

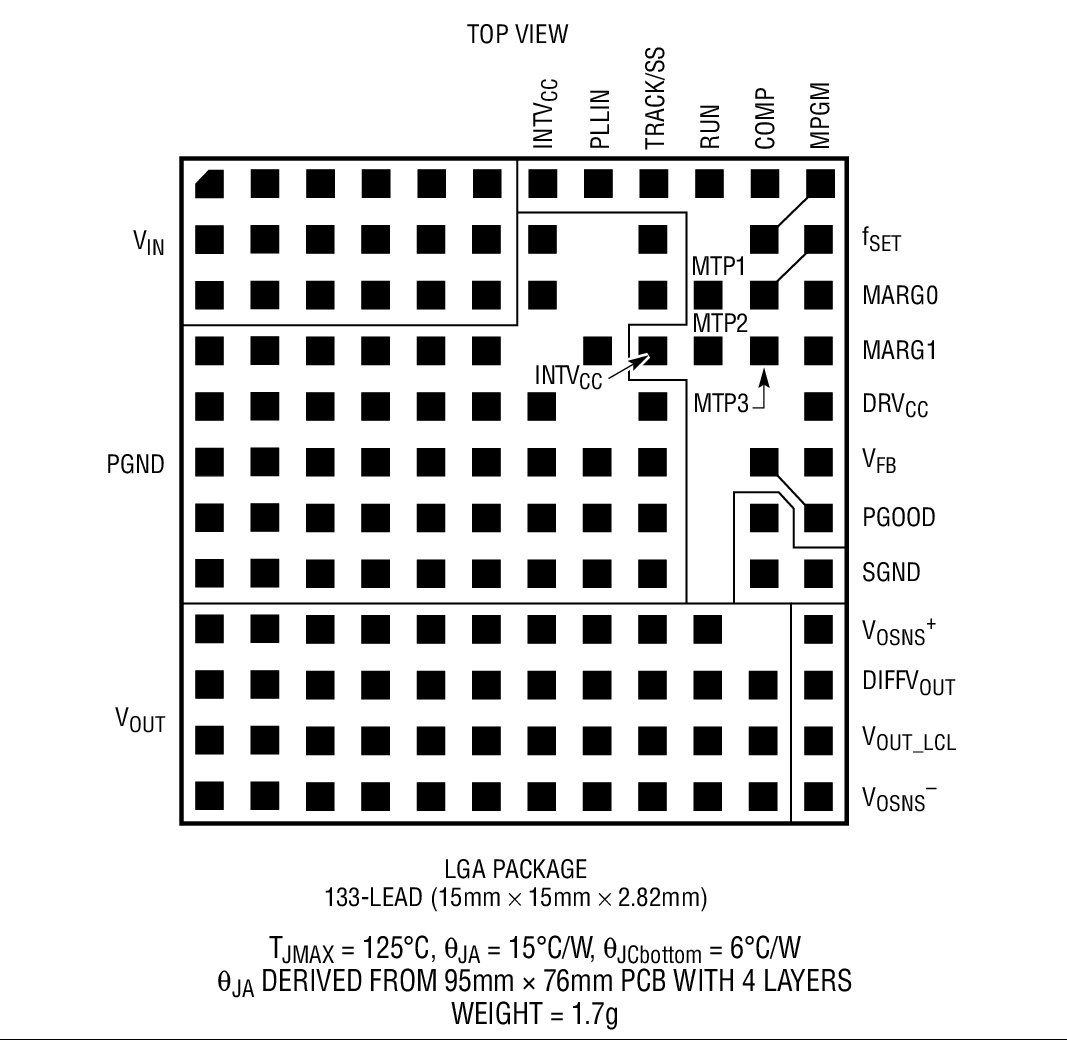

Enhanced (15mm × 15mm × 2.82mm) Surface Mount

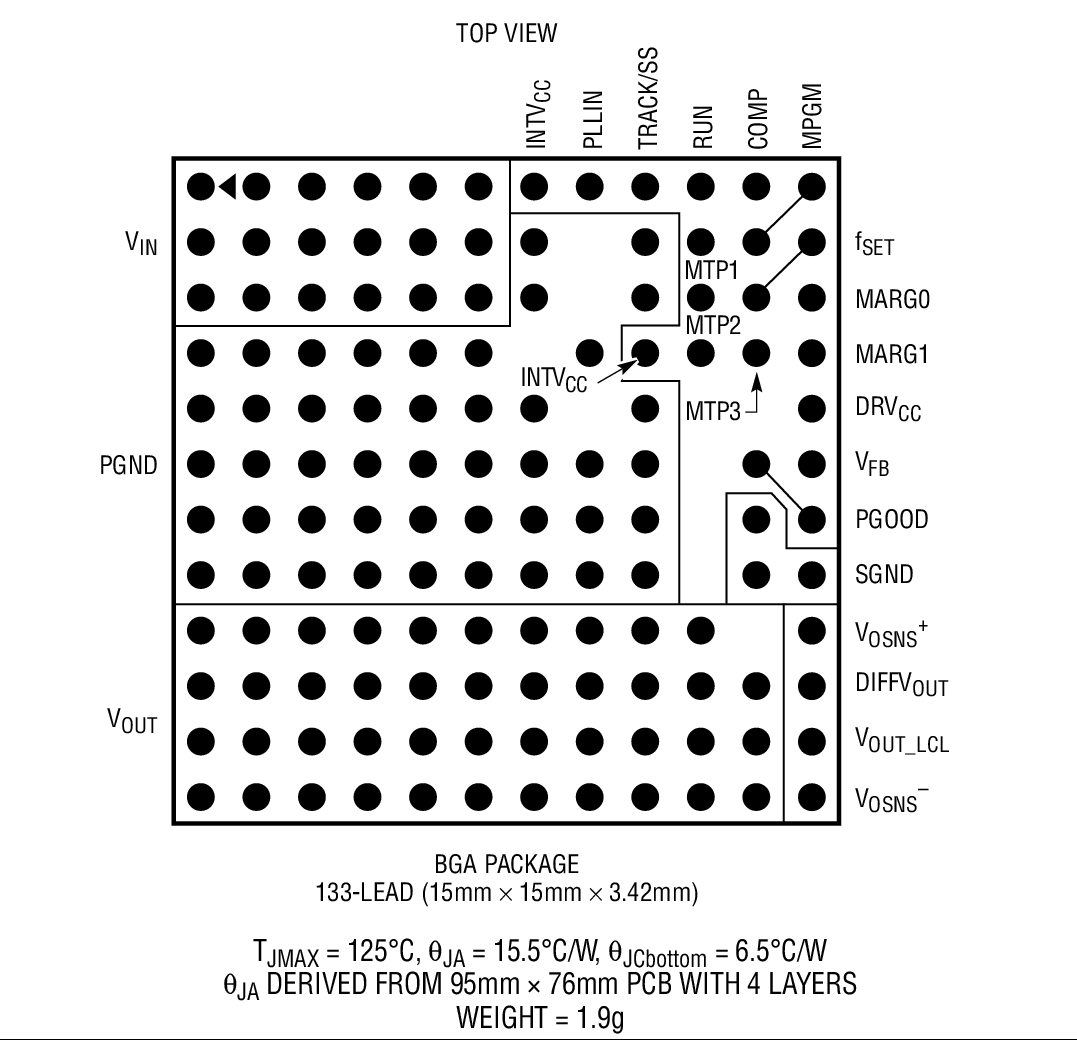

LGA and (15mm × 15mm × 3.42mm) BGA Packages

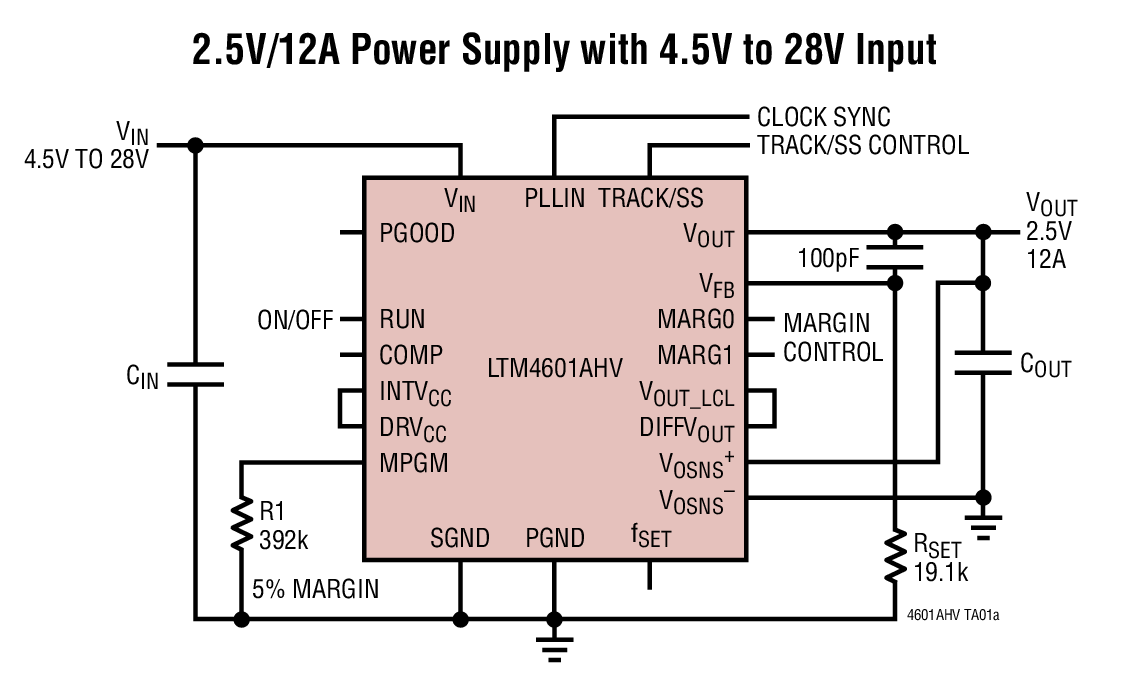

The LTM4601AHV is a complete 12A step-down switch mode DC/DC power supply with onboard switching controller, MOSFETs, inductor and all support components. The μModule regulator is housed in a small surface mount 15mm × 15mm × 2.82mm LGA or 15mm × 15mm × 3.42mm BGA package. The LTM4601AHV LGA and BGA packages are designed with redundant mounting pads to enhance solder-joint strength for extended temperature cycling endurance. Operating over an input voltage range of 4.5V to 28V, the LTM4601AHV supports an output voltage range of 0.6V to 5V as well as output voltage tracking and margining. The high efficiency design delivers 12A continuous current (14A peak). Only bulk input and output capacitors are needed to complete the design.

The low profile and light weight package easily mounts in unused space on the back side of PC boards for high density point of load regulation. The μModule regulator can be synchronized with an external clock for reducing undesirable frequency harmonics and allows PolyPhase^® operation for high load currents.

An onboard differential remote sense amplifier can be used to accurately regulate an output voltage independent of load current. The LTM4601AHV is available with SnPb or RoHS compliant terminal finish.


	LTM4601	LTM4601A	LTM4601HV	LTM4601AHV
Vin Max	20V	20V	28V	28V
On Board Remote Sense	LTM4601 Yes LTM4601-1 No	LTM4601A Yes LTM4601A-1 No	Yes	Yes
Back Side Pads	118	135 (for stronger solder joint stability)	118	135 (for stronger solder joint stability)

Applications

Telecom, Industrial and Networking Equipment
Military and Avionics Systems

Part Models: 8
1ku List Price: Starting From $24.01

Documentation

Data Sheet 1

LTM4601AHV: 12A, 28VIN DC/DC µModule (Power Module) Regualtor with PLL, Output Tracking and Margining Data Sheet 02/21/2014

User Guide 1

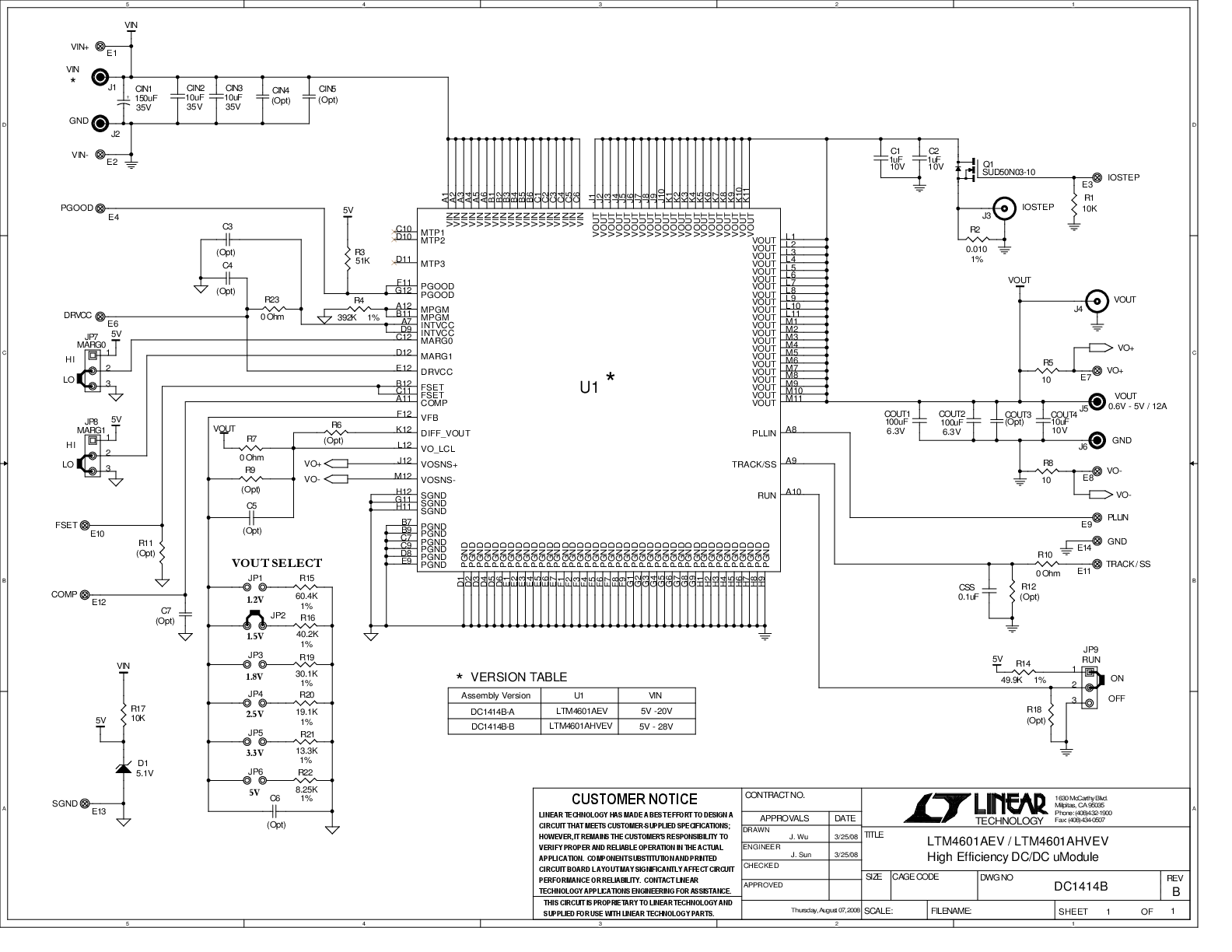

DC1414B - Demo Manual 03/29/2011

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM4601AHVEV#PBF	133-Lead LGA (15mm x 15mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVEY#PBF	133-Lead BGA (15mm x 15mm x 3.42mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVIV#PBF	133-Lead LGA (15mm x 15mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVIY	133-Lead BGA (15mm x 15mm x 3.42mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVIY#PBF	133-Lead BGA (15mm x 15mm x 3.42mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVMPV#PBF	133-Lead LGA (15mm x 15mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVMPY	133-Lead BGA (15mm x 15mm x 3.42mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4601AHVMPY#PBF	133-Lead BGA (15mm x 15mm x 3.42mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTM4601AHVEV#PBF	PRODUCTION
LTM4601AHVEY#PBF	PRODUCTION
LTM4601AHVIV#PBF	PRODUCTION
LTM4601AHVIY	PRODUCTION
LTM4601AHVIY#PBF	PRODUCTION
LTM4601AHVMPV#PBF	PRODUCTION
LTM4601AHVMPY	PRODUCTION
LTM4601AHVMPY#PBF	PRODUCTION
Feb 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM4601AHVEV#PBF	PRODUCTION
LTM4601AHVEY#PBF	PRODUCTION
LTM4601AHVIV#PBF	PRODUCTION
LTM4601AHVIY	PRODUCTION
LTM4601AHVIY#PBF	PRODUCTION
LTM4601AHVMPV#PBF	PRODUCTION
LTM4601AHVMPY	PRODUCTION
LTM4601AHVMPY#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
