LTM8031

PRODUCTION

Ultralow Noise EMC 36V, 1A DC/DC μModule (Power Module) Regulator

Data Sheet
Part Models
3
1ku List Price
Starting From $11.72
Viewing:

Part Details

  • Complete Step-Down Switch Mode Power Supply
  • Wide Input Voltage Range: 3.6V to 36V
  • 1A Output Current
  • 0.8V to 10V Output Voltage
  • Switching Frequency from 200kHz to 2.4MHz
  • EN55022 Class B Compliant with Margin
  • Current Mode Control
  • (e4) RoHS Compliant Package with Gold Pad Finish
  • Programmable Soft-Start
  • Pin Compatible with the LTM8032
  • Low Profile (9mm × 15mm × 2.82mm) Surface Mount LGA Package
LTM8031
Ultralow Noise EMC 36V, 1A DC/DC μModule (Power Module) Regulator

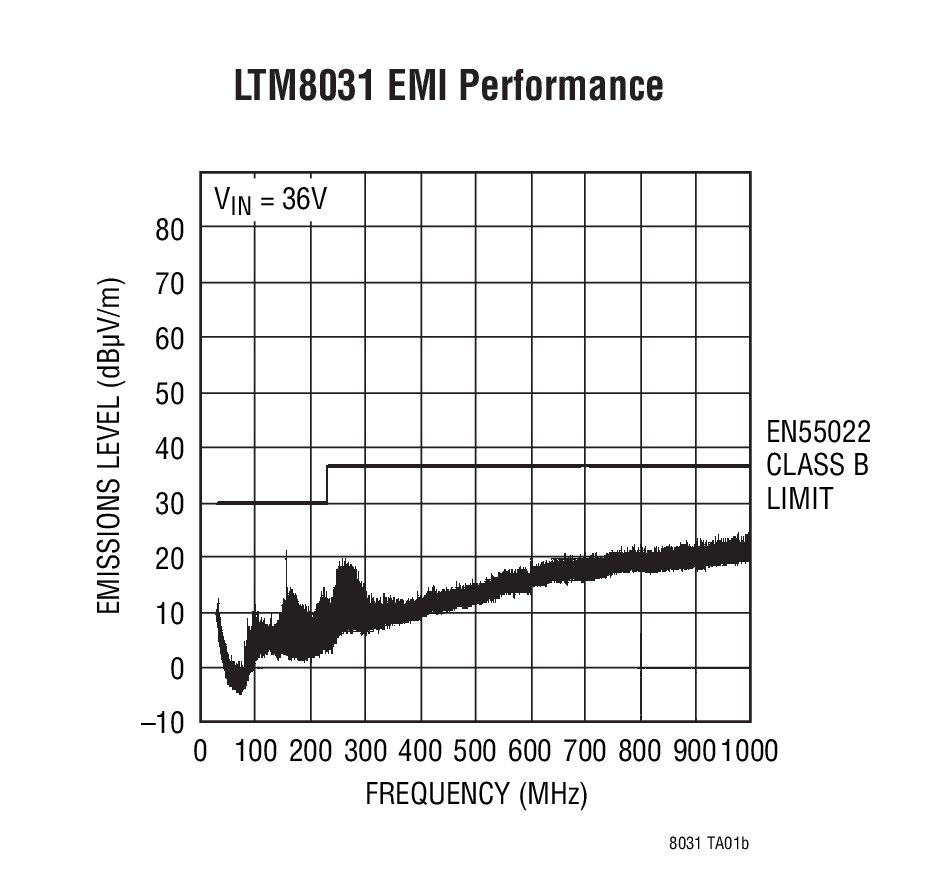

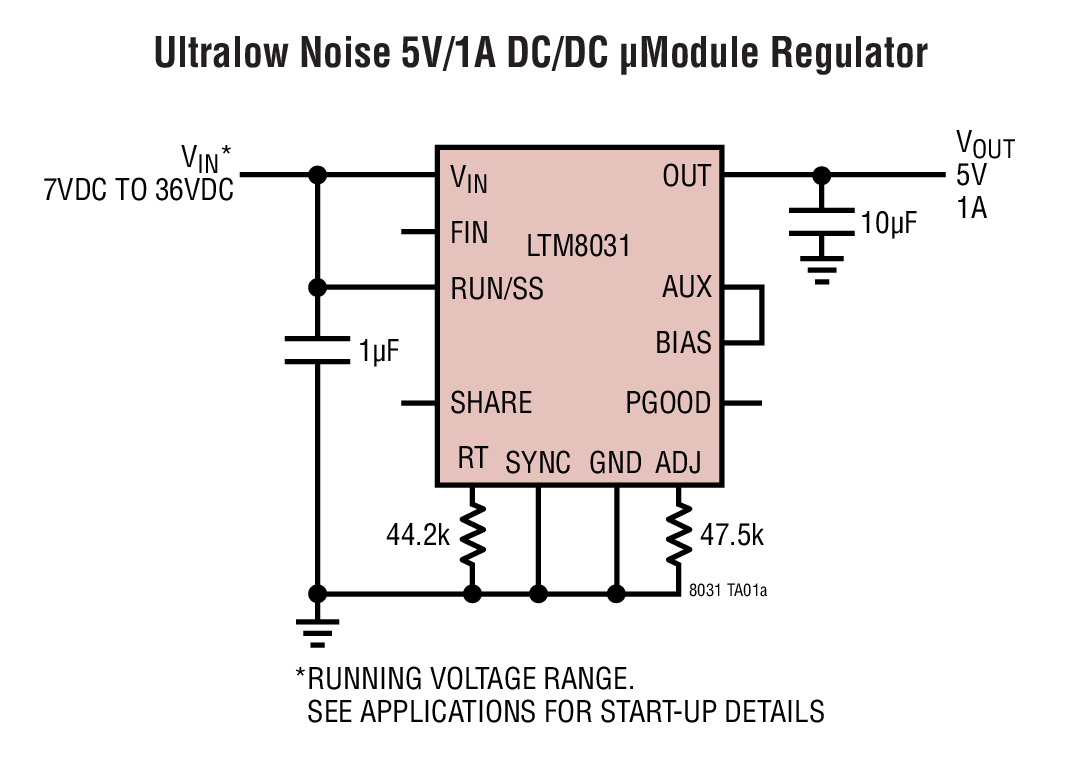

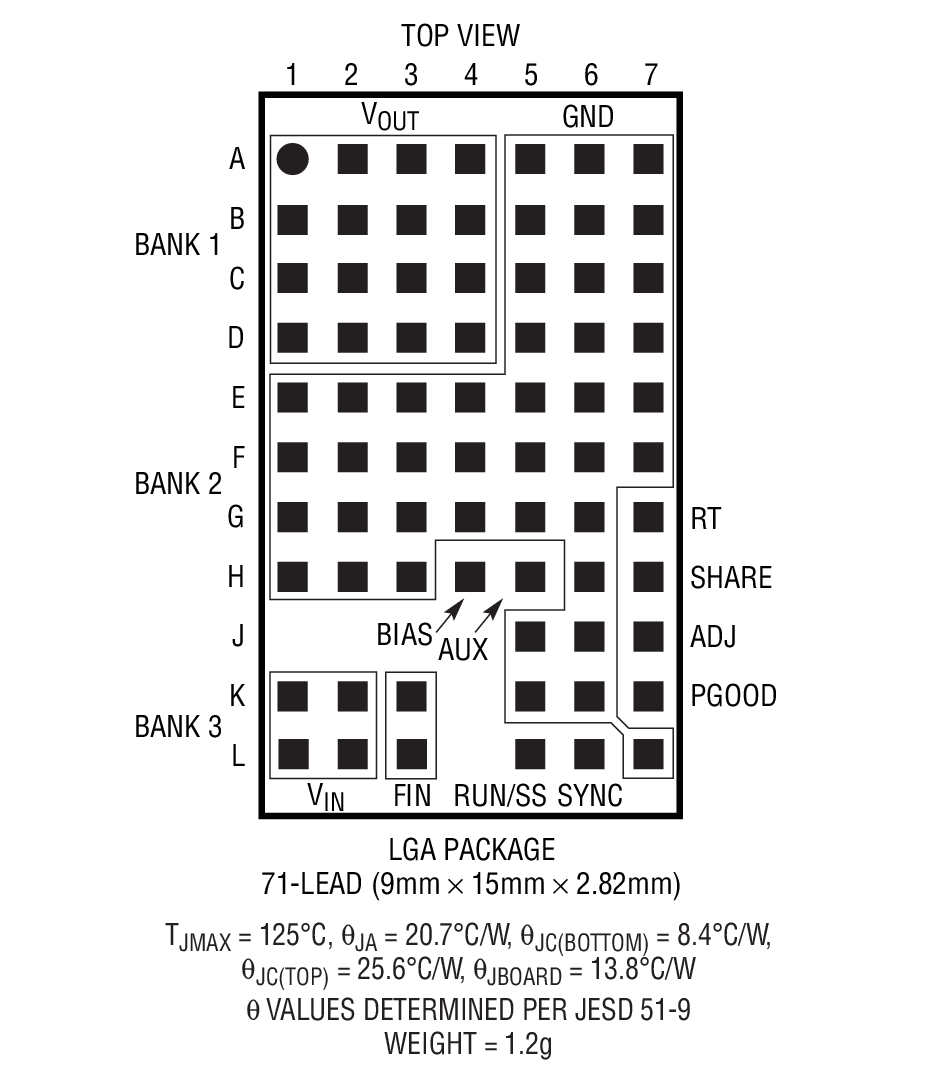

Ultralow Noise 5V/1A DC/DC µModule Regulator LTM8031 EMI Performance Product Package 1
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 2

User Guide 1

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Hardware Ecosystem

Parts Product Life Cycle Description
Circuit Monitors 1
LTC2960
RECOMMENDED FOR NEW DESIGNS 36V Nano-Current Two-Input Voltage Monitor
Oscillators 1
LTC6909
PRODUCTION 1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation
Power System Managers & Sequencers 1
LTC2974
RECOMMENDED FOR NEW DESIGNS 4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 1
LTC4364
RECOMMENDED FOR NEW DESIGNS Surge Stopper with Ideal Diode
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

  • LTM8031
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5

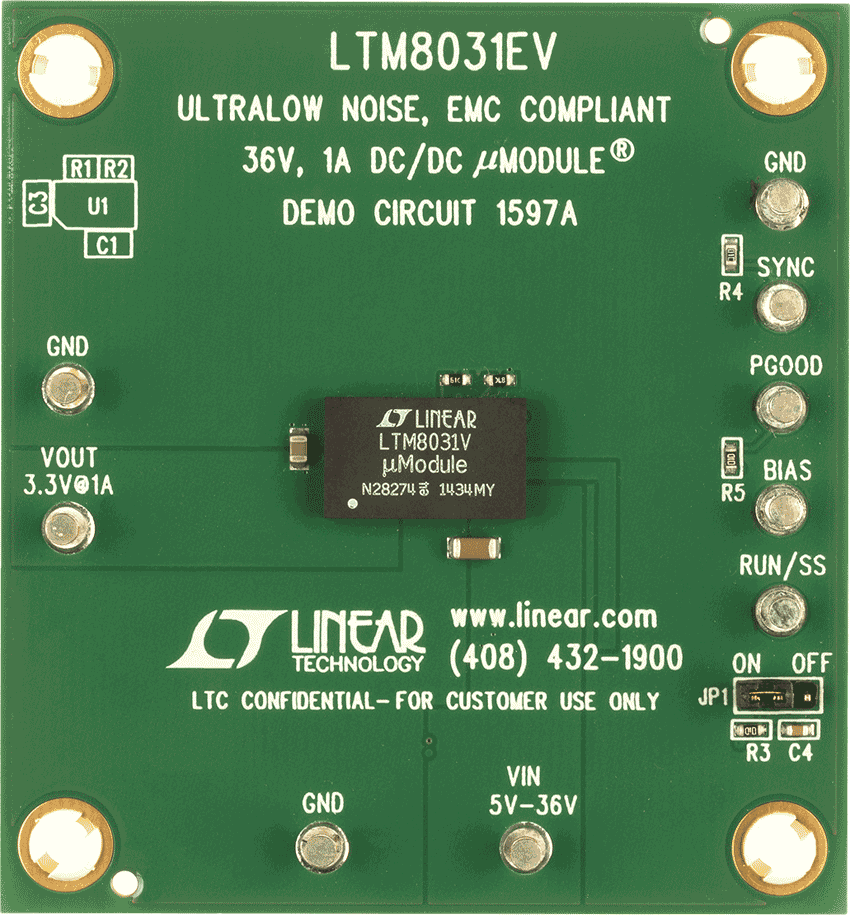

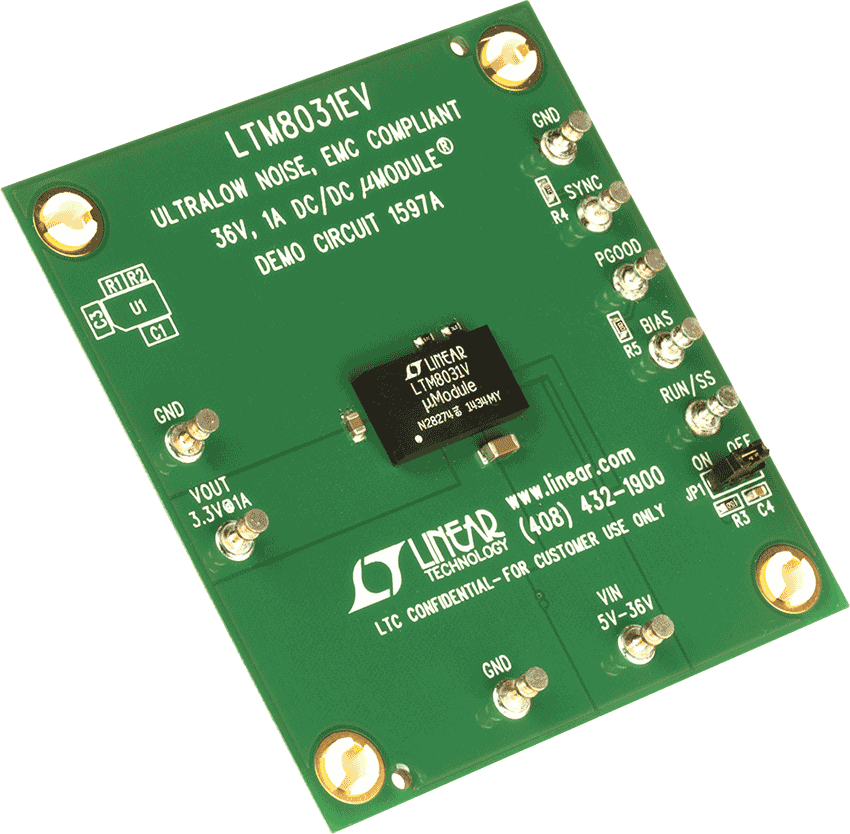

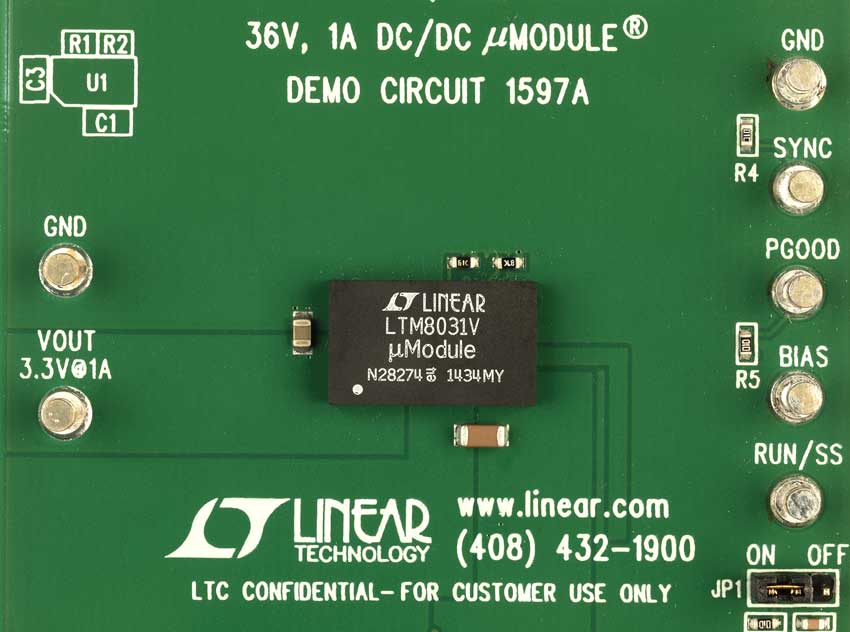

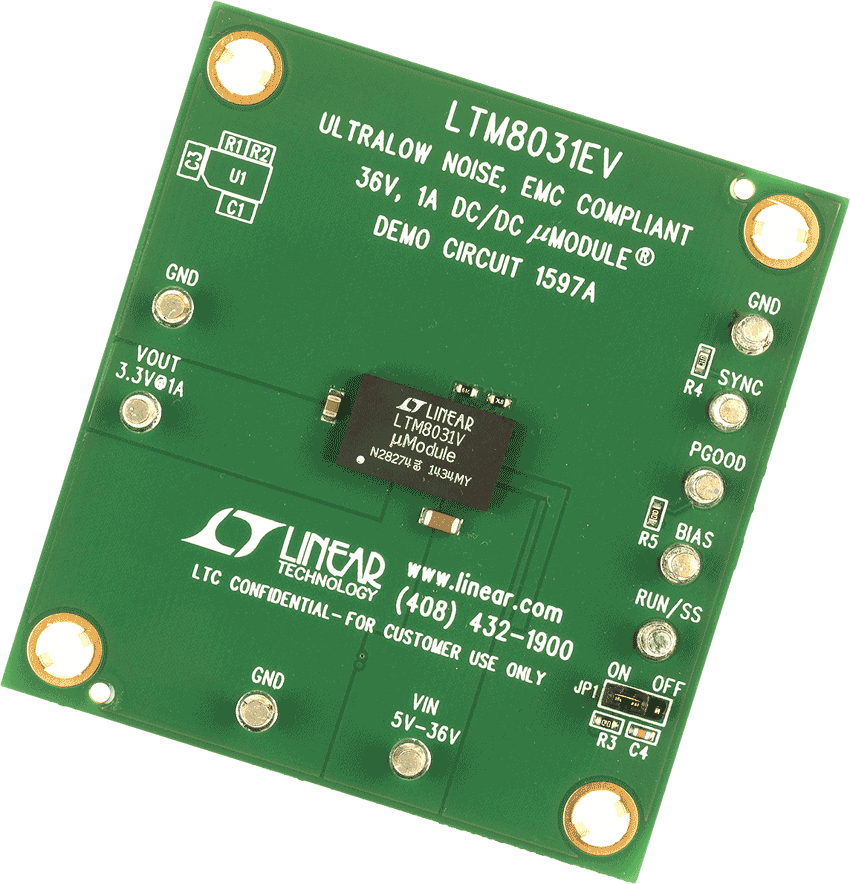

DC1597A

LTM8031EV Demo Board | Ultralow EMI 36V, 1A µModule Regulator

Buy Now View Details

Product Details

Demonstration circuit DC1597A features the LTM8031, a step-down converter certified to meet the EN55022 radiated emissions standard. The LTM8031 is configured to deliver a 3.3V output from a 5V to 36V input with a 750kHz operating frequency. The wide input range supports a variety of input sources, such as automotive batteries, wall adaptors and industrial supplies. Under light load conditions, the LTM8031 enters Burst Mode® operation to deliver high efficiency over a broad current range and maintain low output ripple.
DC1597A
LTM8031EV Demo Board | Ultralow EMI 36V, 1A µModule Regulator

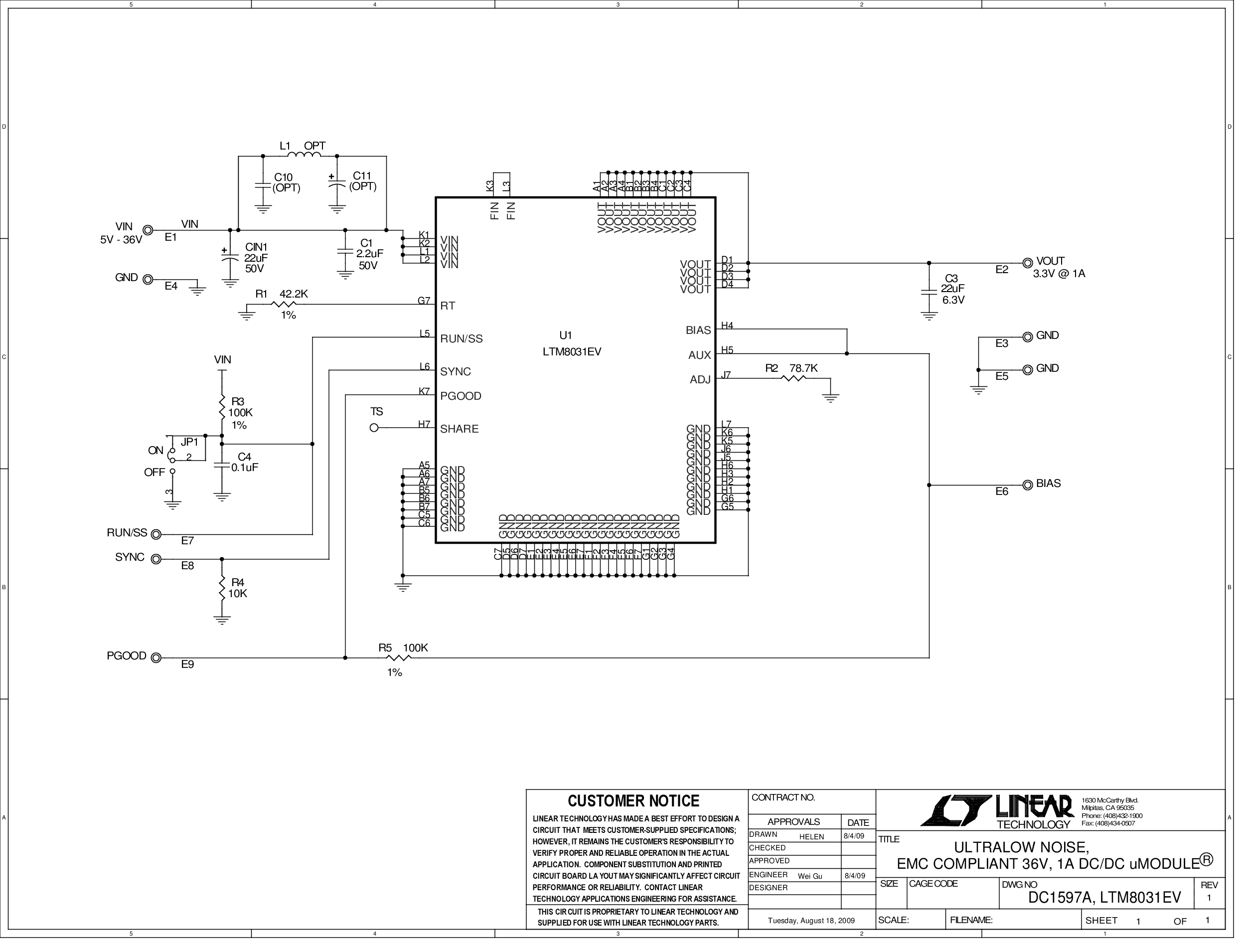

DC1597A Demo Board DC1597A Demo Board DC1597A Demo Board DC1597A Demo Board DC1597A - Schematic
