Features & Benefits

  • Stratix® 10 GX/SX FPGA. FPGA Fabric Speed Grade: -2/ XCVR Speed Grade : -1
  • Full-height, 3/4-length form-factor package
  • Allows ultra-low-latency, straight connections to 4 external 100G QSFP28 modules
  • High-speed parallel Flash memory
  • PCIe Gen3 x16
  • With 2x5 timing expansion header for 1pps or other high precision clock inputs
  • 4 independent banks of DDR4 SO-DIMM sockets with error correction code (ECC), up to 8GB@1200MHz for each socket (paired flexibly with Terasic’s 576-Mbit QDR-II+ or 144-Mbit QDR-IV modules)

Parts Used

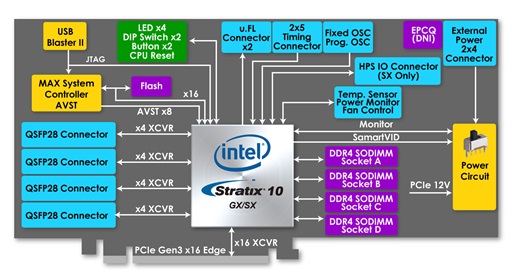

Circuit Description

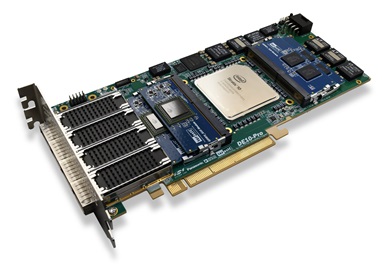

Terasic’s DE10-PRO is purpose-built for acceleration and high-speed connectivity applications to address the demands of the next-generation high-performance systems.

The board itself takes advantage of the latest Intel® Stratix® 10 to obtain speed and power breakthrough (with up to 70% lower power). Also, armed with 32GB DDR4 memory module running at over 150 Gbps, up to 15.754 GB/s data transfer via PCIe Gen 3 x16 edge between FPGA and host PC, and 4 on-board QSFP28 connectors, the board delivers more than 2X the performance of previous generation acceleration cards.

The DE10-PRO fully supports Intel Open VINO™ toolkit to provide optimal Computer Vision and Deep Learning solutions. Our clients' systems can achieve highest computing performance and lowest cost for their AI applications by leveraging the Stratix® 10 FPGA on DE10-PRO.

Applications

  • Data Center
  • AI and Deep Learning
  • 5G
  • High Performance Computing
  • Test and Instrumentation
  • FinTech
  • Military and Aerospace

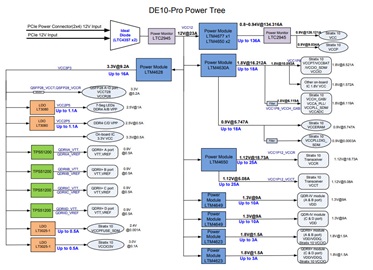

Rail/Function
 Part Number(s) Description
FPGA Core LTM4677
LTM4650 x2		 136A @ 0.9V µModule regulator interfaces with Stratix 10 SmartVID
High speed transceivers LTM4650 50A µModule regulator
Power UP/DOWN sequencing LTC2924 Quad Power Supply Sequencer
PowerPath™ management LTC4357 x2 Positive High Voltage Ideal Diode Controller
Power Monitors, monitor 12V/FPGA core power voltage/current LTC2945 x2 Wide Range I2C Power Monitor
Stratix 10 1.8V and 0.9V power LTM4630A Dual 18A or Single 36A DC/DC µModule Regulator
Power for Memory devices(DDR4/QDRII/QDR-IV) LTM4649 x2 10A Step-Down DC/DC µModule Regulator
Power for Stratix 10 VCCIO corresponding to memory LTM4623 x2 Ultrathin 20VIN, 3A Step-Down DC/DC µModule Regulator
3.3V intermediate bus from 12VIN LTM4628 Dual 8A or Single 16A DC/DC µModule Regulator
Stratix 10 3V VCCIO/ fuse block writing power LT3025-1 x2 500mA Micropower VLDO Linear Regulators
DDR4 activating power LT3080 x2 Adjustable1.1A Single Resistor Low Dropout Regulator
Used to implement LTM4677+LTM4650x2 power solution LT1801 Dual/Quad 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps
Provide1.25V accurate reference source (+/- 0.2%) for Stratix 10 VREFP_ADC pin LT6654AIS6-1.25 Precision Wide Supply High Output Drive Low Noise Reference
Provide stable 12V power for active heatsink LT8330 Low IQBoost/SEPIC/Inverting Converter with 1A, 60V Switch
