LTC2924

RECOMMENDED FOR NEW DESIGNS

Quad Power Supply Sequencer

Data Sheet

Part Models: 4
1ku List Price: Starting From $3.51

Viewing:

Part Details

Fully Sequence and Monitor Four Supplies

Six with Minimal External Circuitry

Cascadable for Additional Supplies
Power Off in Reverse Order or Simultaneously
Charge Pump Drives External MOSFETs
Drives Power Supply Shutdown Pins with No External Pull-Up Resistors
10µA Output Current Allows Soft-Starting of Supplies
Done Indicator for Both Power On and Power Off
Adjustable Time Delay Between Power Supplies
Power Good Timer
Power Supply Voltage Monitoring and Power Sequence Error Detection and Reporting

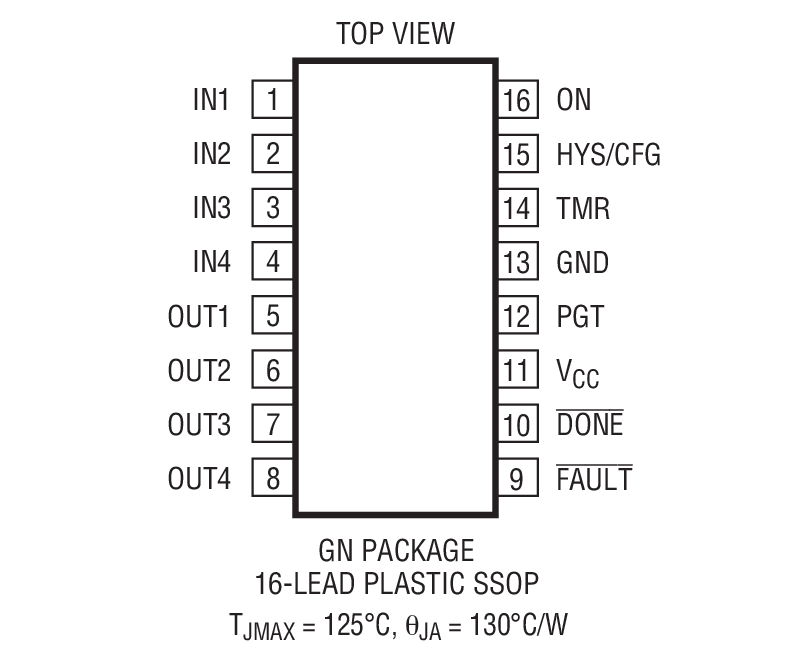

Available in a 16-Lead Narrow SSOP Package

Part Models: 4
1ku List Price: Starting From $3.51

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2924CGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2924CGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2924IGN#PBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC2924IGN#TRPBF	16-Lead SSOP (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0235 Epoxy Change from Henkel 8290 to 8290A for GN Package
		PCN22_0235_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC2924CGN#PBF	PRODUCTION
LTC2924CGN#TRPBF	PRODUCTION
LTC2924IGN#PBF	PRODUCTION
LTC2924IGN#TRPBF	PRODUCTION
Apr 6, 2022 - 22_0066 Laser Top Mark for 16QSOP Assembled in ADPG [PNG]
		PCN22_0066_Form Material_Report Delta Qualification Matrix
LTC2924CGN#PBF	PRODUCTION
LTC2924CGN#TRPBF	PRODUCTION
LTC2924IGN#PBF	PRODUCTION
LTC2924IGN#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Power System Managers & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Tools & Simulations

LTspice 1

LTC2924 - Supply Sequencers

Models for the following parts are available in LTspice:

LTC2924

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC2924 Quad Supply Sequencer

Buy Now View Details

Product Details

DC818A: Demo Board for the LTC2924 Quad Power Supply Sequencer.

Resources

DC818A - Demo Manual
9/24/2009

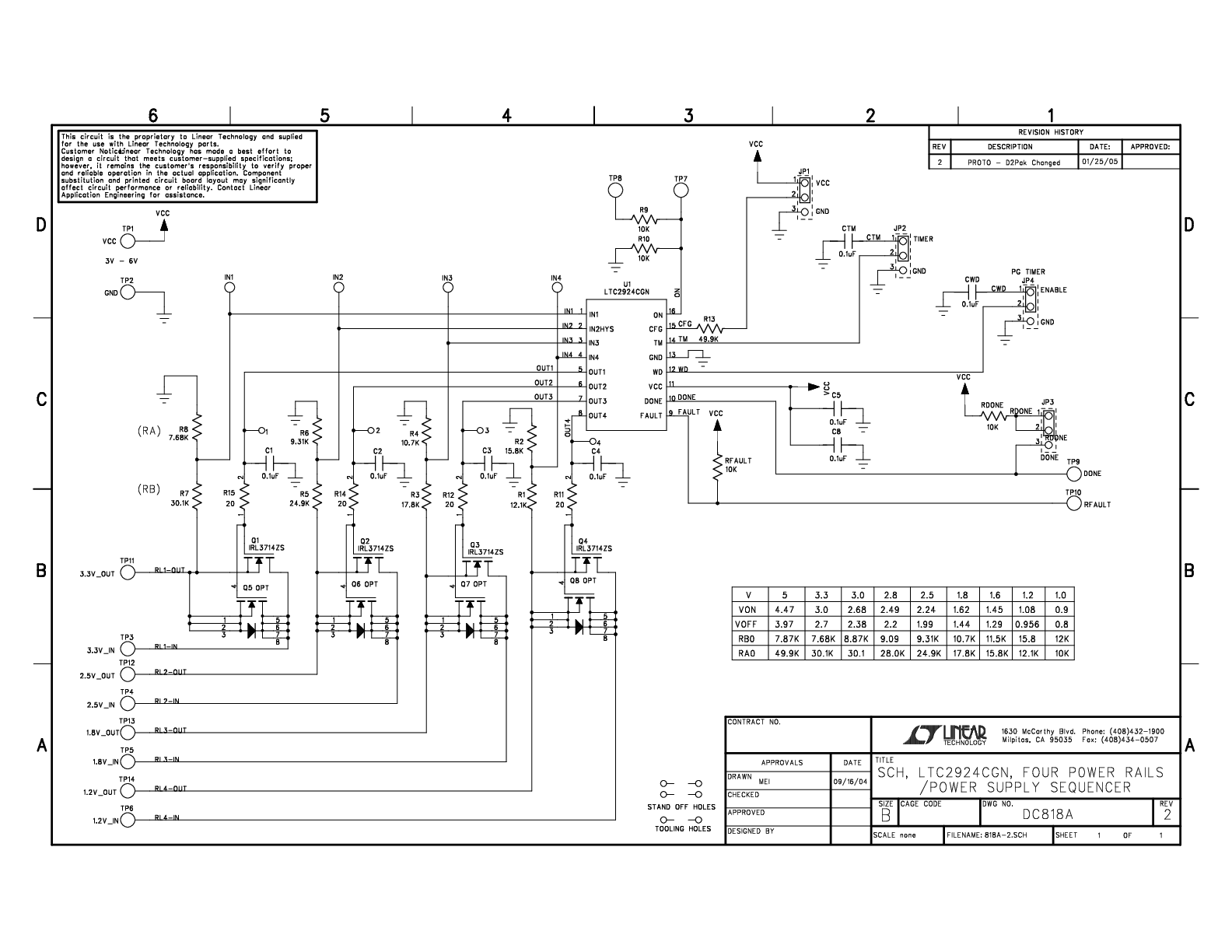

DC818A - Schematic
9/24/2009

DC818A - Design File
9/24/2009
