ADUM4195
预发布Isolated Amplifier with Adjustable Gain and Single-Ended Output
- 产品模型
- 4
产品详情
- High-Impedance input for isolated voltage measurement
- Low offset error and drift (output offset voltage): ±6 mV (Max) at 25°C and −22 μV/°C (Typ)
- Low gain error and drift: ±0.5% (max) and ±27 ppm/°C (max)
- Voltage-supply range
- VDD1: 4.5 V to 5.5 V
- VDD2: 4.5 V to 5.5 V
- Bandwidth: 210 kHz
- Isolation voltage
- 3000 V rms for ADuM3195
- 5000 V rms for ADuM4195
- Safety and regulatory approvals (pending)
- UL recognition (pending)
- ADuM3195: 3000 V rms for 1 minute per UL 1577
- ADuM4195: 5000 V rms for 1 minute per UL 1577
- UL recognition (pending)
- CSA (pending)
- VDE certificate of conformity (pending)
- DIN EN IEC 60747-17
- ADuM3195: VIORM = 849 V peak (reinforced)
- ADuM4195: VIORM = 1401 V peak (reinforced)
- Wide temperature range
- −40°C to +125°C ambient operation
- 150°C maximum junction temperature
- AEC-Q100 qualified for automotive applications

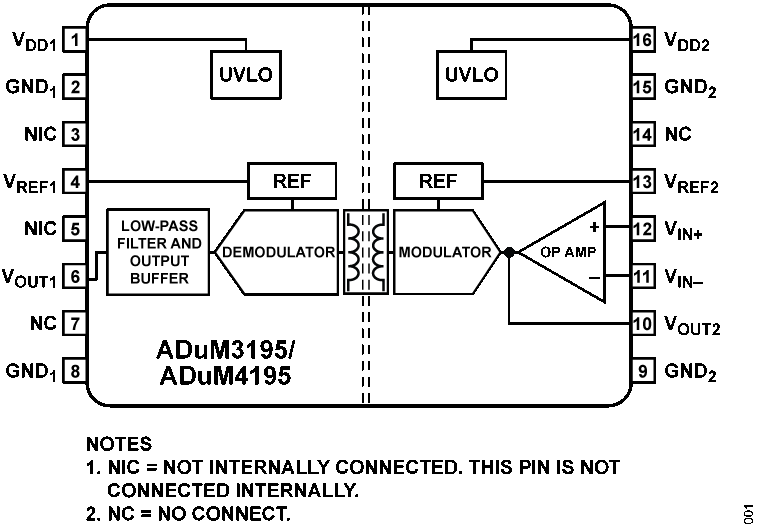

The ADuM3195/ADuM41951 are isolation amplifiers based on Analog Devices, Inc., iCoupler® technology. The ADuM3195/ADuM4195 have very low offset and gain error, making them ideal for many isolated voltage sensing applications.
Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADuM3195/ ADuM4195 transfer functions do not change over lifetime, and are stable over a wide temperature range of −40°C to +125°C.
Included in the ADuM3195/ADuM4195 are wideband operational amplifiers useful for a variety of commonly used applications, and two high accuracy 2.5 V references outputs.
The ADuM3195 is packaged in a 16-lead quarter small outline package (QSOP) for a 3000 V rms isolation voltage rating according to UL1577. The ADuM4195 is packaged in a 16-lead wide-body SOIC package with increased creepage for a 5000 V rms isolation voltage rating according to UL1577.
APPLICATIONS
- Inverters
- DC to DC converters
- On-board chargers
Protected by U.S. Patents 5,952,849, 6,873,065 and 7,075,329. Other patents pending.
参考资料
数据手册 1
用户手册 1
安全和法规认证 1
安全和法规认证 1
在线研讨会 1
模拟对话 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADUM4195BRIZ | 16-Lead SOIC (Increased Creepage) | ||
| ADUM4195BRIZ-RL | 16-Lead SOIC (Increased Creepage) | ||
| ADUM4195WBRIZ | 16-Lead SOIC (Increased Creepage) | ||
| ADUM4195WBRIZ-RL | 16-Lead SOIC (Increased Creepage) |
这是最新版本的数据手册
软件资源
找不到您所需的软件或驱动?
申请驱动/软件评估套件

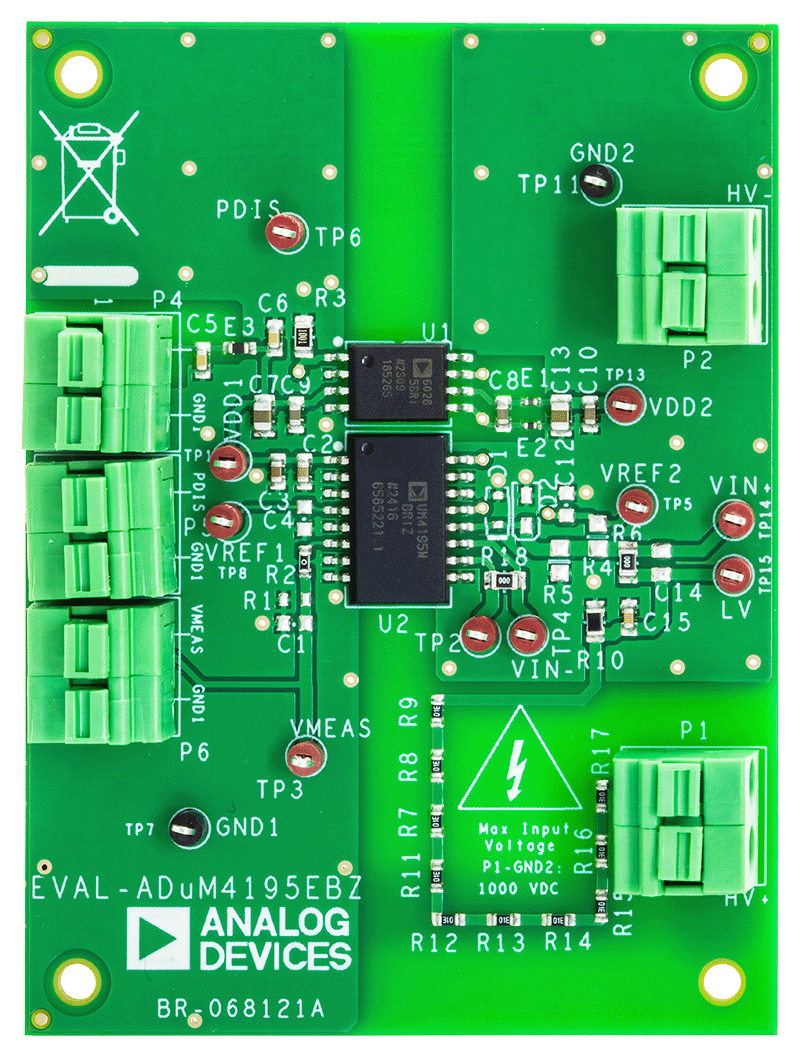

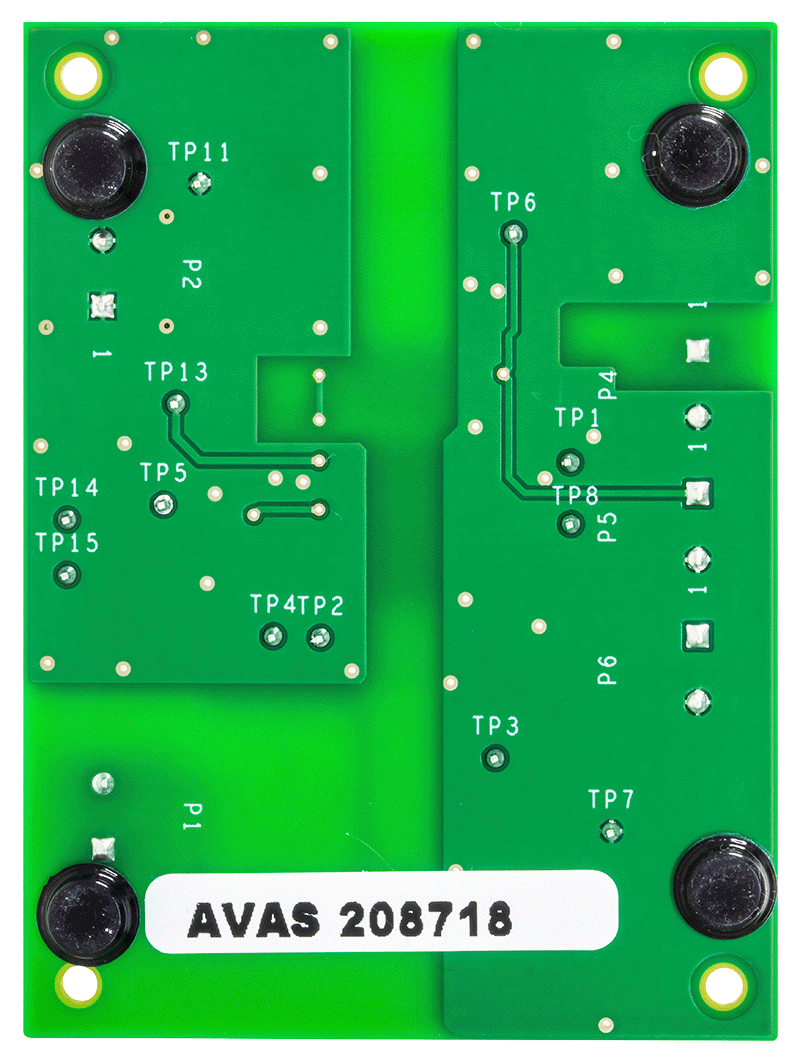

评估具有可调增益和单端输出的 ADuM4195 隔离放大器
