LT3010
LT3010-5

推荐新设计使用

50mA、3V 至 80V 低压差微功率稳压器

数据手册 (Rev. G)
产品模型
20
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • 宽输入电压范围：3V 至 80V
  • 低静态电流：30μA
  • 低压差：300mV
  • 输出电流：50mA
  • 耐热增强型 8 引脚 MSOP 封装
  • 无需保护二极管
  • 固定输出电压：5V (LT3010-5)
  • 可调输出范围：1.275V 至 60V (LT3010)
  • 在停机模式的静态电流为 1μA
  • 采用 1μF 输出电容器可稳定
  • 采用铝电容器、钽电容器或陶瓷电容器可稳定
  • 反向电池保护
  • 没有来自输出的反向电流
  • 热限制
  • 符合AEC-Q100的汽车应用要求
LT3010
LT3010-5
50mA、3V 至 80V 低压差微功率稳压器

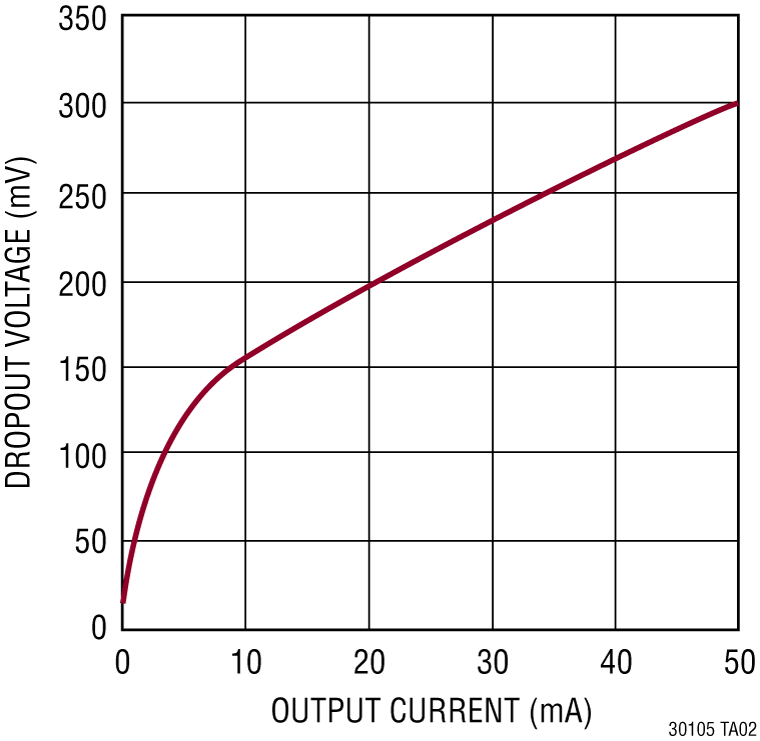

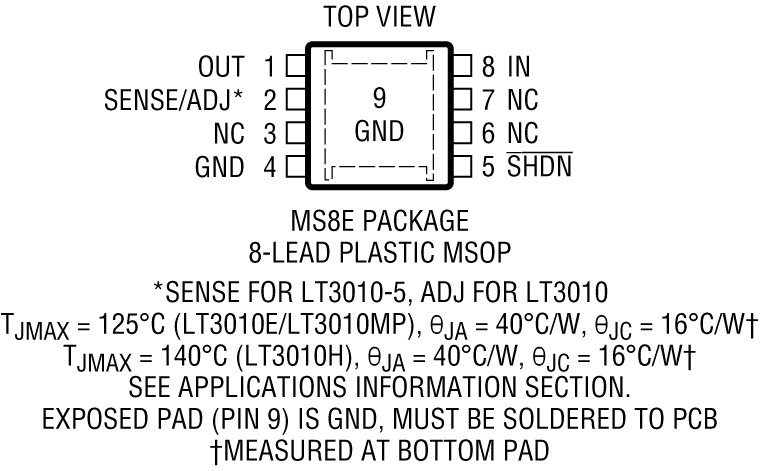

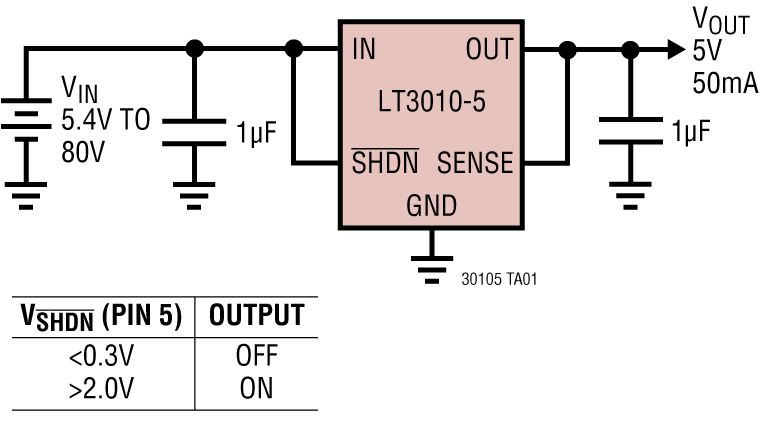

LT3010/LT3010-5 Application Circuit LT3010/LT3010-5 Pin Configuration LT3010/LT3010-5 Performance Graph
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 1

设计笔记 1

技术文章 4

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

硬件生态系统

部分模型 产品周期 描述
Linear Regulators 1
LT3011
推荐新设计使用 具 PWRGD 的 50mA、3V 至 80V 低压差微功率线性稳压器
Protection Switches & Controllers 2
LT4363
推荐新设计使用 具电流限制功能的高电压浪涌抑制器
LTC4364
推荐新设计使用 具理想二极管的浪涌抑制器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 5

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC650A

LT3010EMS8E Demo Board | Micropower Linear Regulator, 3V ≤ VIN ≤ 80V, VOUT = 3.3V/5V/Adjustable @ 50mA

立即购买 更多内容

产品详情

Demonstration circuit 650 is a high voltage micropower voltage regulator using the LT3010 low dropout linear regulator, which comes in a small 8-pin MS8 package. DC650 has an input voltage range from 3V to 80V. The circuit is capable of delivering up to 50mA of output current. The output voltage is jumper-selectable and can be set to 3.3V, 5V or a user-determined value between 1.22V and 60V.
DC650A
LT3010EMS8E Demo Board | Micropower Linear Regulator, 3V ≤ VIN ≤ 80V, VOUT = 3.3V/5V/Adjustable @ 50mA

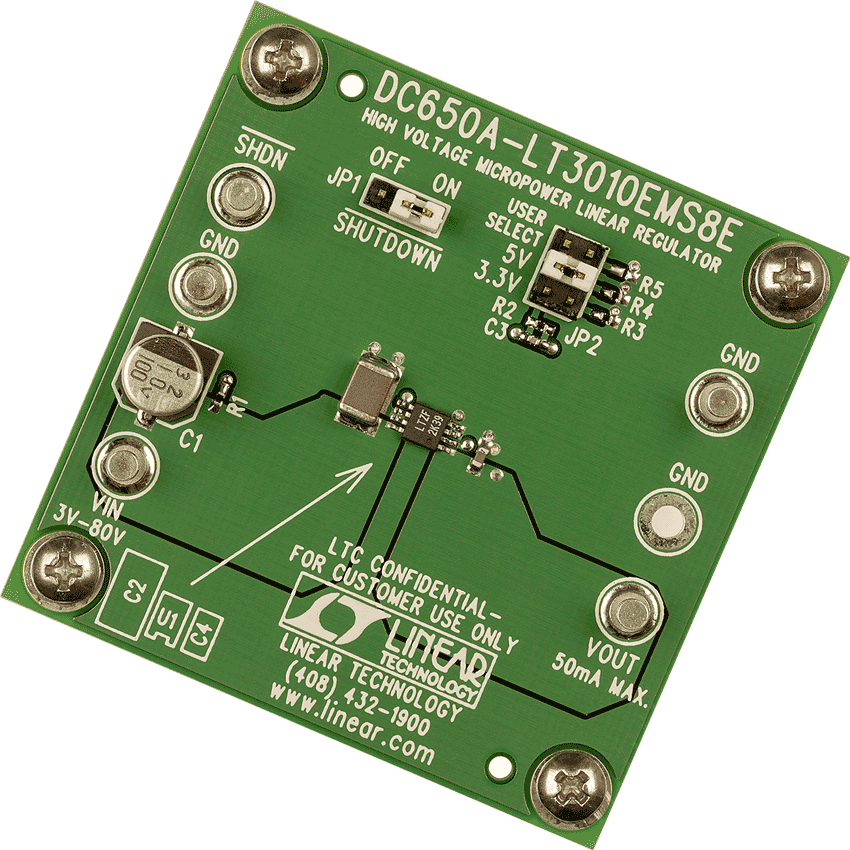

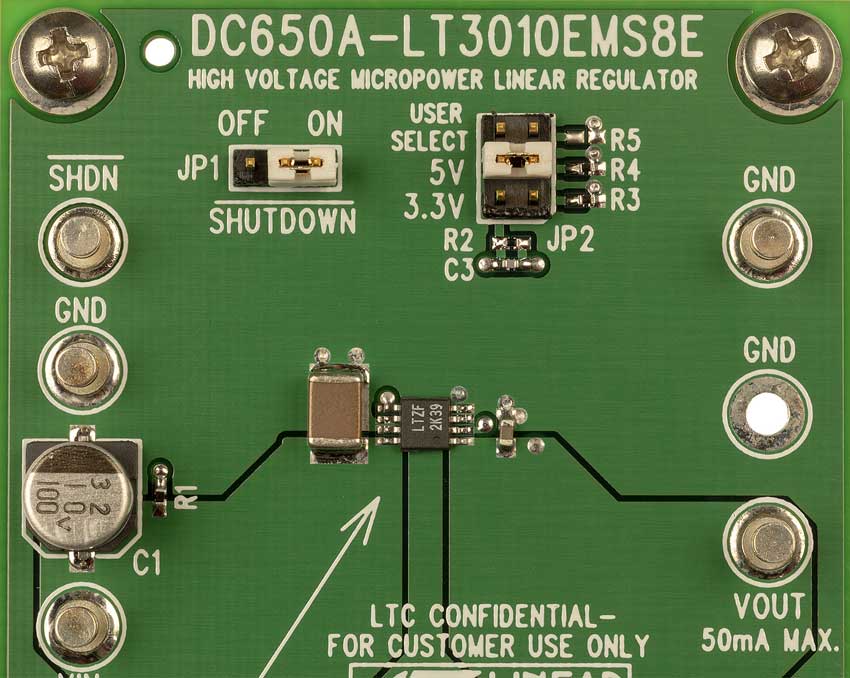

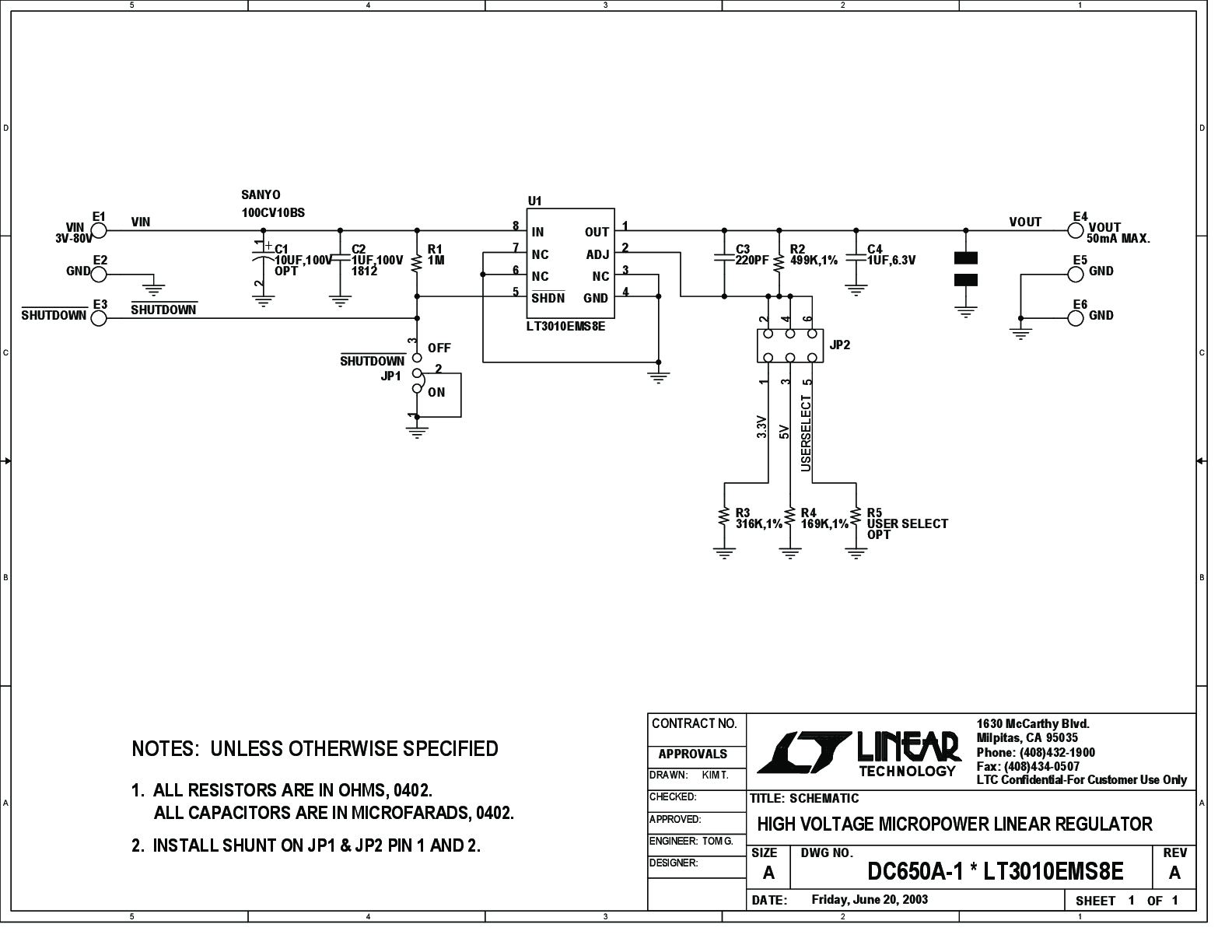

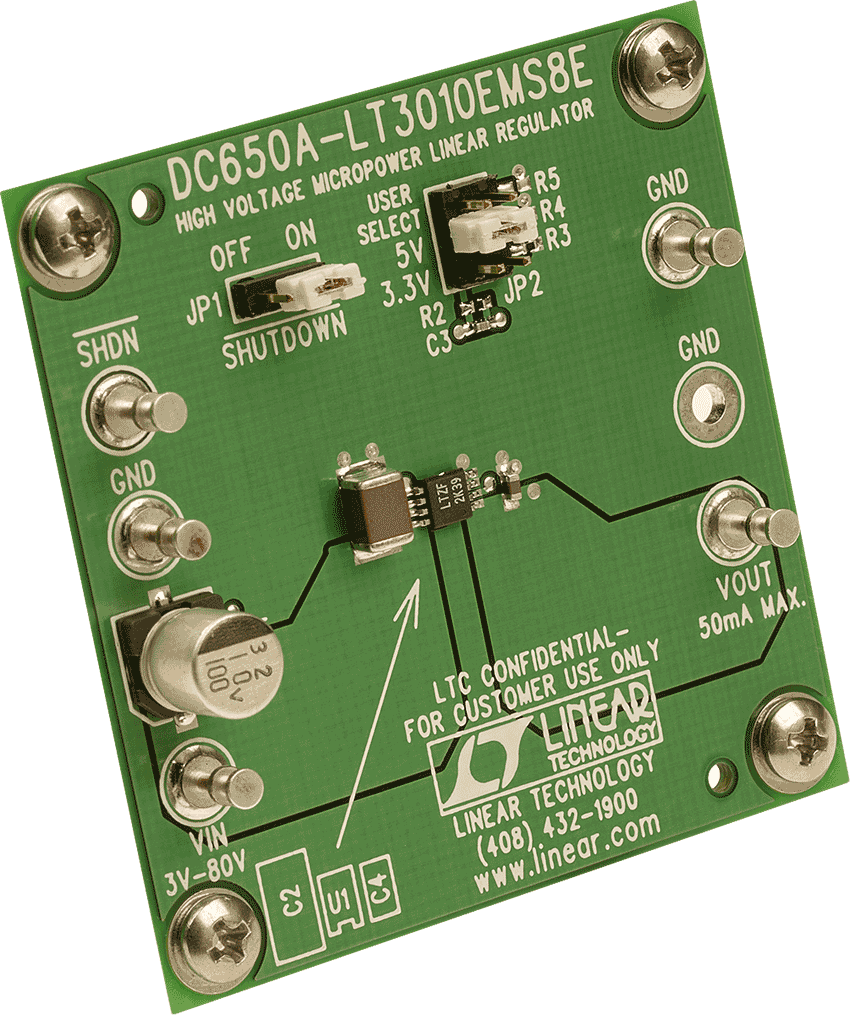

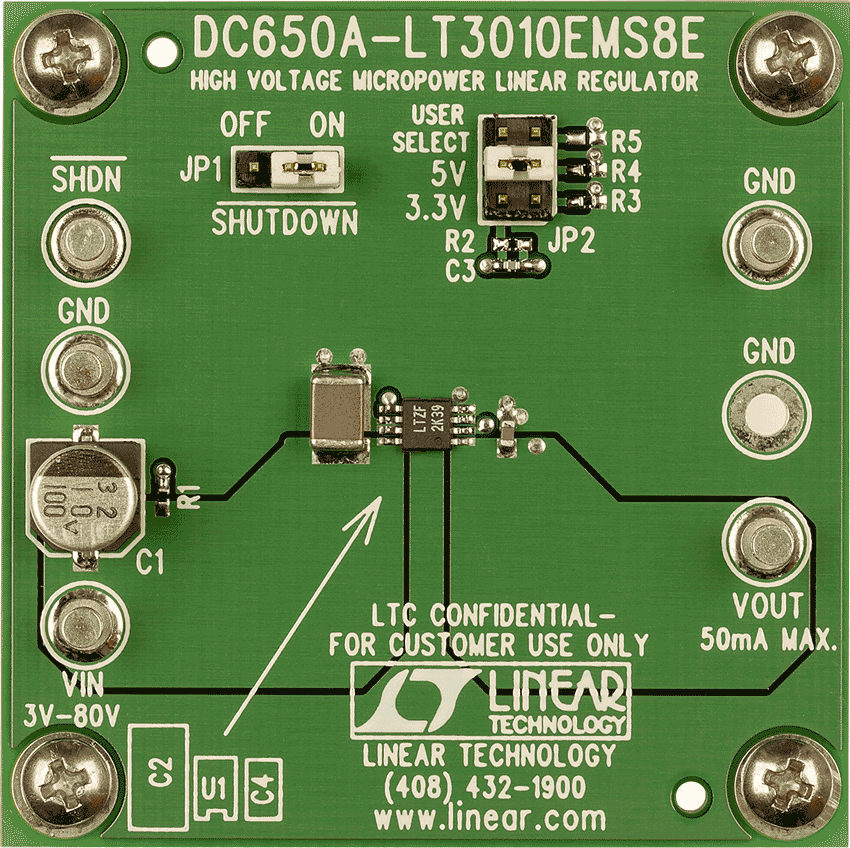

DC650A Demo Board DC650A Demo Board DC650A Demo Board DC650A Demo Board DC650A - Schematic

参考电路

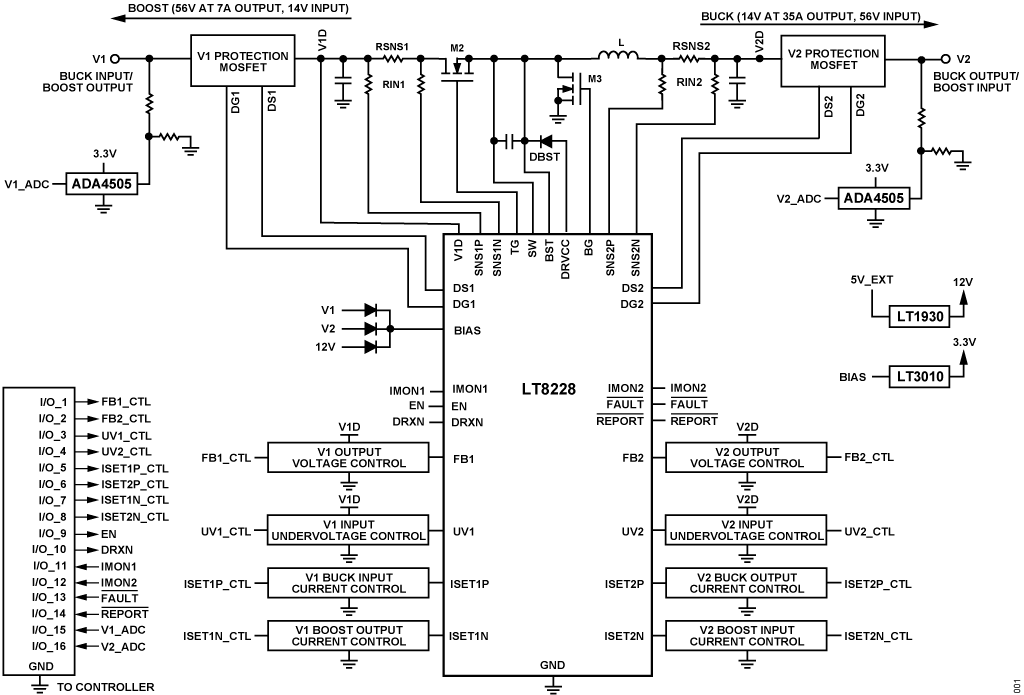

Figure 1. CN0556 Simplified Block Diagram
Figure 1. CN0556 Simplified Block Diagram

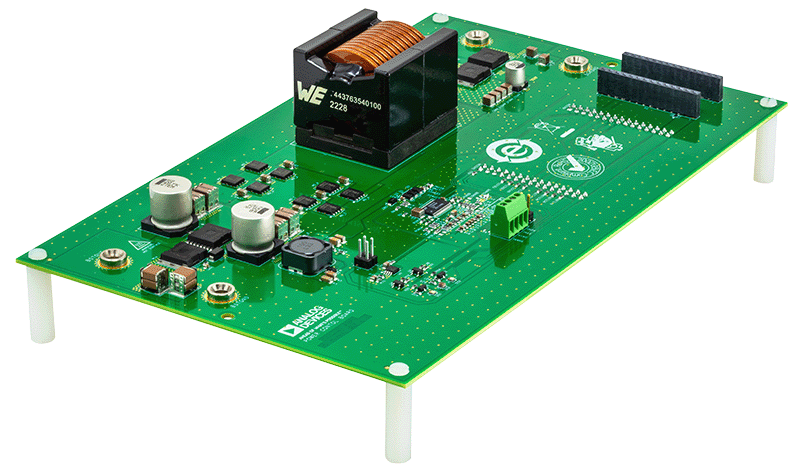

EVAL-CN0556-EBZ Evaluation Board - Angle View

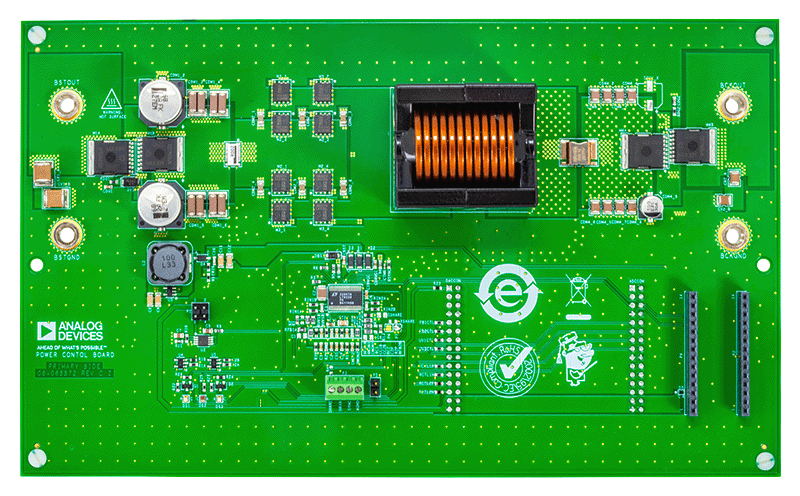

EVAL-CN0556-EBZ Evaluation Board - Top View

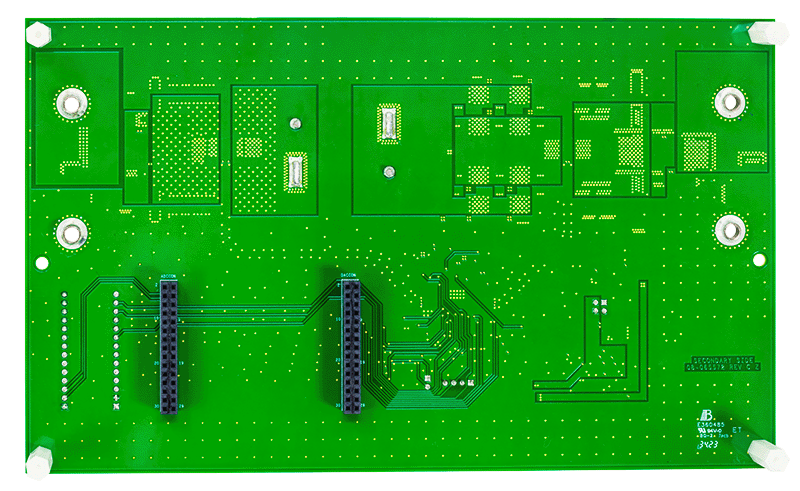

EVAL-CN0556-EBZ Evaluation Board - Bottom View
CN0556 参考设计

Programmable High Current and Voltage Source/Sink Power Supply

查看参考设计详情

特性和优点

  • High Efficiency Buck or Boost DC-DC Converter
  • 14 V to 56 V Buck Input Voltage and 8 V to 14 V Boost Input Voltage
  • Fully Programmable Bidirectional Control and Monitoring
  • Seamless Buck-to-Boost Transition and Vice Versa
  • Buck Mode: 35 A Maximum Output Current
  • Boost Mode: 10 A Maximum Output Current
  • Undervoltage, Overvoltage, Overcurrent, and Reverse Current Protection
