预发布54V, 140A DC/DC μModule Regulator with PMBus Interface
- 产品模型
- 1
Viewing:
产品详情
- High Efficiency at High Frequency
- Up to 93.8% Efficiency at 813kHz, 54VIN to 3.3VOUT
- PMBus-Compliant I2C Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Internal EEPROM Fault Log Record
- Digitally Programmable Control Loop Program Voltage, Current Limits, Soft-Start/Soft- Stop, Frequency Synchronization and Phasing, Power-Good, Warnings, and Faults
- Wide Input Voltage Range: 45V to 65V
- Output Voltage Range: 0.5V to 3.6V
- Optimized for 45V to 65VIN to 3.3VOUT
- ±0.5% Maximum DC Output Error with Differential Remote Voltage Sense
- ±3% Current Readback Accuracy
- Parallel and Current Share Multiple μModule ICs
- 22mm × 24mm × 22mm Surface-Mounted Package

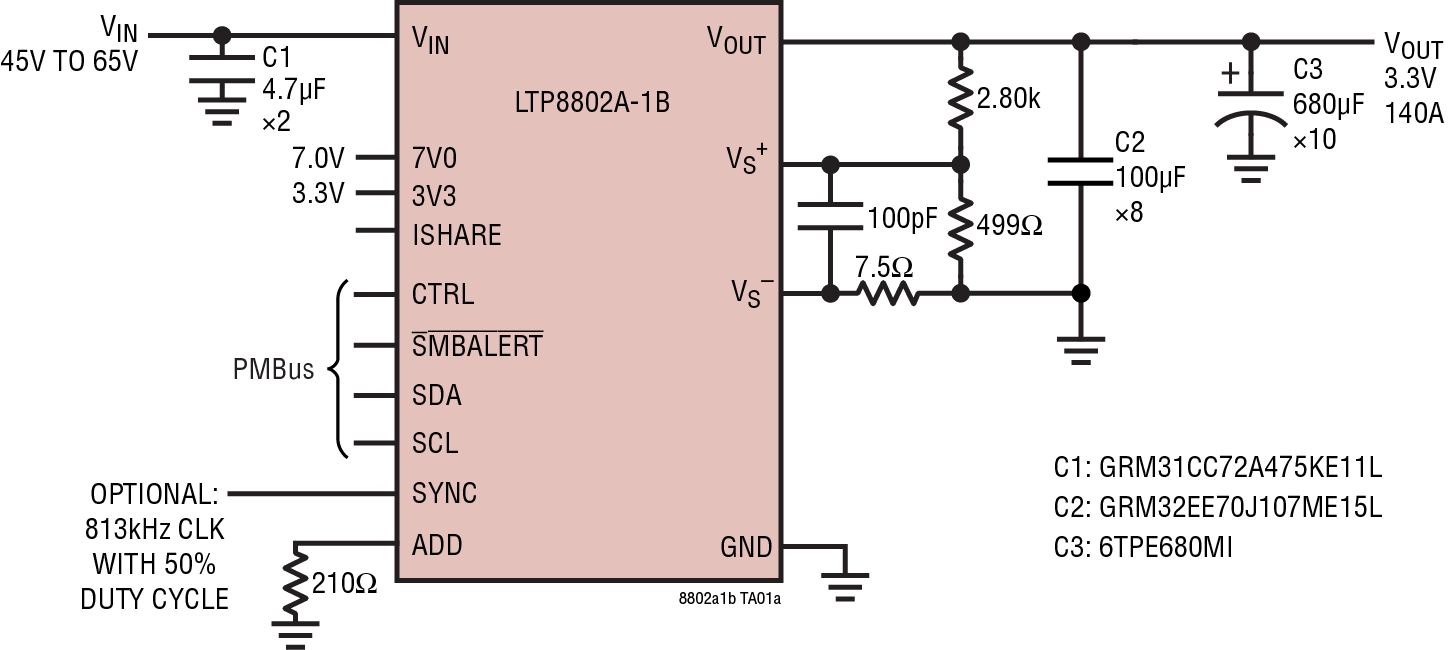

The LTP®8802A-1B is a 140A step-down μModule® (micromodule) regulator that provides microprocessor core voltage from a 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus, an open standard I2C-based digital interface protocol.
The LTP8802A-1B is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density.
The LTP8802A-1B preserves high efficiency at high conversion ratios by utilizing a quasi-resonant architecture that reduces high voltage switching losses. The LTP8802A-1B is available in a 22mm × 24mm × 22mm surface-mounted open frame package.
APPLICATIONS
- High Current Distributed Power Systems
- Servers, Network, and Storage Equipment
- Intelligent Energy Efficient Power Regulation
参考资料
数据手册 1
用户手册 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|

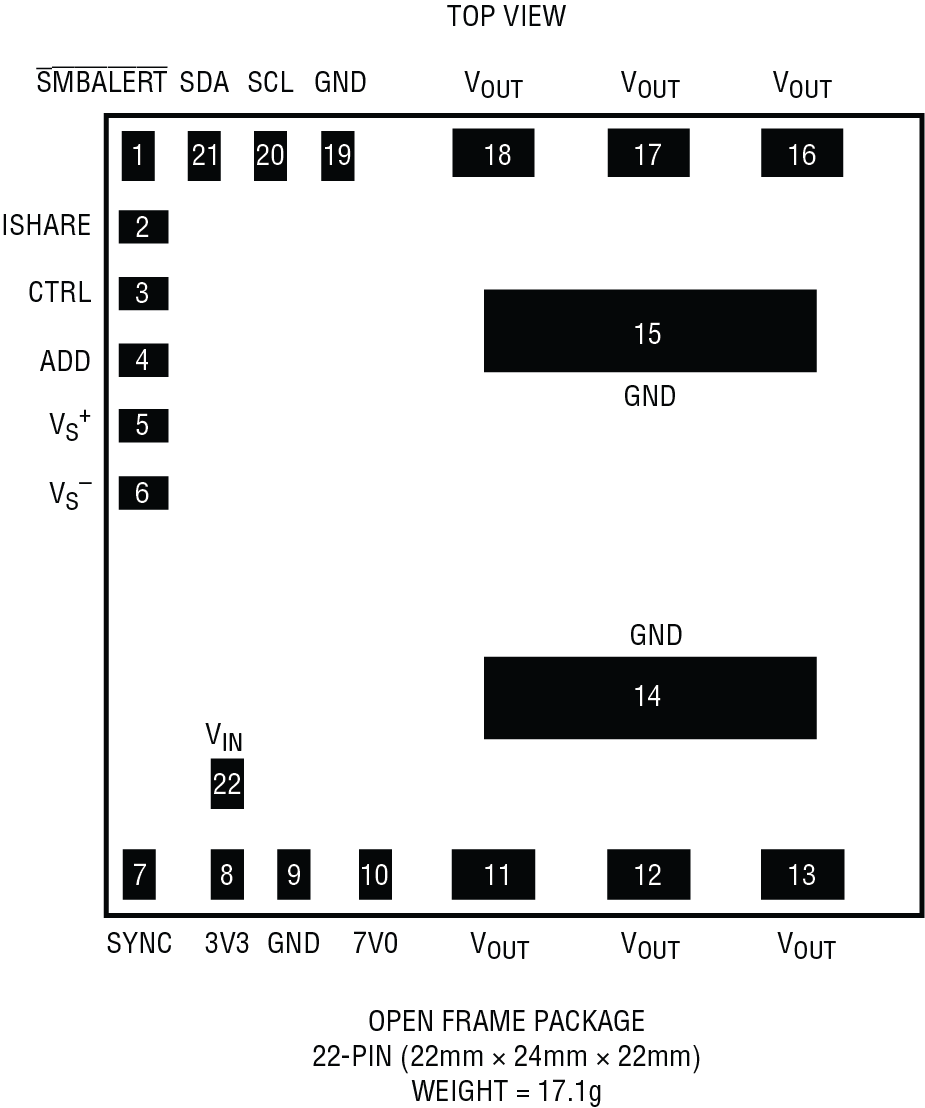

| LTP8802A-1BIPV#PBF | PCA Package 22-Lead (22mm × 24mm × 22mm) |
这是最新版本的数据手册
工具及仿真模型
LTpowerPlay®
LTpowerPlay®是一款功能强大且基于Windows的开发环境，支持凌力尔特的数字电源系统管理(PSM)产品。

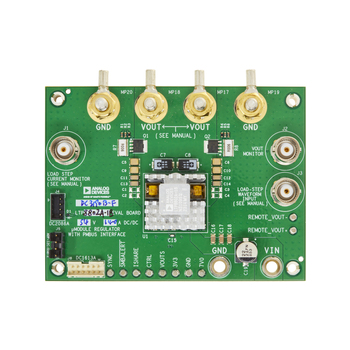

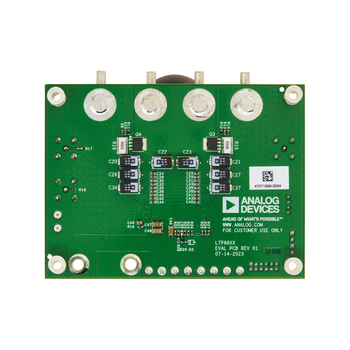

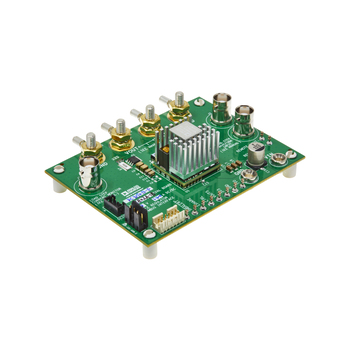

打开工具评估套件
LTP8802A-1B | 具有 PMBus 接口的 54V 输入、大电流 DC/DC 电源 μModule
