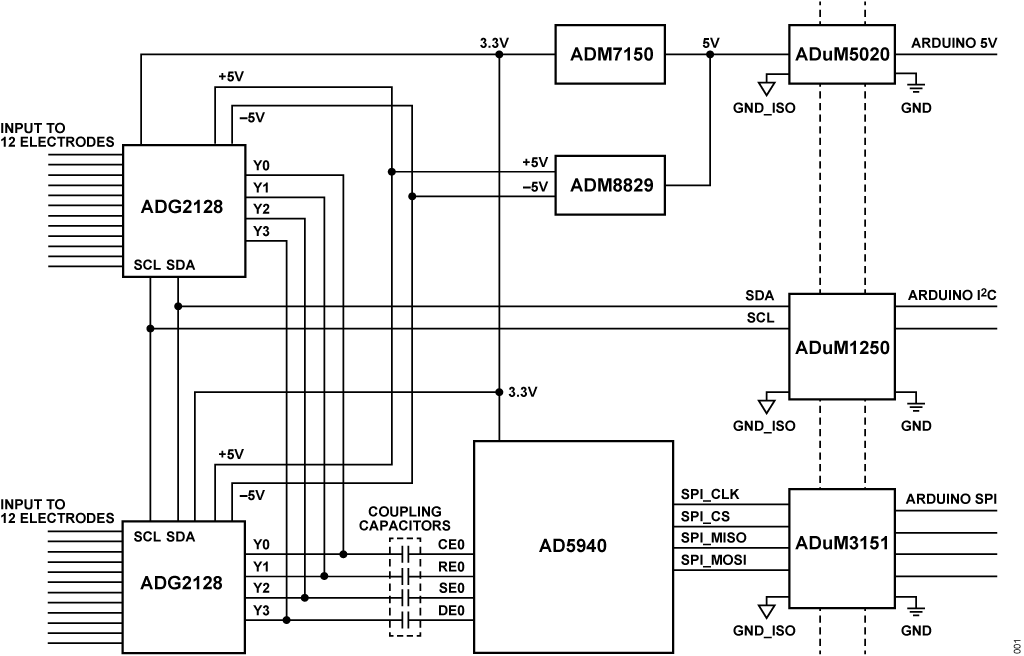

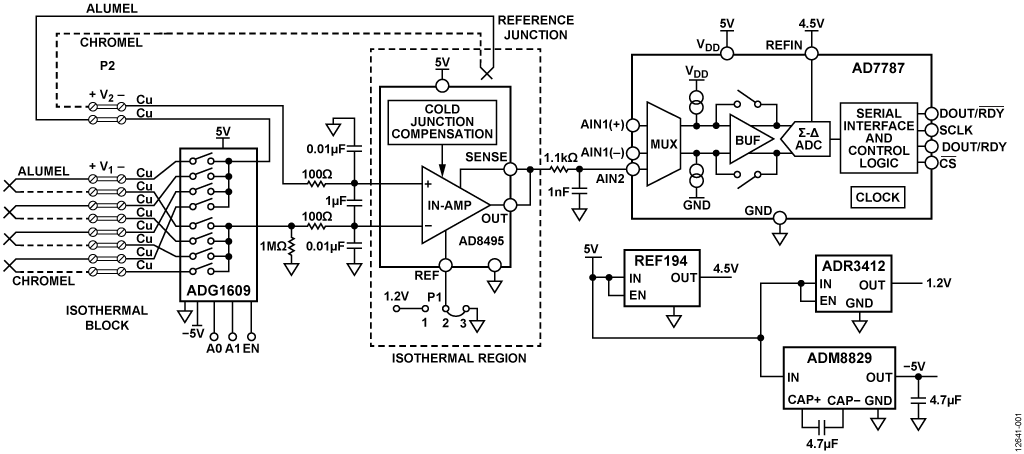

ADM8829

PRODUCTION

Switched Capacitor Voltage Inverter

Data Sheet (Rev. B)

Part Models: 2
1ku List Price: Starting From $1.22

Viewing:

Part Details

Inverts Input Supply Voltage
99% Voltage Conversion Efficiency
25 mA Output Current
Shutdown Function
Requires Only Two Capacitors

1 µF Capacitors
18 Ω Output Resistance
+1.5 V to +5.5 V Input Range
600 µA Quiescent Current

Part Models: 2
1ku List Price: Starting From $1.22

Documentation

Data Sheet 1

ADM8828/ADM8829: Switched-Capacitor Voltage Inverter With Shutdown Data Sheet (Rev.B) 07/31/1998

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

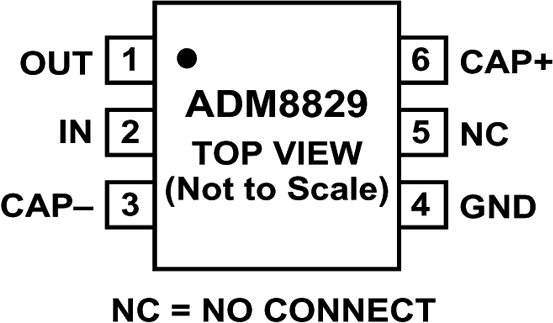

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM8829ARTZ-REEL	6-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
ADM8829ARTZ-REEL7	6-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 16, 2017 - 16_0291 CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages
		PCN16_0291_Form Material_Report Detailed Change Description Qualification Results Summary
ADM8829ARTZ-REEL	PRODUCTION
ADM8829ARTZ-REEL7	PRODUCTION
Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
ADM8829ARTZ-REEL	PRODUCTION
ADM8829ARTZ-REEL7	PRODUCTION
